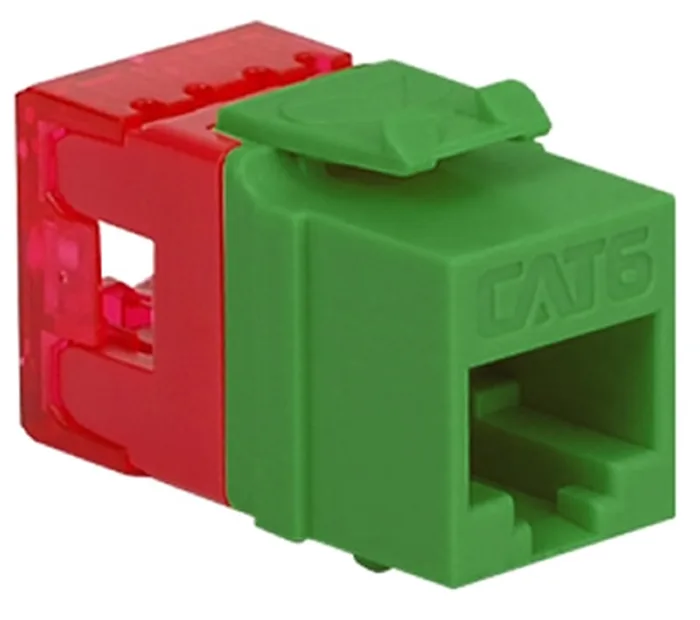

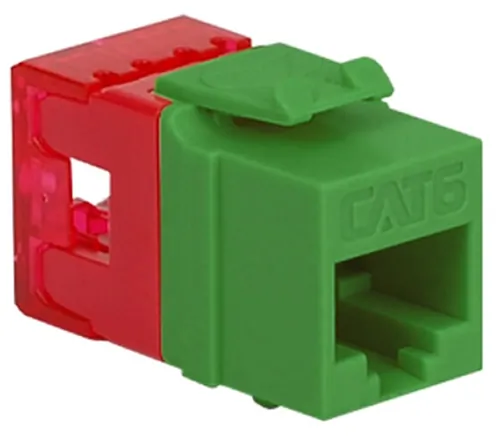

Cablesys ICC-IC1078F6GN Icc Module Cat 6 Hd Green
by Cablesys
| Price: | $17.12 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
ICCft. s Cat 6 High Density (HD) Category 6 modular connector RJ-45 keystone jack is 8-position 8-conductor (8P8C) and engineered to provide superior performance and reliability supporting Gigabit Ethernet applications and beyond. The advanced printed circuit board design is tuned to provide optimum signal quality with maximum headroom allowing it to exceed TIA/EIA Category 6 performance standards. It offers superior signal quality and noise reduction due to its enhanced Near-End and Far-End Crosstalk cancellation and minimum return losses. The HD design offers a smaller rear footprint maximizing space in confined work areas.
Specifications
- Green IC1078F6GN ICC HD Cat 6 Keystone Jack- CAT 6 rated connectors provide excellent performance for data networks requiring maximum speed and bandwidth
- PCB technology provides maximum performance and superior signal quality
- Reduced rear footprint allows for greater connectivity density and provides for more port configurations in a smaller area
- Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals
- Exceeds ANSI/TIA/EIA-568-B.2-1 Category 6 connecting hardware requirements
- Designed with in-line 110 IDC, in-sequence termination reducing termination time
- One piece termination cap allows for a quick and easy termination
- Includes an integrated TIA-568A/B color wiring diagram
- Backwards compatible to all lower rated category components
- Available in almond, black, blue, gray, green, ivory, orange, purple, red, white, and yellow
- Installation instructions included
- UL listed
