Copy Title

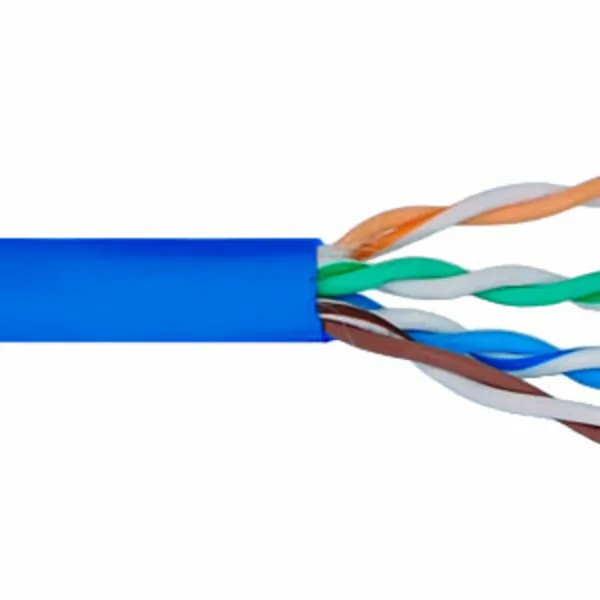

Cablesys ICC-ICCABR6VBL Icc Cmr Cat6 Utp 500 Mhz No Spline
by Cablesys
In Stock.
Ships from and sold by Aztek Computers.
Added On: Sep 1, 2022 | Updated On: Jun 8, 2023 | Views: 100
Technical InformationCable Type: Category 6Cable Characteristic: Patch CableCable Length: 1000 ftConnector on First End: Bare WireConnector on Second End: Bare WireFeatures: Flame RetardantConductor: CopperJacket Type: CMR, RiserDevice Supported: Network DevicePhysical CharacteristicsColor: BlueMaterial: Polyvinyl Chloride (PVC) - Jacket, Polyethylene - Insulation, PolyesterWeight (Approximate): 27.55 lbMiscellaneousCertifications & Standards: TIA 568-C.2 Category 6UL 444cULETLEnvironmentally Friendly: YesEnvironmental Certification: RoHS
Specifications
- C6 500 UTP SLD Cable 23G 4P CMR 1K Blue- 10 Base-T
- 100Base-T (IEEE 802.3u)
- 1000 Base-T
- High Definition Video
- Digital Broadcast Video/IP Video/VoIP
- ISDN/ADSL
- 155Mbps ATM
- Conductor: Solid Bare Copper
- Insulation: FRPE
- Jacket: FR-PVC
- Component: 4 twisted pair
- Insulation Dia. (in): 0.039
- Outer Dia. (in): 0.212"
- Sequential footage marking for easy usage tracking.
- Packaged in a pull box.
- Wired pairs are vividly colored for quick identification
- Temperature Rating (F)
- Installation temperature: 32 to 140 Fahrenheit (F)
- Operating temperature: -4 to 167 Fahrenheit (F)
