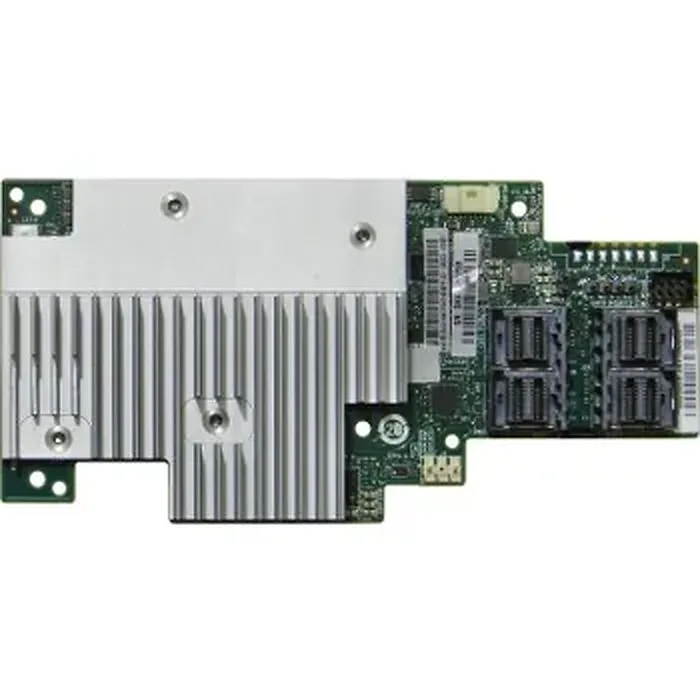

Intel RMSP3AD160F Controller Card Trimode Sassatapcie Raid Module Adapter With 16 Internal Ports Retail
by Intel
| Price: | $746.85 |
| MFG Part: | RMSP3AD160F |
| UPC: | 735858329149 |
| Condition: | New |
Currently Unavailable.
Ships from and sold by Aztek Computers.
Added On: Feb 9, 2023 | Updated On: Oct 10, 2025 | Views: 15
Intel RAID Module RMSP3AD160F is designed for use in content and web hosting appliances, security appliances, financial institutions, cloud service providers, and enterprise IT. Its mezzanine form factor is designed for the 2U Intel Server Board S2600WF product family to enable storage flexibility without using a PCIe* slot. It supports RAID levels 0/1/10/5/50/6/60 and optional maintenance-free cache backup with 4 GB DDR4. With sixteen internal ports, the Intel RAID Module RMSP3AD160F enables exceptional NVMe, SAS, and SATA performance and scalability. It provides high uptime for mass storage, with maximum reliability for high-intensity workloads.
Specifications
Board Form FactorMezzanine Module Supported Devices
PCIe/SAS/SATA Supported Operating Systems
Microsoft Windows, VMWare, Linux (SLES, RHEL), Solaris, FreeBSD Compatible Cache Backup Options
AXXRMFBU7 RAID Level Supported
0, 1, 10, 5, 50, 6, 60 JBOD Mode
Yes Number of Ports Internal
16 Number of Ports External
0 Number of Devices Supported
255 Embedded Memory
4GB PCIe Host Interface
PCIe x8 Gen3 IO Processor Model
SAS3516 Keying
PCIe x8 Gen3 Connector Orientation
Vertical Additional Features
Support for optional Maintenance Free Backup Unit and Premium Feature upgrade keys. Included Items
(1) Intel RAID Module, (4) standoffs, and (4) standoff locking pins Item Dimension (L"xW"xH")
10 x 7 x 2
Weight
13.40 lbs
Warranty Information
3 Years Standard
