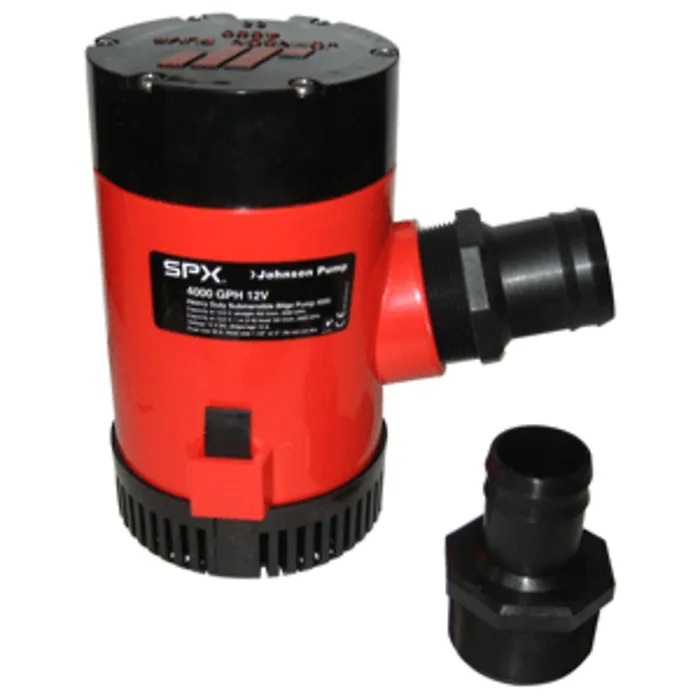

Johnson 40004 4000 Gph Bilge Pump 112" Discharge Port 12v
by Johnson Pump

• ☆☆☆☆☆
• 3 customer reviews (jump to section)

In Stock.
only 5 left in stock order soon

Heavy Duty Bilge Pump 4000 Series 12v:
The best choice when you are looking for high performance, heavy duty pumps designed to meet and exceed the tough demands of commercial and recreational duty. This pump has a liquid cooled, 12-pole motor with double ball bearings for extended service life. The 2200 motor is sealed off by a mechanical seal design, while the 1600 model has lipseal. The impeller is carefully designed and tested to maximize head and flow. The 4000 features a robust motor design, mechanical shaft seal, high impact ABS plastic and unique threaded port design. Universal base plate and a choice of 1-1/2" or 2" ports makes for a simple installation. Removable check valve included.
CE-Approved

Features:

• Heavy duty, 12-pole double ball bearing motor

• Liquid cooled for extended motor life

• Quality engineered mechanical/lip seal

• ISO 8849 Marine and CE standards

• Easily interchangeable with most similar bilge pumps

• Pump body: Thermoplastic

• Shaft seal: Mechanical seal

• Shaft: Stainless steel (SS2343)

• Voltage: 12 V

• Capacity 1.0 m head (13.6 V/27 V): 164 l/min - 2600 GPH

• Capacity straight (13.6 V/27 V): 252 l/min - 4000 GPH

• Amperage: 15 A

• Fuse Size: 25 A

• Connection: 1-1/8" and 1-1/4"

• Shaft: SS2343

• Wire size: 2 mm2 - 14 GA

• Max height 216 mm - 8.5"

• Weight 2.45 kg - 5.4 lbs
