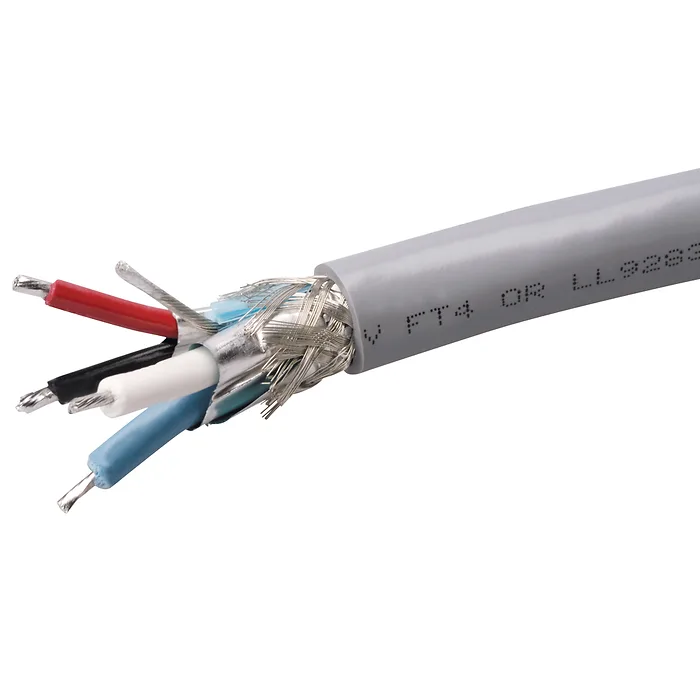

Maretron DG1-100C Highperformance Bulk Cable 100 Meter Gray
by Maretron
| Price: | $610.40 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
only 3 left in stock order soon
Specifications
Overall
- Outer Jacket Mat/Color: PVC/Gray - DG1 PVC/Blue - DB1
- Insulation Material: PE (data wires), PVC (power wires)
- Construction: 2x16 (1.29mm) AWG, 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
- Shielding (3 levels): Foil (overall), Foil (power pair), Foil (data pair)
Power Pair
- Wire: 2x16 (1.29mm) AWG
- Resistance/Conductor: 4.1 Ohms/1000 ft max
- Max Amperage: 14 Amps
- Color Code: Red/Black
Data Pair
- Wire: 2x20 (0.81mm) (AWG)
- Characteristic Impedance: 120 Ohms +/- 10%
- Capacitance: 10.75 pF/ft
- Color Code: White/Blue
Approvals
- UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
- CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
- NMEA: NMEA 2000 Approved
- IEC: IEC-61162-3
Specifications
- High-performance bulk cable for reliable data and power transmission.
- Multiple shielding layers for enhanced signal integrity.
- UL and CSA compliance for safety and durability.
- Suitable for NMEA 2000 applications.
