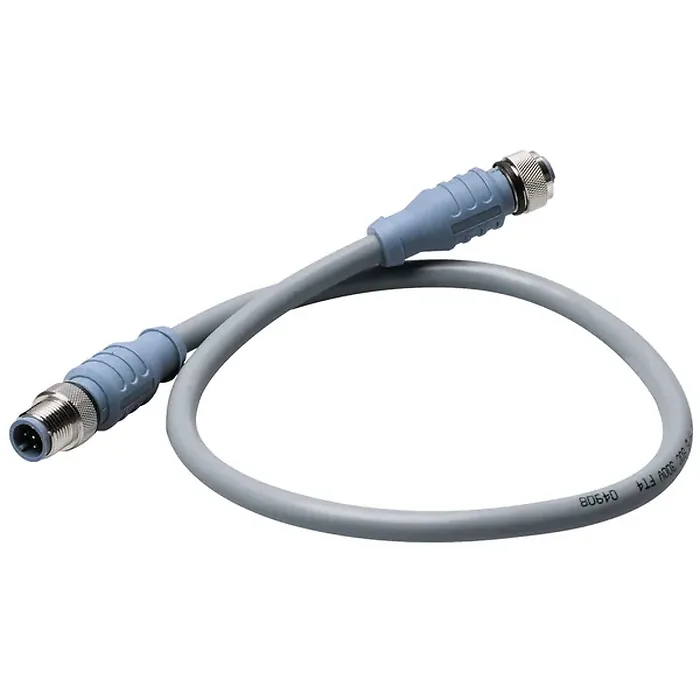

Maretron CM-CG1-CF-06.0 Micro Doubleended Cordset 6 Meter
by Maretron

Price:  $66.11
MFG Part:  CM-CG1-CF-06.0
UPC:  873804001562
Condition:  New

In Stock.
only 6 left in stock order soon

Mechanical

  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59"
    Electrical
  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V
    Cable
  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
  • Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
  • Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)
    Environmental
  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
    Approvals
  • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625,
    AWM 80 deg C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C,
    AWM I/II A/B 80C 300V FT4
  • NMEA: NMEA 2000 Approved


    • $6611

    FREE Returns within 30 days

    FREE Delivery from US warehouses

    In Stock

    Secure transaction
    Ships from
    US warehouse
    Sold by
    Aztek Computers
    Returns
    30-day returns
    Payment
    Secure transaction

    Specifications

    Mechanical
  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59"
    Electrical
  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V
    Cable
  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
  • Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
  • Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)
    Environmental
  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
    Approvals
  • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625,
    AWM 80 deg C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C,
    AWM I/II A/B 80C 300V FT4
  • NMEA: NMEA 2000 Approved
