Startech ST1000SMPEX Mini Pci Express Gigabit Ethernet Network Adapter Nic Card Add A Gigabit Rj45 Port Through A Mini Pci Express Slot Mini Pci Express Gigabit Mini Pcie Gigabit Mini Pci Express Nic Gigabit Ethernet Adapter Gigabit Ethernet Card
by STARTECH

General Information

---

Manufacturer:StarTech.com
Manufacturer Part Number:ST1000SMPEX
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com

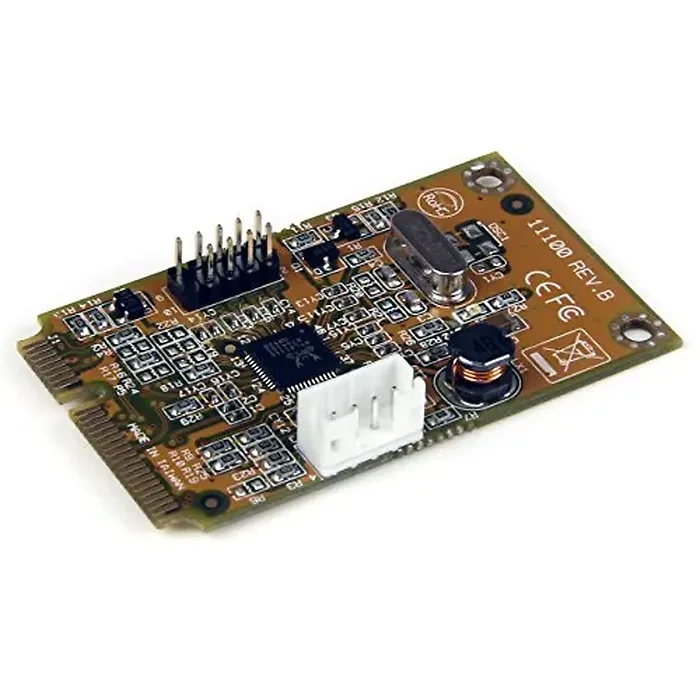

Product Name:Mini PCI Express Gigabit Ethernet Network Adapter NIC Card
Marketing Information:The ST1000SMPEX Mini PCI Express Gigabit Network Adapter Card adds 1000Mbps network connectivity to a Mini PCI Express (PCI Express Mini Card, Mini PCIe) enabled computer system, such as Mini-ITX motherboards.

Supporting features such as NDIS5 checksum and large send offload for lower CPU utilization, Wake-onLAN (WOL) and Remote Wake-up power management, jumbo frames and VLAN tagging, this Mini PCI Express Gigabit Adapter is ready to handle a wide variety of scenarios.

Perfect for small form factor or embedded systems that originally lack Gigabit networking capability, or for adding a network connection without taking up a full-sized PCI Express slots, this high quality Mini PCIe Network Adapter includes a low profile/half-height bracket for additional installation options.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Packaged Quantity:1
Product Type:Gigabit Ethernet Card

Technical Information

---

Chipset Manufacturer:Realtek

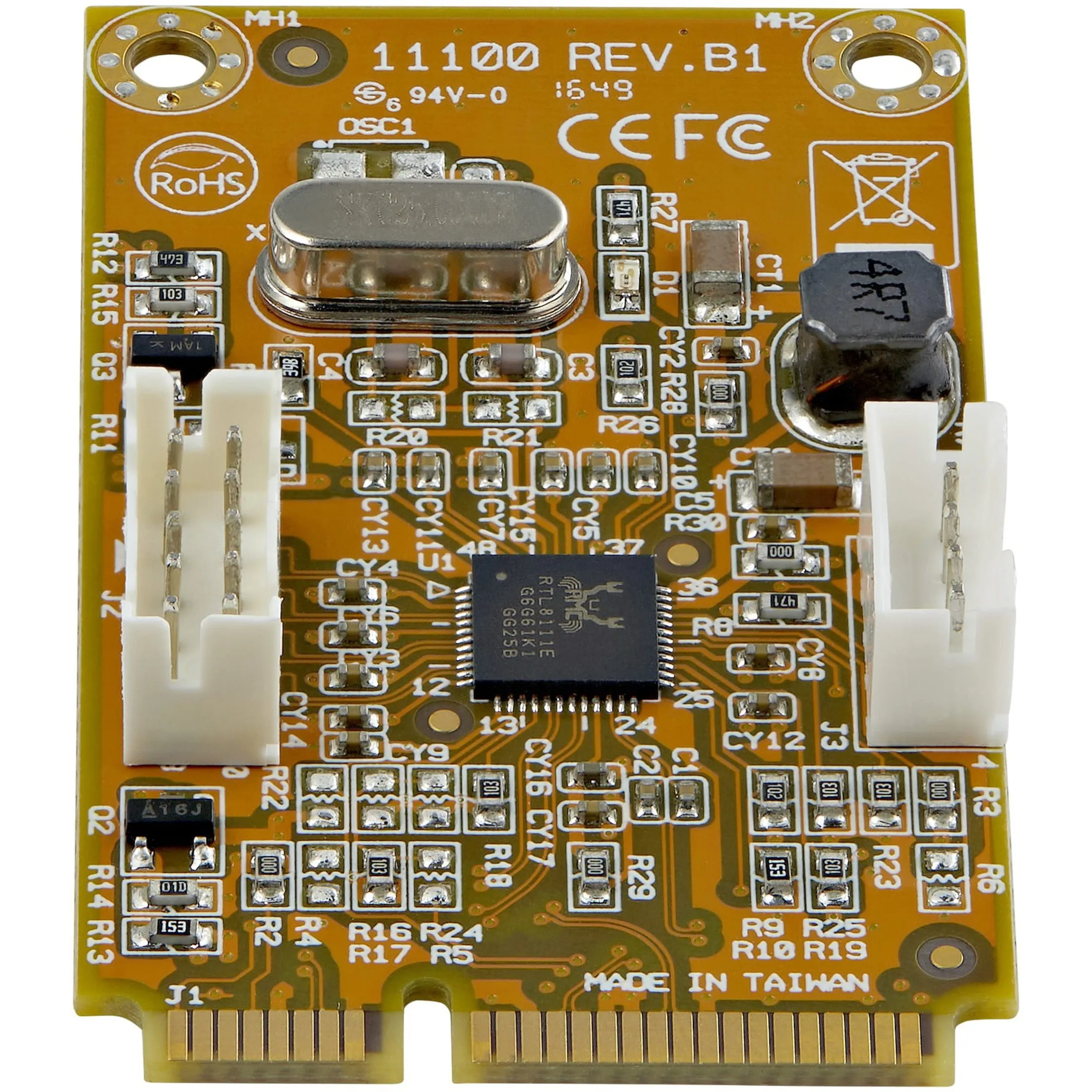

Chipset Model:RTL8111E

Interfaces/Ports

---

Host Interface:Mini PCI Express
Total Number of Ports:1
Network (RJ-45):Yes
Number of Network (RJ-45) Ports:1

Media & Performance

---

Media Type Supported:Twisted Pair

Network & Communication

---

Network Technology:10/100/1000Base-T

Physical Characteristics

---

Card Height:Low-profile
Form Factor:Plug-in Card
Height:1.3"
Width:5.7"
Depth:2"
Thickness:160 mil
Weight (Approximate):0.20 oz

Miscellaneous

---

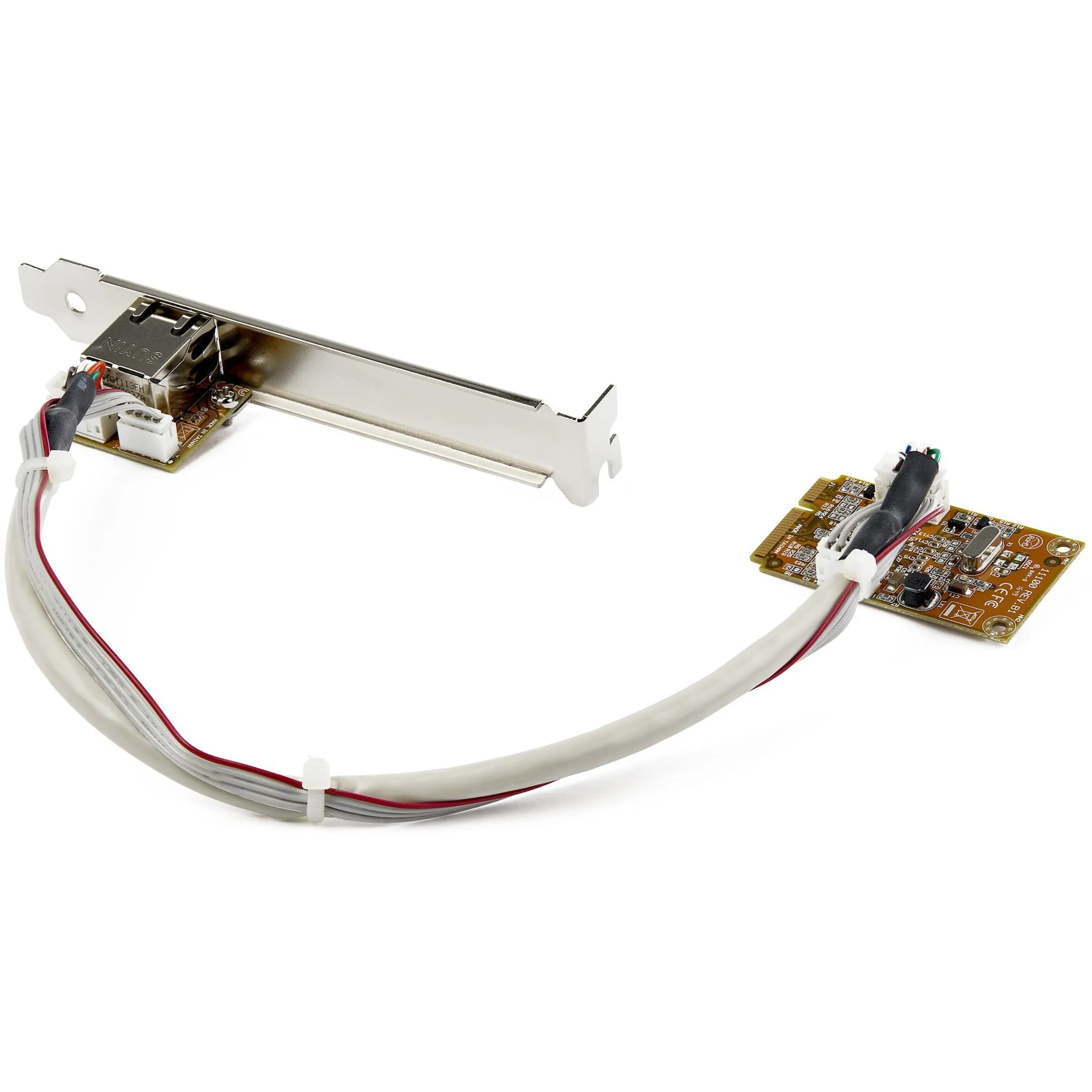

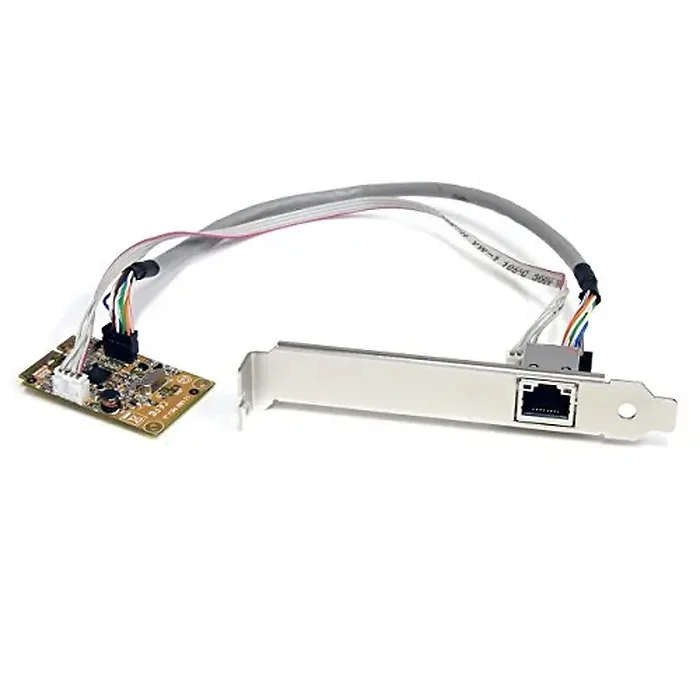

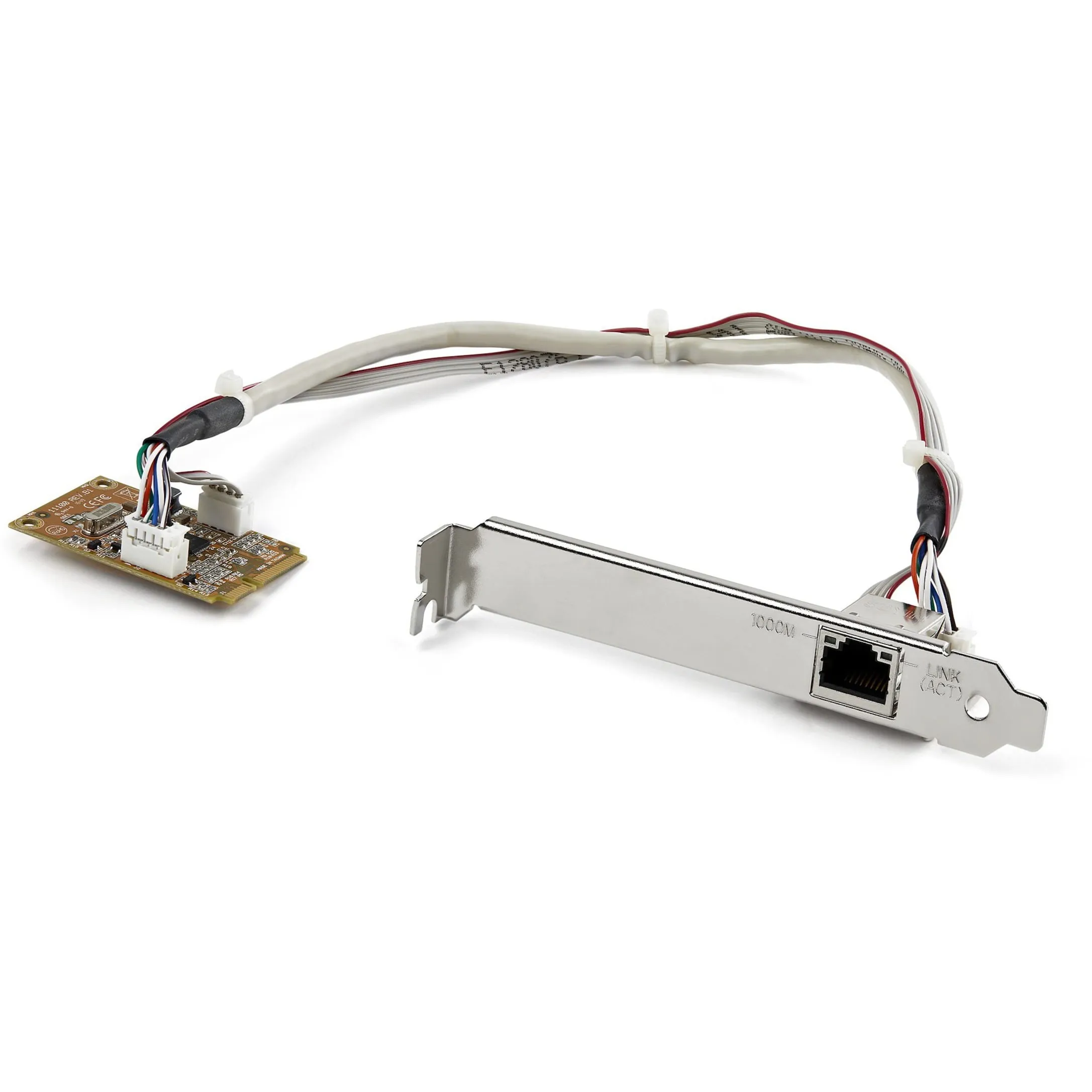

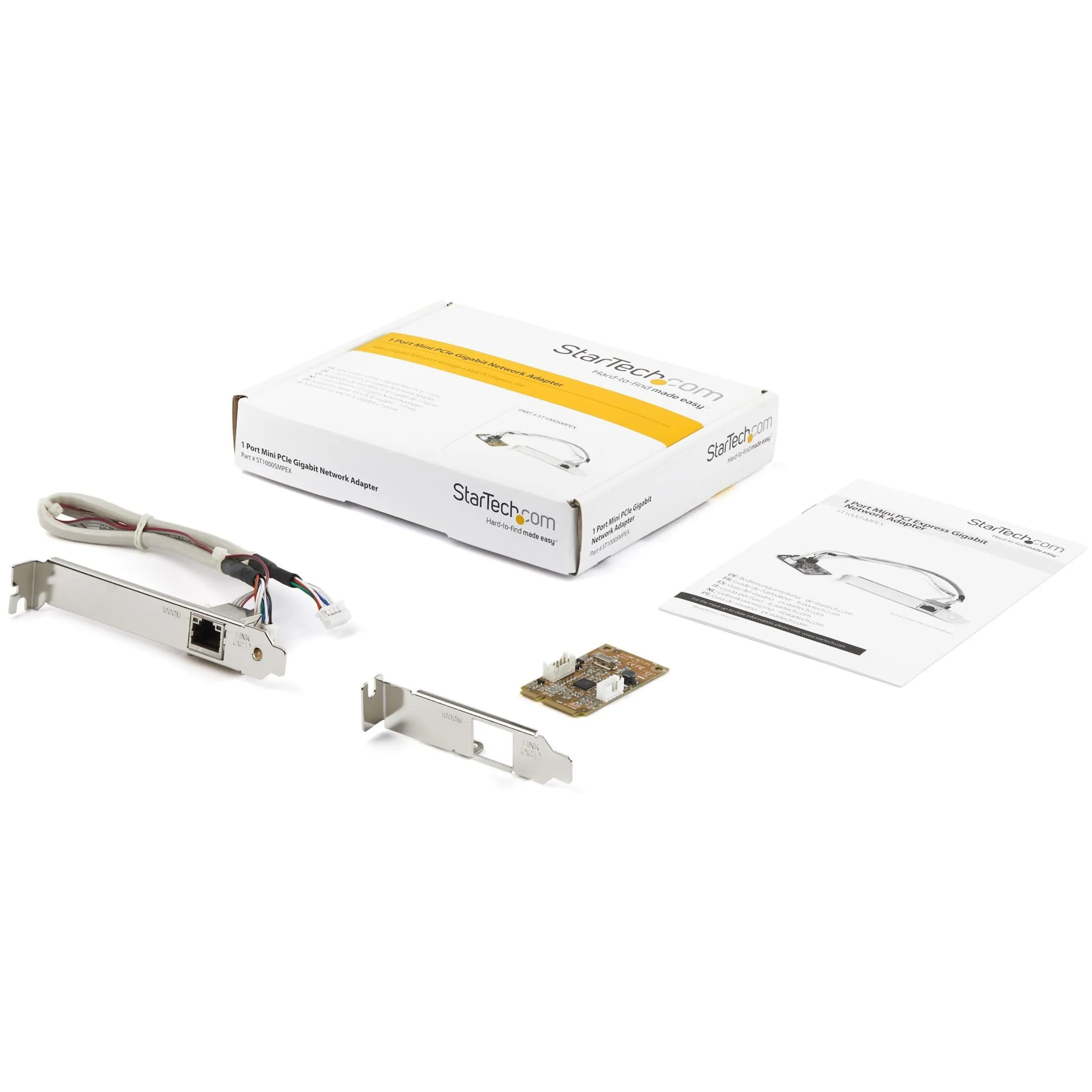

Package Contents:

• Mini PCI Express Gigabit Ethernet Network Adapter NIC Card

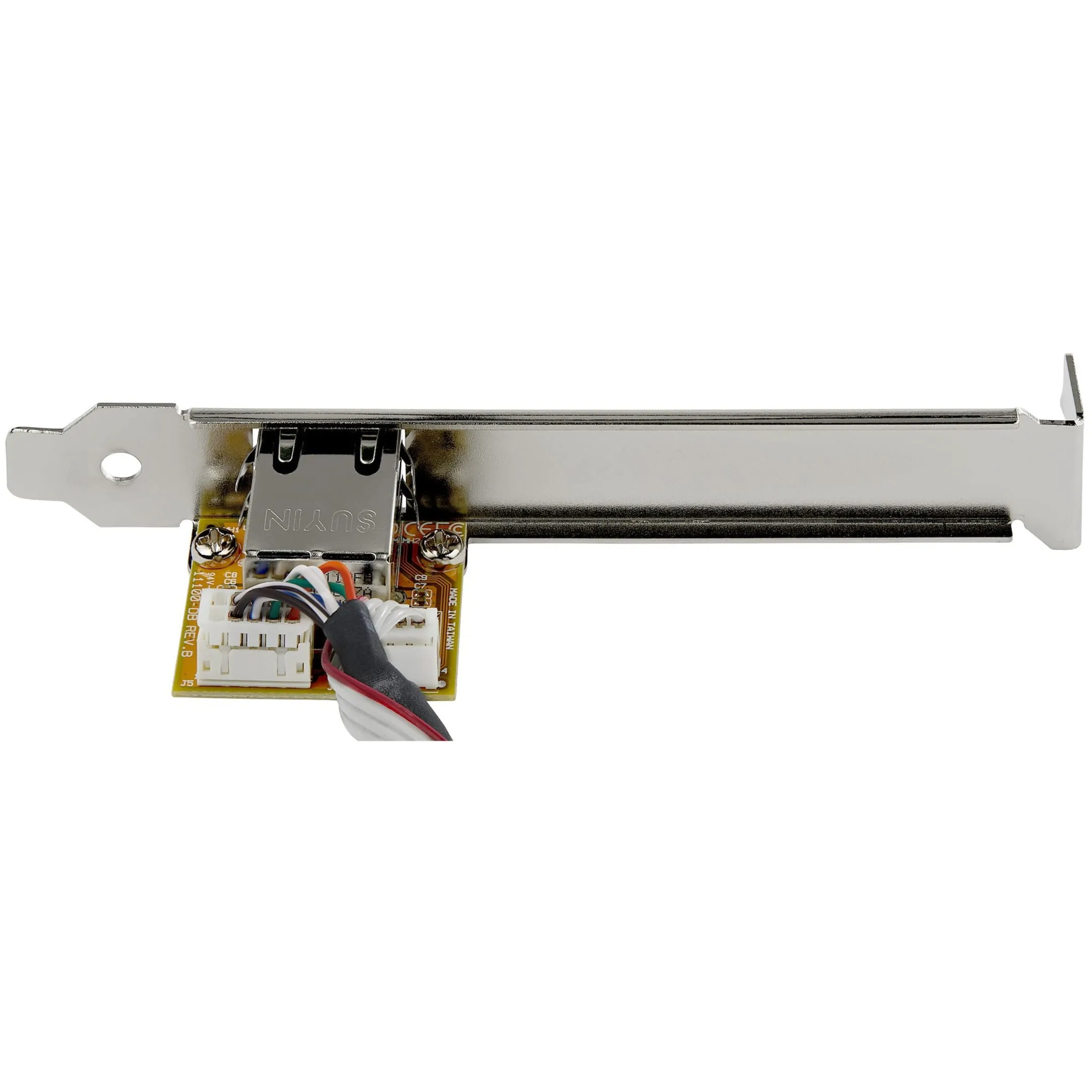

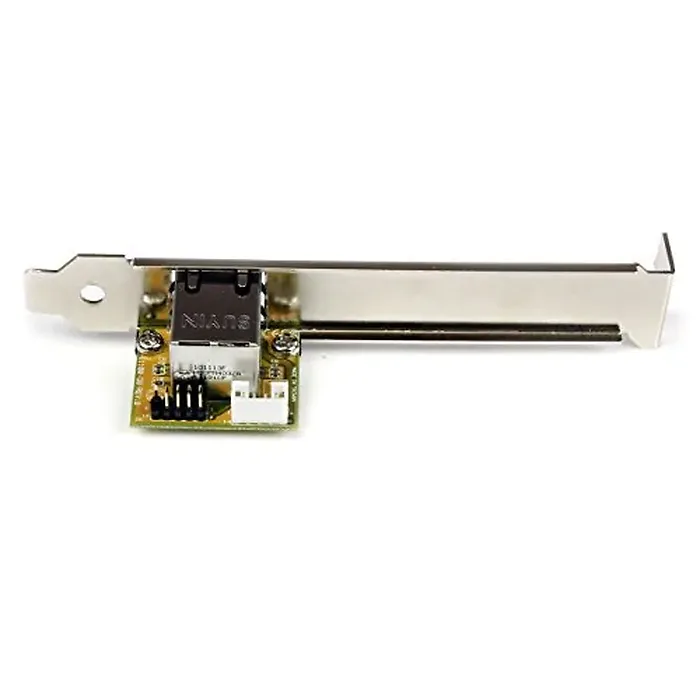

• 1 x RJ45 Daughter Board

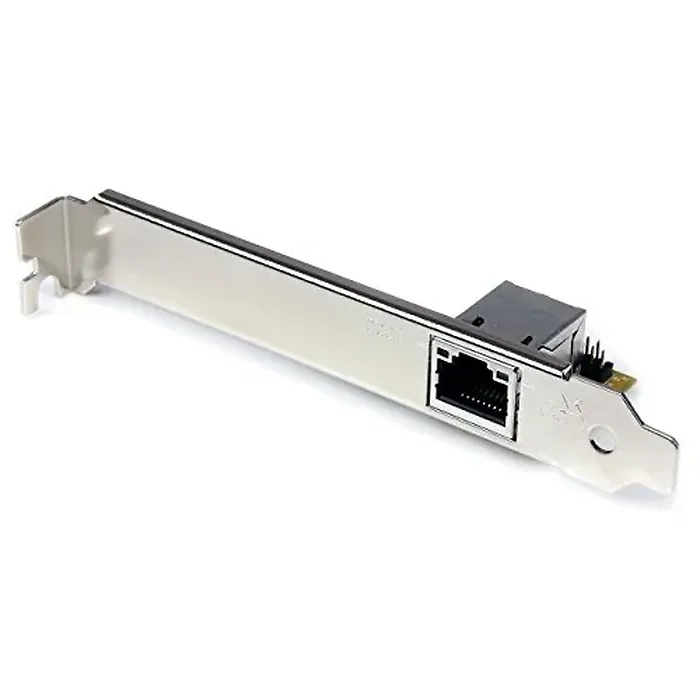

• 1 x Low Profile Bracket
• 1 x Driver CD
• Internal LED Cable
• Internal Data Cable
• 1 x Instruction Manual

Additional Information:

• Full length mini PCI Express (PCI Express Mini Card, Mini PCIe) form factor fits in many Mini-ITX or embedded systems
• Built-in NDIS5 Checksum and Large Send Offload support and Jumbo Frames minimize system resource usage
• Backed by a StarTech.com 2-year warranty and free lifetime technical support

System Requirements:

• Windows® 2000, XP, Vista, 7, 8, 8.1, 10
• Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
• Mac OS® 10.4.x and 10.5.x
• Linux 2.4.x to 4.11.x LTS Versions Only

Environmentally Friendly:Yes
Environmental Certification:

• RoHS
• WEEE

Country of Origin:Taiwan
