Specifications
Chipset:
VIA VL805 Ethernet: RTL8153 Compliant with PCI Express 2.0 specification
Compliant with USB 3.0 Specification
Bus connector: PCI Express x1
USB data transfer rate: Up to 5Gbps
USB power output: Up to 5V/900mA
Product
Color: Black
Connectors
3x, 9-pin USB 3.0 Type A, Female
1x, 8-pin with LED, RJ45, Connector
1x, 4-pin Molex power connector
Molex power connection is required
Environmental conditions
Operating temperature: 32 to 140 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards
FCC, CE, RoHS
Requirements
Desktop PC with one available PCI Express (PCIe) slot
4-Pin Molex power connected to system power supply is required
Windows 10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit)
Windows Server 2016 / 2012R2 / 2012 / 2008 R2 / 2008 / 2003
Package Contents

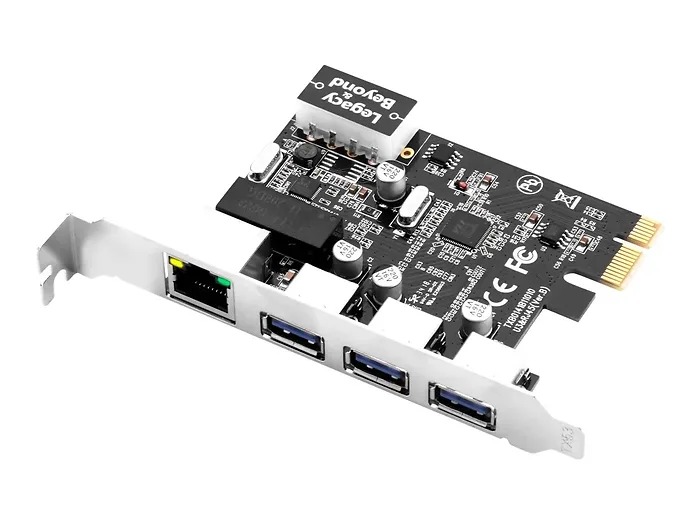

USB 3.0 3-Port Hub with LAN PCIe Host Card
Driver CD
Quick start guide
Item Dimension ( L inchxW inchxH inch)
3 x 1 x 5 Weight
1.0 lb Warranty Information
1 year
