Oceanled 013204 Waterproof Dmx Junction Box With 4 Outputs
by OceanLED

• ☆☆☆☆☆
• 1 customer reviews (jump to section)

In Stock.
only 1 left in stock order soon

Ships from and sold by Aztek Computers.

Added On: Mar 16, 2026 | Updated On: Apr 1, 2026 | Views: 9

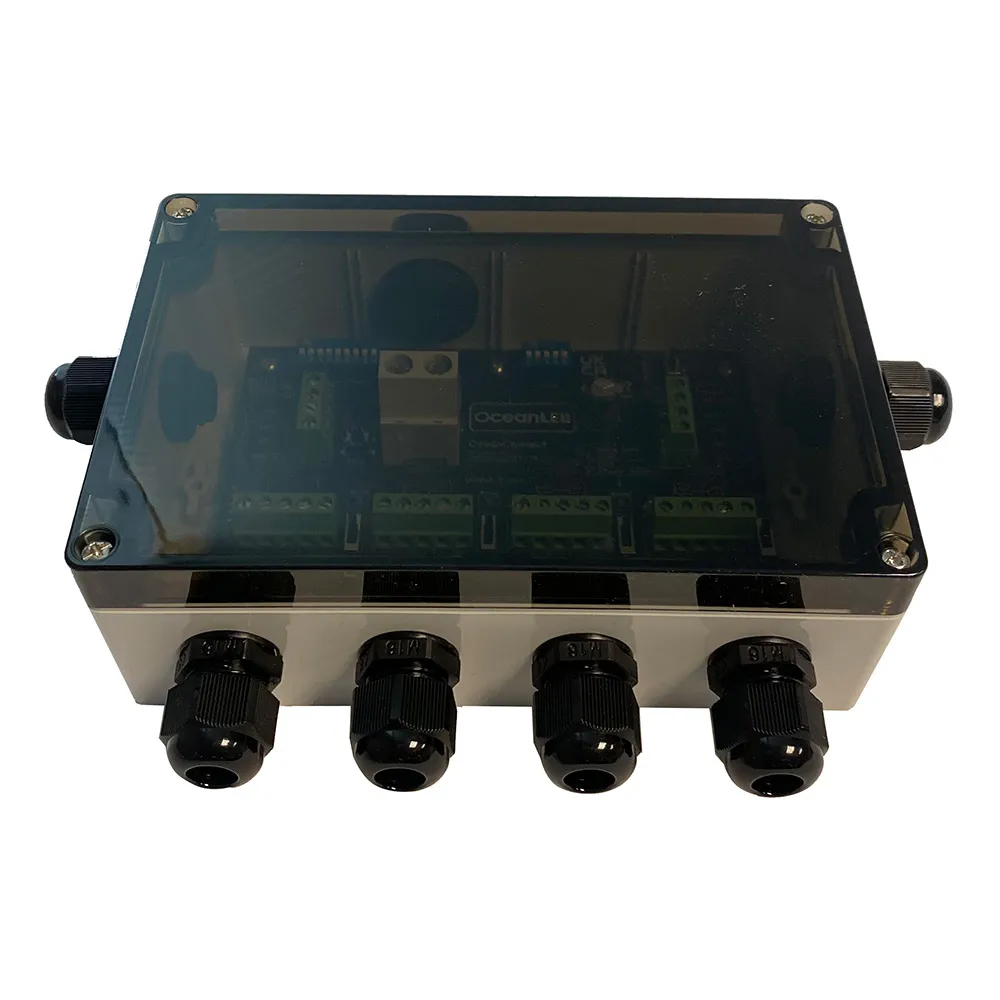

Waterproof DMX Junction Box with 4 Outputs

The OceanLED Junction Box is designed for seamless integration with DMX-controlled lighting systems. It features a robust waterproof construction (IP66) and operates within a low-voltage range (9–32V DC). This junction box provides a reliable power source with one power unit and four individually switched fused outputs, each rated for 6 amps. It is ideal for connecting various DC-powered lighting fixtures, including up to four DMX-controlled OceanLED X-Series lights.

Included Components:

• 1x OceanLED Junction Box with 4x 7.5A blade fuses
• 4x mounting screws
• 1x twin entry cable grommet
• 4x blanking plugs

Technical Specifications:

• Voltage Compatibility: 12/24V DC (max 32V DC)
• Cable Glands: 1x M20-Power In, 4x M16 - DMX In/Out & Lights Out
• Wire Gauge for Power Input: 8-20 AWG
• Wire Gauge for DMX & Lights Out: 12-28 AWG
• Output: 4 x individual fused outputs rated at 6 Amps each
• DMX Input: 1x DMX Input for connecting to a DMX controller
• DMX Output: 1x DMX Output for linking multiple junction boxes
• DMX Terminator: Features an onboard DMX terminator with on/off switch

Physical Dimensions:

• Size (including cable glands): 228mm x 174mm x 60mm (approx. 9" x 6.8" x 2.3")
• Enclosure Material: Durably constructed with IP66-rated polycarbonate
• Weight: 270g
