Pacer TDT06F-2RS Pacer Dt Deutsch Connector Repair Kit 2 Position
by Pacer Group

• ☆☆☆☆☆
• 1 customer reviews (jump to section)

In Stock.

Pacer DT Deutsch Connector Repair Kit - 2 Position (14-18 AWG)

This DT Deutsch repair kit is designed for 14-18 AWG wires and includes 2 positions utilizing the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141). The DT series is compatible with applications requiring wire gauges from 20 to 14 AWG, providing flexibility and efficiency to electrical designers. Each connector can accommodate multiple sizes of contacts, offering a continuous capacity of 13 amps within a single housing. Additional components are also available for a variety of applications.

Applications:

• Ideal for wire-to-wire connections.
• Enclosed design offers reliability and durability in demanding environments.

Compliances:

• Ingress Protection (IP) Level: IP68 and IP6K9K for exceptional sealing.
• Meets EU RoHS and ELV standards.
• Complies with UL-94 safety standards.

Technical Specifications:

• Number of Cavities: 2.
• Housing Material: Rectangular receptacle made from glass-fiber reinforced plastic.
• Contact Size: 16 (13 amp capacity).
• Wire Size: Suitable for 14 AWG.
• Operating Temperature Range: -55°C to 125°C.

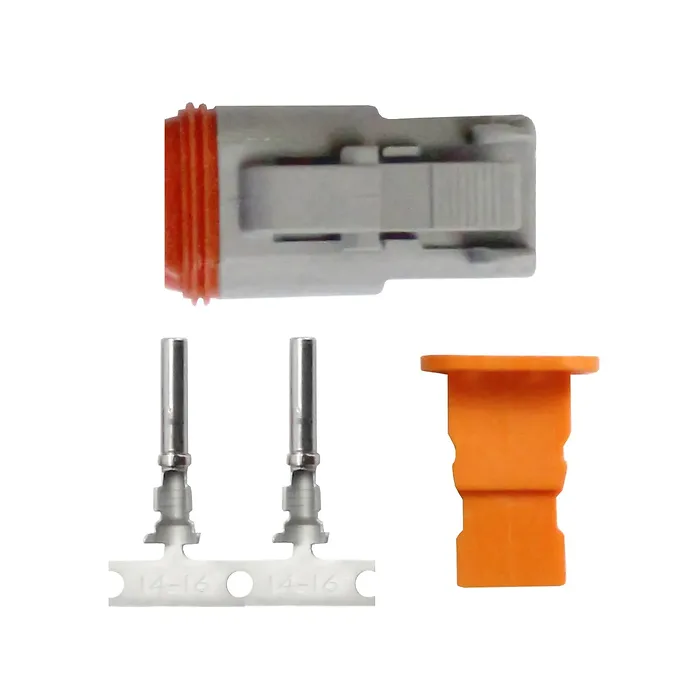

Contents:

• (1) 2 position plug.
• (1) 2 position wedge lock.
• (3) sockets included.
