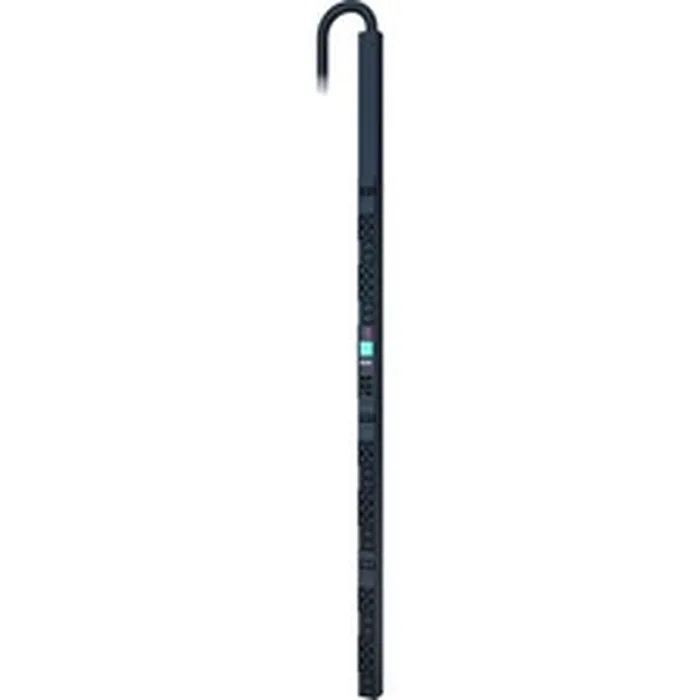

Apc AP8888 Rack Pdu 2g Metered Zerou 23.0kw 240v 30 C13 Amp; 12 C19
by APC - Schneider Electric

Specifications

General Information

Manufacturer:Schneider Electric SA
Manufacturer Part Number:AP8888
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Line:Metered Rack
Product Name:Rack PDU 2G, Metered, ZeroU, 23.0kW, 240V, (30) C13 & (12) C19
Marketing Information:

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Product Type:PDU

Technical Information

PDU Type:Metered
Receptacle Type:

• IEC 60320 C13
• IEC 60320 C19

Receptacle Detail:

• 30 x IEC 60320 C13
• 12 x IEC 60320 C19

Protection Type:Overload Protection

Power Description

Output Voltage:240 V AC
Power Rating (VA):23 kVA

Management

Management:

Protocols:

• SNMP
• Telnet
• Web

Physical Characteristics

Product Color:Black
Mount Type:Rack-mountable
Number of Cord/Cable:1
Height:72"
Width:2.2"
Depth:2"
Weight (Approximate):22.27 lb

Miscellaneous

Package Contents:

• Rack PDU 2G, Metered, ZeroU, 23.0kW, 240V, (30) C13 & (12) C19
• Installation guide
• Rack mounting brackets
• Safety guide
• Serial configuration cable


• Additional Information:

  Input Connections: IEC 309 30A 3P+N+E


  Certifications & Standards:
  • cUL
  • EN 55022 Class A
  • EN 55024
  • EN 61000-3-2
  • EN 61000-3-3
  • FCC Part 15 Class A
  • ICES-003
  • UL
  • VCCI Class A

  Environmentally Friendly:Yes
  Environmental Certification:
  • REACH
  • RoHS

Warranty

Limited Warranty:2 Year
