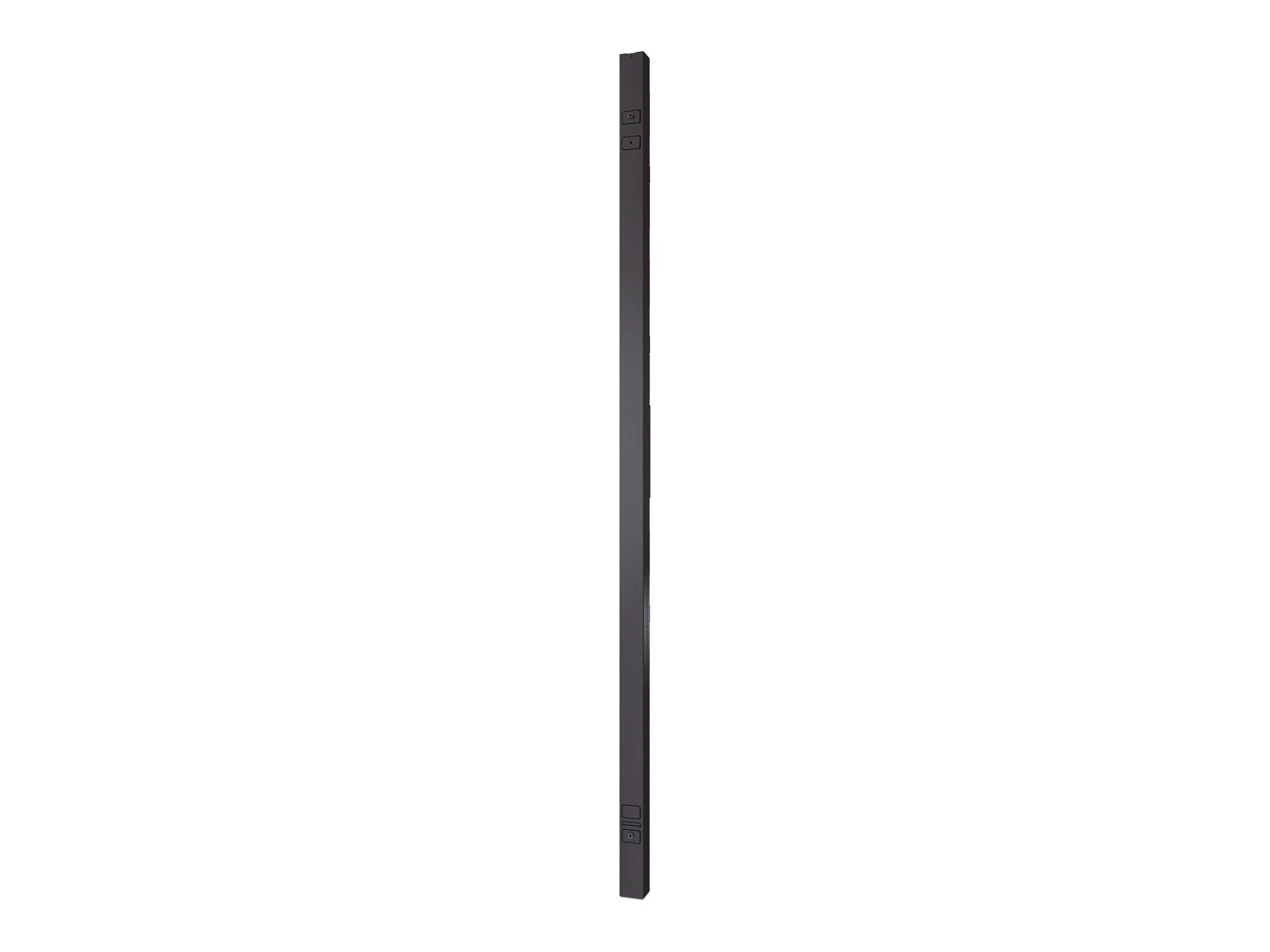

Apc AP8870 Rack Pdu 2g Metered Zerou 30a 120208v 16 520r 12 C13 2 C19
by APC - Schneider Electric
| Price: | $1042.75 |
| MFG Part: | AP8870 |
| UPC: | 731304307501 |
| Condition: | New |
In Stock.
Ships from and sold by Aztek Computers.
Added On: Sep 1, 2022 | Updated On: May 22, 2025 | Views: 377
Power distribution unit (rack-mountable) - AC 120/208 V - 5760 VA - input: NEMA L14-30 - output connectors: 30 - 0U - black - for P/N: AR3100
Specifications
Output
Nominal Output Voltage:120V
Other Output Voltages:240
Overload Protection:Yes
Maximum Total Current Draw:24
Output Connections:(2) IEC 320 C19 (Battery Backup)
(12) IEC 320 C13 (Battery Backup)
(16) NEMA 5-20R (Battery Backup)
Input
Nominal Input Voltage:120V , 208V
Input frequency:50/60 Hz
Input Connections:NEMA L14-30P
Cord Length:9.84ft ( 3meters )
Number of Power Cords:1
Load Capacity:5760VA
Maximum Input Current:30A
Regulatory Derated Input Current (North America):24A
Physical
Color:Black
Environmental
Operating Temperature:23 - 113 oF ( -5 - 45 oC )
Operating Relative Humidity:5 - 95 %
Operating Elevation:0-10000ft ( 0-3000meters )
Storage Temperature:-25 - 65 oC
Storage Relative Humidity:5 - 95 %
Storage Elevation:0-50000ft ( 0-15000meters )
Conformance
Approvals:cUL Listed, FCC Part 15 Class A, ICES-003, UL 60950-1, UL Listed
Sustainable Offer Status
RoHS:Compliant
REACH:REACH: Contains No SVHCs
Battery Directive:Compliant
Battery Notes:ts_Battery_Notes
Item Dimension (L inchxW inchxH inch)
5 x 79 x 7 Weight
17.00lb Warranty Information
2 years repair or replace
