Apc AP7811B Rack Pdu Metered 2u 30a 208v 12 C13s 4 C19
by APC - Schneider Electric
| Price: | $799.37 |
| MFG Part: | AP7811B |
| UPC: | 731304331490 |
| Condition: | New |
Currently Unavailable.
Ships from and sold by Aztek Computers.
Added On: Sep 1, 2022 | Updated On: May 2, 2024 | Views: 246

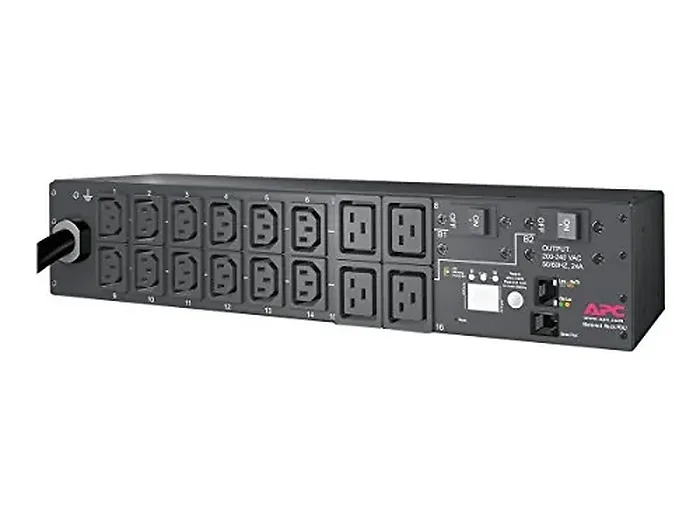

Power distribution unit (rack-mountable) - AC 200/208/230 V - Ethernet - input: NEMA L6-30 - output connectors: 16 - 2U
Specifications
Output
Nominal Output Voltage: 208V
Overload Protection: Yes
Maximum Total Current Draw: 24
Output Connections:
(12) IEC 320 C13 (Battery Backup)
(4) IEC 320 C19 (Battery Backup)
Input
Nominal Input Voltage: 200V , 208V , 230
VInput frequency: 50/60 Hz
Input Connections: NEMA L6-30P
Cord Length: 12ft ( 3.66meters )
Number of Power Cords: 1
Maximum Input Current: 30A
Regulatory Derated Input Current (North America): 24A
Physical
Rack Height: 2U
Environmental
Operating Temperature: 23 - 113 oF ( -5 - 45 oC )
Operating Relative Humidity: 5 - 95 %
Operating Elevation: 0-10000ft ( 0-3000meters )
Storage Temperature: -25 - 65 oC
Storage Relative Humidity: 5 - 95 %
Storage Elevation 0-50000ft ( 0-15000meters )
Conformance
Approvals: cUL Listed, CSA, FCC Part 15 Class A, ICES-003, PSE, UL 60950, UL Listed
Sustainable Offer Status
RoHS: Compliant
REACH: Contains No SVHCs
Battery Directive Compliant
Item Dimension (L inchxW inchxH inch)
15 x 20 x 6
Weight
13.00lb
Warranty Information
2 years repair or replace
