Raritan 88B515-1 Ice Maker Builtin Flange 120v
by Raritan

• ☆☆☆☆☆
• 1 customer reviews (jump to section)

Price:

$1345.72

MFG Part:

88B515-1

UPC:	085462044274

Condition:

New

In Stock.
only 6 left in stock order soon

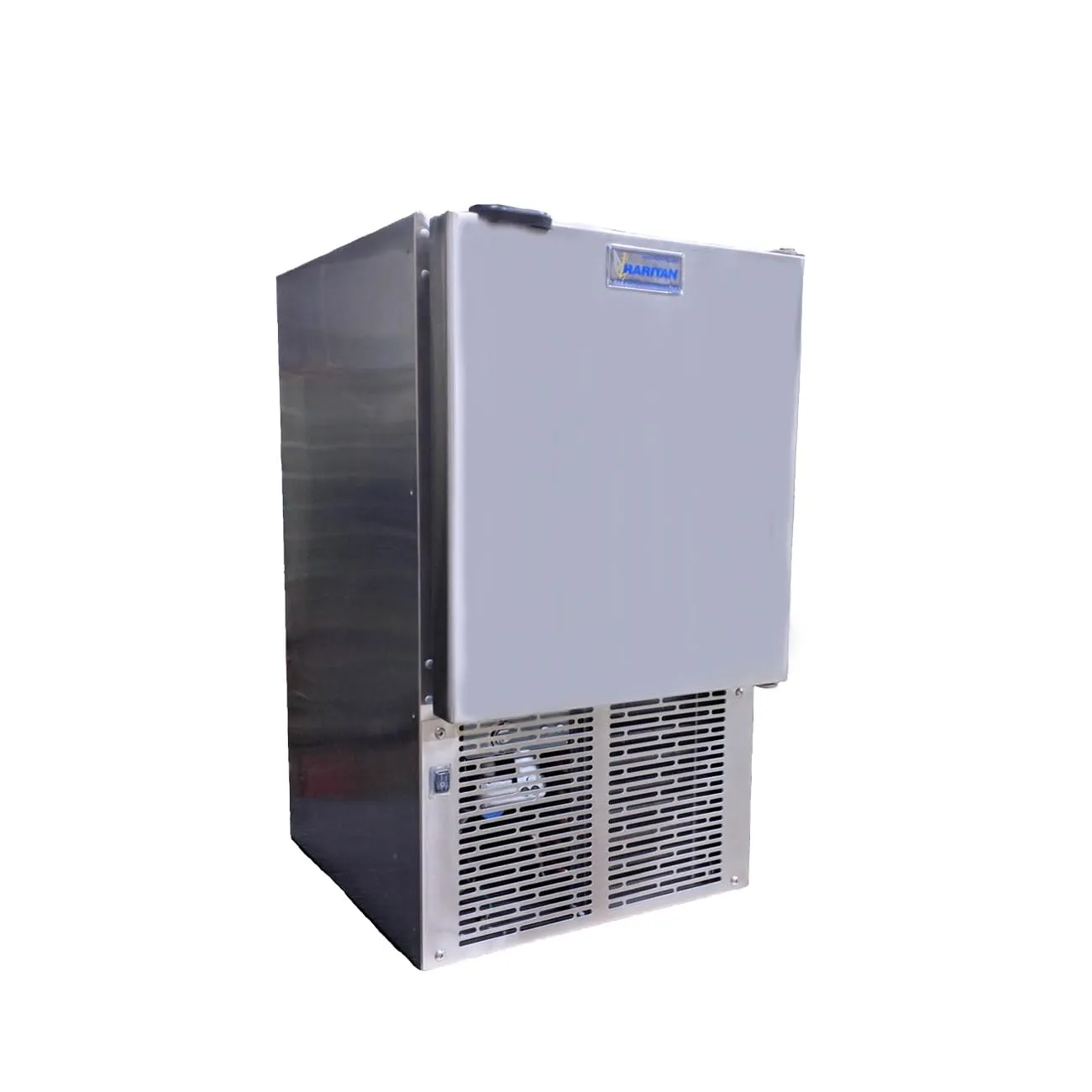

Raritan 88 Series Iceamaker Built-in Flange, Free Standing 120V

Model: 88B515-1
UPC: 85462034404

• Improved controls for more efficient operation.
• Cabinet and door built to last in harsh marine environments.
• Removable ice bucket stores up to 11 lbs of crescent ice (1/2 in W x 3/4 in H x 2-1/2 in L)
• No drain required makes it easy and inexpensive to install.
• Only requires a 1/4 in outside diameter water line.
• Does not require additional hinge clearance for door swing.
• Includes flange.
• No additional side space required for ventilation.
• Water Pressure Operating Range 20-120
• All ventilation from front, limited vent in back of unit. No additional clearance required around the sides.
• Adjustable rubber leveling feet
• Water supply Inlet size 1/4 in OD and requires 3/4 space behind the unit for clearance
• Water supply inlet located in lower right of rear opposite of the power cord

Specifications
Electrical requirements

115V/60Hz with USA plugVolatage range104V~127VMaximum amp fuse15ampsDimensionsBody24 1/2 H x 14 W x 17 1/16 in DFlange25 7/16 in H x 15 1/2 in W

"
