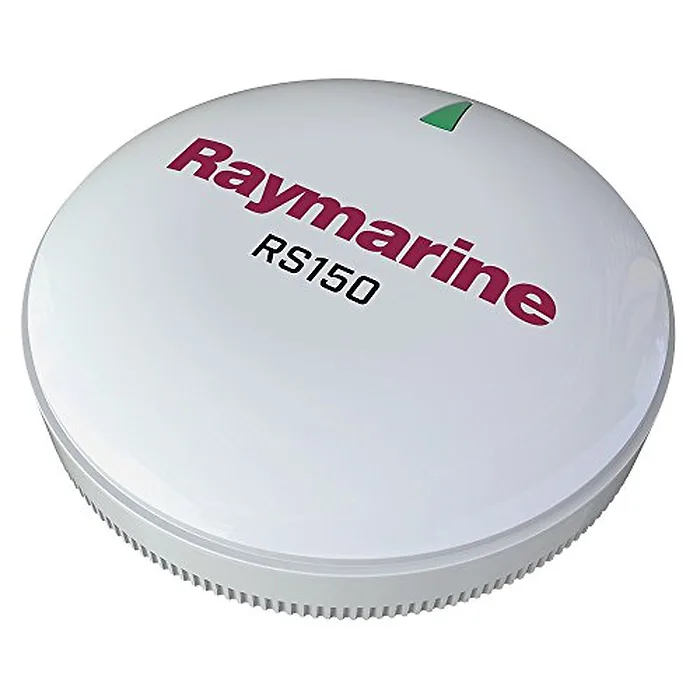

Raymarine E70310 Rs150 Gps Sensor
by Raymarine

• ☆☆☆☆☆
• 3 customer reviews (jump to section)

In Stock.

RS150 GPS Sensor

The RS150 GPS is a high performance, 72-channel, remotely mounted GPS sensor for Raymarine navigation systems. The RS150 offers fast 10Hz position updates and enhanced accuracy. The RS150 is also a GNSS receiver and supports the GLONASS global navigation satellite system.

Features:

• 72-channel GPS receiver
• Fast 10Hz position updates
• Satellite differential GPS-compatible. Space-Based Augmentation System (SBAS) enabled with WASS, EGNOS, MSAS and GAGAN support
• A GNSS receiver with GLONASS compatibility
• Low power consumption: 30mA (1 LEN)
• SeaTalkng and NMEA2000 compatible (using a device net adapter cable)
• Designed for low profile surface mounting or optional pole mounting

Specifications:

• Nominal supply voltage: 12V D.C. Powered by N2K bus
• Operating voltage range: 8 - 32V DC
• Power consumption: 30 mA max (NMEA LEN = 1)
• Operating temperature: -13ºF to 131ºF (-25ºC to +55ºC)
• Relative humidity: max 93%
• Waterproof: IPx6/7
• Supported connection protocols: SeaTalk^ng: NMEA 2000 (certified) (via DeviceNet adaptor)
• Sensitivity: High sensitivity - acquisition down to -163dBm
• No. of channels: 72
• Positioning System: GPS & GLONASS
• Satellite Differential Type: WAAS (United States); EGNOS (Europe); MSAS (Japan); GAGAN (India)
• Differential acquisition: Automatic
• Position accuracy (95%): <15M
• Position accuracy with SDGPS (95%): <5M
• Speed accuracy (95%): <0.3kt
• Time to first fix from cold start: <2 minutes (< 45 seconds typical)
• Time to first fix from hot start: < 8 seconds -72 hour hold up battery allows for hot start
• Geodetic Datum: WGS84
