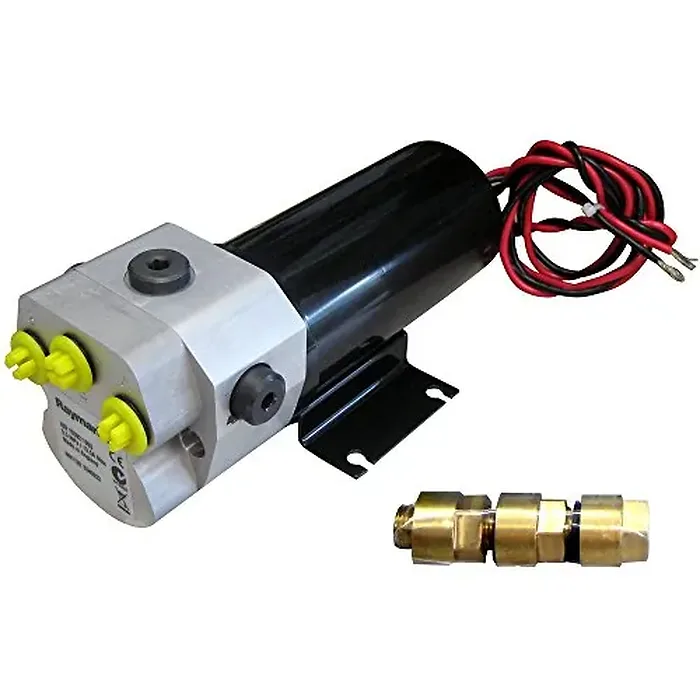

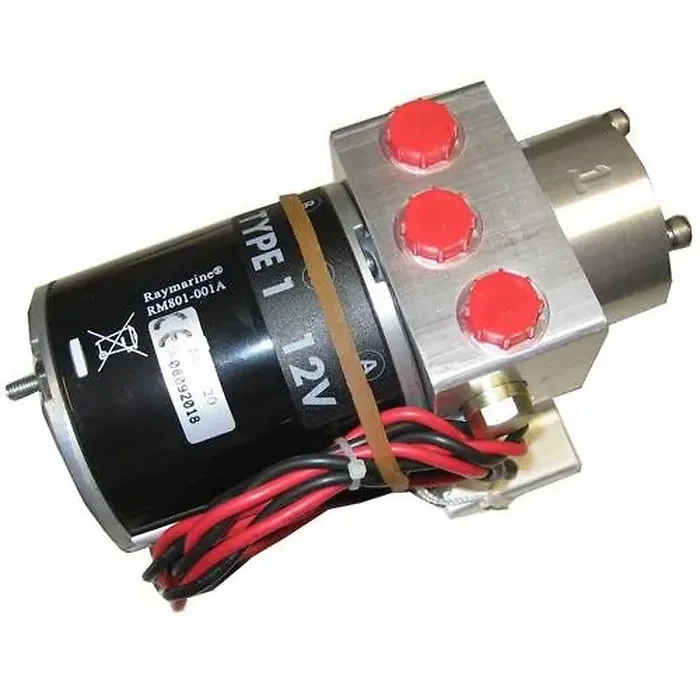

Raymarine M81120 Type 1 Pump 12v
by Raymarine
| Price: | $1017.58 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
only 1 left in stock order soon
Type 1 Pump 12volt
Reversing hydraulic pump for use with steering systems equipped with 4.914 cubic inch (80cc 230cc) hydraulic steering rams.
The Type 1 hydraulic drive is compatible with both S1/S1G and S2/S2G corepacks. Use the table below to determine the Type 1 hydraulic drive's capacity when used with each corepack
Corepack Used S1 or S1G
Ram Capacity 4.9in - 10.5in
(80CC-172CC)
Maximum Stall
Pressure at 12V 750psi (50bar)
(no load) 67in/min (1000cc/min)
Corepack Used S2 or S2G
Ram Capacity 4.9in - 14in
(80cc - 230cc)
Maximum Stall
Pressure at 12V 750psi (50bar)
Peak Flow Rate
(no load) 67in/min (1000CC/min)
Specifications
Type 1 Pump 12voltReversing hydraulic pump for use with steering systems equipped with 4.914 cubic inch (80cc 230cc) hydraulic steering rams.
The Type 1 hydraulic drive is compatible with both S1/S1G and S2/S2G corepacks. Use the table below to determine the Type 1 hydraulic drives capacity when used with each corepack
Corepack Used S1 or S1G
Ram Capacity 4.9in - 10.5in
(80CC-172CC)
Maximum Stall
Pressure at 12V 750psi (50bar)
(no load) 67in/min (1000cc/min)
Corepack Used S2 or S2G
Ram Capacity 4.9in - 14in
(80cc - 230cc)
Maximum Stall
Pressure at 12V 750psi (50bar)
Peak Flow Rate
(no load) 67in/min (1000CC/min)
