Wichard 6645 Round Diamond Pad Eye 79mm Length For M6 Screw
by Wichard Marine

• ☆☆☆☆☆
• 1 customer reviews (jump to section)

In Stock.
only 4 left in stock order soon

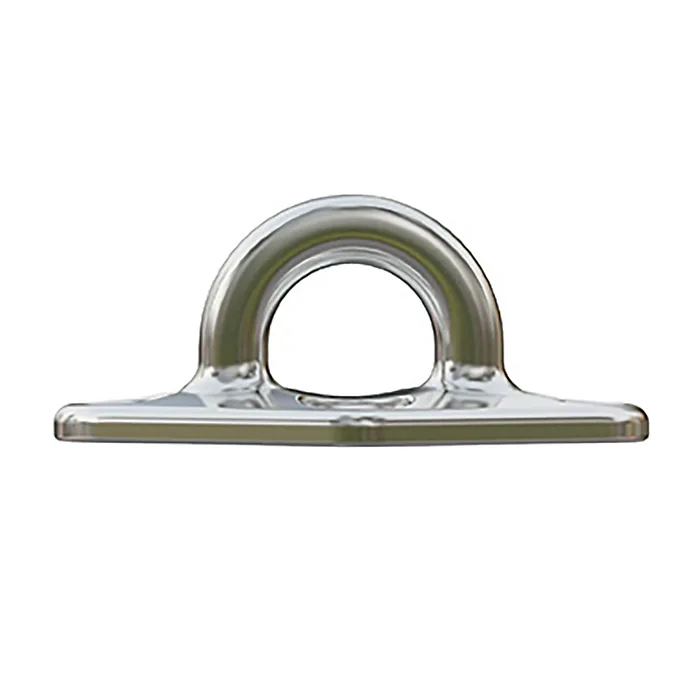

Round Diamond Pad Eye - 79mm Length (3-7/64") - Designed for M6 Screw

Durable and reliable, this round diamond pad eye is crafted from duplex stainless steel and is specifically designed for optimal performance in marine and industrial applications. With impressive mechanical resistance and corrosion resistance, it is ideal for various fastening tasks.

Applications:

• Mast foot blocks
• Reefing blocks
• Various fastenings

Specifications:

• Materials: Duplex stainless steel grade
• Working Load: 6393.4 lb (2900 kg)
• Breaking Load: 17196 lb (7800 kg)
• Weight: 0.315 lb (143 g)

Working Load and Breaking Load Details:

• W.L 1 (90 degrees): 6393.4 lb (2900 kg)
• W.L 2 (45 degrees): 5732 lb (2600 kg)
• W.L 3 (0 degrees): 5291 lb (2400 kg)
• B.L 1 (90 degrees): 17196 lb (7800 kg)
• B.L 2 (45 degrees): 15211.9 lb (6900 kg)
• B.L 3 (0 degrees): 13889 lb (6300 kg)

Dimensions:

• A: 3 7/64" (79 mm)
• B: 2 23/64" (60 mm)
• C: 1 31/32" (50 mm)
• D: 1 17/64" (32 mm)
• E: 47/64" (18.5 mm)
• F: 55/64" (22 mm)

Caption:

• Working Load (WL): For nautical applications.
• Working Load Limit (WLL): For industrial use only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5.

*Sold as an Individual
