Samlex SDC-5 Samlex 5a Nonisolated 24v To 12v Dcdc Converter
by Samlex America
| Price: | $57.74 |
| MFG Part: | SDC-5 |
| UPC: | 622988060342 |
| Condition: | New |
Currently Unavailable.
Ships from and sold by Aztek Computers.
Added On: Nov 7, 2023 | Updated On: Feb 8, 2026 | Views: 108

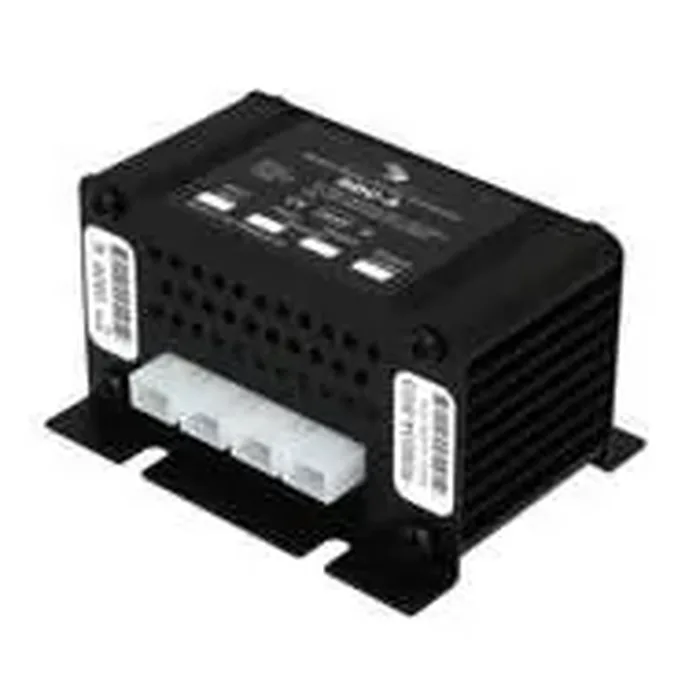

5A Non-Isolated 24V to 12V DC-DC Converter
This high-efficiency switch-mode step-down DC-DC converter transforms an input voltage of 24 VDC (nominal range 20 VDC to 35 VDC) into a regulated output voltage of 12 VDC (13.8 VDC) at 5 Amps. The SDC-23 model is designed for non-isolated operation, meaning there is no galvanic isolation between the input and output, making it suitable for negative ground systems. Its features include overvoltage and short-circuit protection, temperature-compensated current limiting, additional output-side overvoltage protection, and input-side protections against overvoltage, transients, and reverse polarity. The SDC-23 is tailored for heavy-duty applications.
Features:
- Advanced switch-mode design
- Mountable in various locations
- Compact and lightweight
- Reverse polarity protection included
- High efficiency for energy saving
- Cycle-by-cycle current limiting
- Integrated overvoltage protection
- Short circuit protection incorporated
Applications:
- Earth moving equipment
- Heavy trucks
- Buses
- Marine vehicles
- CB radios
- 12 Volt lighting
- AM/FM sound systems
WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov.
Specifications
- Advanced switch-mode design
- Mountable in various locations
- Compact and lightweight
- Reverse polarity protection included
- High efficiency for energy saving
- Cycle-by-cycle current limiting
- Integrated overvoltage protection
- Short circuit protection incorporated
