Schaefer 32-77 Schaefer Twin Sheet Lead Block Black 25x3mm
by Schaefer Marine
| Price: | $352.70 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
only 2 left in stock order soon

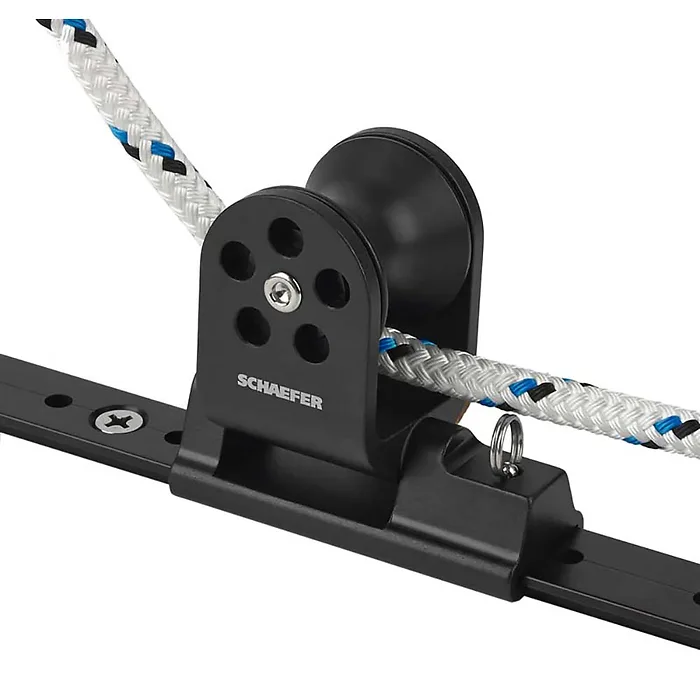

Schaefer 32-77 Twin Sheet Lead Block - Black 25x3MM
This high-performance twin sheet lead block is designed for optimal functionality. It features an anodized aluminum body made from durable 6061-T6 aluminum, allowing it to articulate for precise lead management. The anodized aluminum sheave operates on low-friction Nomex™/Teflon™ bearings, providing exceptional strength and efficiency. The pin stop mechanism simplifies line adjustments, making it an essential component for your sailing needs.
Specifications
- Track Size: 1" x 1/8" (25 mm x 3 mm)
- Boat Size: Up To LOA 29'
- Maximum Displacement: 5000 lbs.
- Sail Area Capacity: 315 sq. ft (8m2, 2270 kg)
- Sheave Diameter: 1-1/2" (38 mm)
- Maximum Line: 2 x 1/2" (13 mm)
- Length: 3-1/2" (89 mm)
- Width: 1-11/32" (34 mm)
- Height: 3-9/32" (83 mm)
- Bearing Height: 1-29/32" (49 mm)
- Safe Working Load: 2500 lbs. (1135 kg)
- Weight: 10 oz. (284 g)
