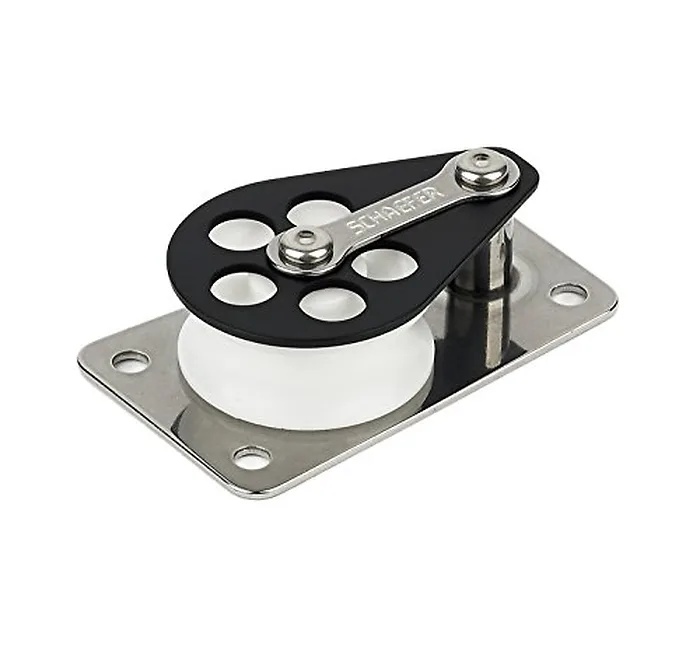

Schaefer 303-09 Schaefer Series 3 Flat Basealum Cheekdelrin Sheave
by Schaefer Marine
| Price: | $78.91 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
Series 3 Flat Base/Alum Cheek/Delrin Sheave
Delrin™ plain bearing sheave ensures smooth operation and high safe working load. Stainless Steel base distributes loads to a larger surface area.
Specifications:
- Sheave Dia. 1-7/16" (37 mm)
- Max Line 7/16" (11 m)
- Length 2-7/8" (73 mm)
- Width 1-3/4" (44 mm)
- Height 3/4" (19 mm)
- Fasteners (4) #10- RH (5 mm)
- C/C 2-3/8" (60 mm)
- SWL 1000 lbs. (450 kg)
- Weight Alum. 2.5 oz. (71 g)
Specifications
Series 3 Flat Base/Alum Cheek/Delrin Sheave
Delrin™ plain bearing sheave ensures smooth operation and high safe working load. Stainless Steel base distributes loads to a larger surface area.
Specifications:
- Sheave Dia. 1-7/16 (37 mm)
- Max Line 7/16 (11 m)
- Length 2-7/8 (73 mm)
- Width 1-3/4 (44 mm)
- Height 3/4 (19 mm)
- Fasteners (4) #10- RH (5 mm)
- C/C 2-3/8 (60 mm)
- SWL 1000 lbs. (450 kg)
- Weight Alum. 2.5 oz. (71 g)
