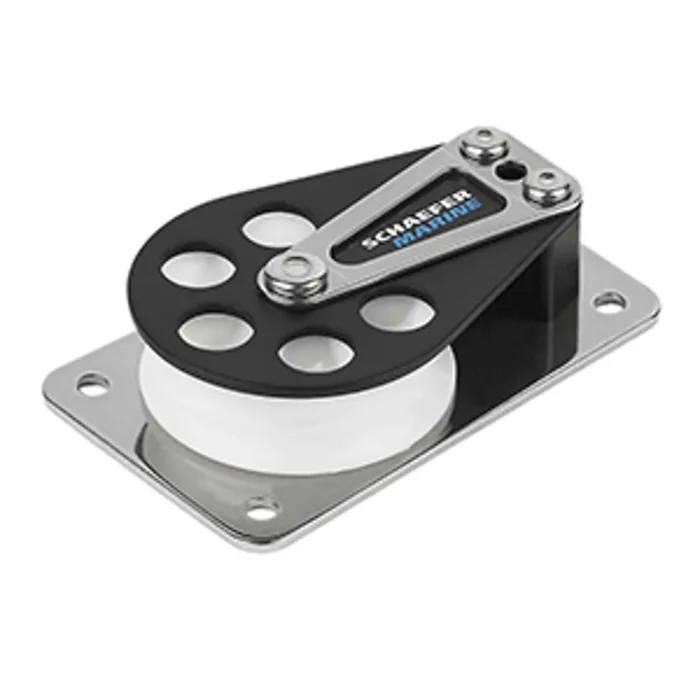

Schaefer 504-11 Schaefer Series 5 Flat Basealum Cheekdelrin Sheave
by Schaefer Marine
| Price: | $94.90 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
only 4 left in stock order soon
Series 5 Flat Base/Alum Cheek/Delrin Sheave
Delrin™ sheave ensures smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area.
Specifications:
- Sheave Diameter 2" (51 mm)
- Max. Line 7/16" (11 mm)
- Length 3-5/8" (92 mm)
- Width 2-7/32" (57 mm)
- Height 7/8" (22 mm)
- Fasteners (4) #10 RH (5 mm)
- C/C 3" (76 mm)
- SWL 1750 lbs. (795 kg)
- Weight 5.9 oz. (167g)
- Max. Line 7/16" (11mm)
Specifications
Series 5 Flat Base/Alum Cheek/Delrin Sheave
Delrin™ sheave ensures smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area.
Specifications:
- Sheave Diameter 2 (51 mm)
- Max. Line 7/16 (11 mm)
- Length 3-5/8 (92 mm)
- Width 2-7/32 (57 mm)
- Height 7/8 (22 mm)
- Fasteners (4) #10 RH (5 mm)
- C/C 3 (76 mm)
- SWL 1750 lbs. (795 kg)
- Weight 5.9 oz. (167g)
- Max. Line 7/16 (11mm)
