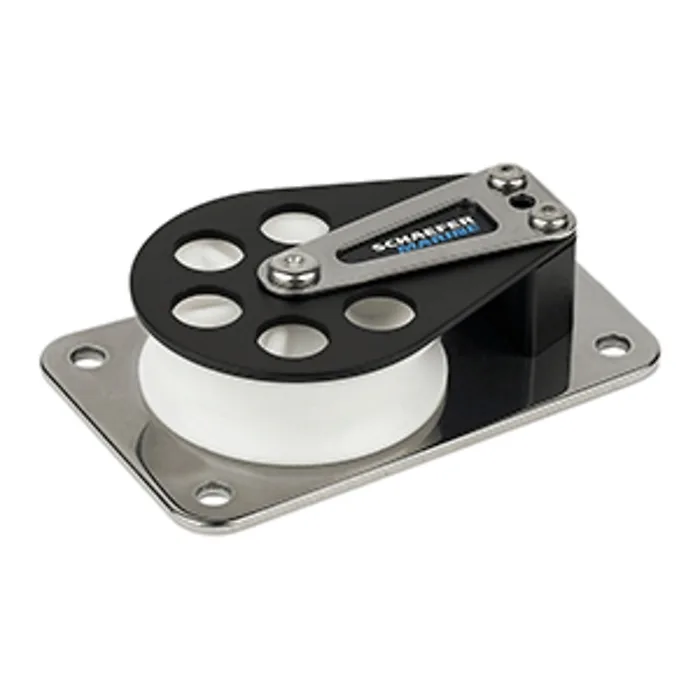

Schaefer 704-11 Schaefer Series 7 Flat Basealuminum Cheekdelrin Sheave
by Schaefer Marine
| Price: | $144.41 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
only 4 left in stock order soon
Series 7 Flat Base/Aluminum Cheek/Delrin Sheave
Delrin™ sheave ensures smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area.
Specifications
Series 7 Flat Base/Aluminum Cheek/Delrin Sheave
Delrin™ sheave ensures smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area.
Specifications:
- Sheave Dia. 2-3/8 (60 mm)
- Max. Line 1/2 (13 mm)
- Length 4-3/8 (111 mm)
- Width 2-3/4 (70 mm)
- Height 1 (25 mm)
- Fasteners (4) 1/4 RH (6 mm)
- C/C 3-5/8 (92 mm)
- C/C (wide end) 2 (51mm)
- C/C (narrow end) 1-9/16
- SWL 2250 lbs. (1020 kg)
- Weight Alum. 9.6 oz. (272 g)
