Schaefer 504-82 Schaefer Spring Loadedlined Slidealuminum F1" Ttrack
by Schaefer Marine
| Price: | $215.89 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
only 3 left in stock order soon

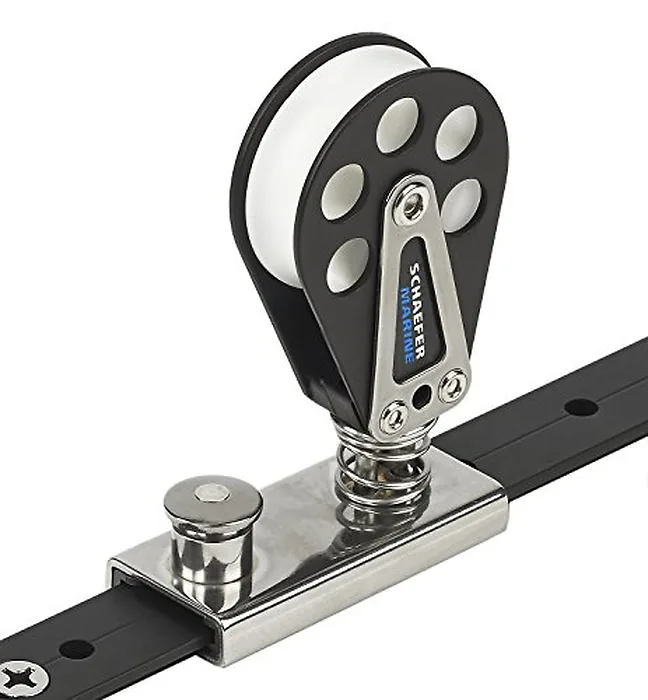

Spring Loaded/Lined Slide/Aluminum for 1" T-Track
Delrin™ sheave ensures smooth operation and high safe working load. Anodized aluminum cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment.
Specifications:
- Track Size 1" x 1/8" (25 mm x 3 mm)
- Max. Boat Length- 27' (8m)
- Max. Boat Weight- 5000 lbs. (2270 kgs)
- Sail Area- 315 sq. ft (29 m2)
- Sheave Diameter 2" (51 mm)
- Max Line 7/16" (11 mm)
- Length 3" (76 mm)
- Width 1-1/4" (31 mm)
- Height 4-5/32" (105 mm)
- Bearing Height 2-7/32" (56 mm)
- SWL 1750 lbs. (795 kg)
- Weight 7.0 oz. (198 g)
Specifications
Spring Loaded/Lined Slide/Aluminum for 1 T-Track
Delrin™ sheave ensures smooth operation and high safe working load. Anodized aluminum cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment.
Specifications:
- Track Size 1 x 1/8 (25 mm x 3 mm)
- Max. Boat Length- 27 (8m)
- Max. Boat Weight- 5000 lbs. (2270 kgs)
- Sail Area- 315 sq. ft (29 m2)
- Sheave Diameter 2 (51 mm)
- Max Line 7/16 (11 mm)
- Length 3 (76 mm)
- Width 1-1/4 (31 mm)
- Height 4-5/32 (105 mm)
- Bearing Height 2-7/32 (56 mm)
- SWL 1750 lbs. (795 kg)
- Weight 7.0 oz. (198 g)
