Siren SM-ACC-DCRE Pam4 Wired Dc Relay
by Siren Marine
| Price: | $40.52 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
only 3 left in stock order soon

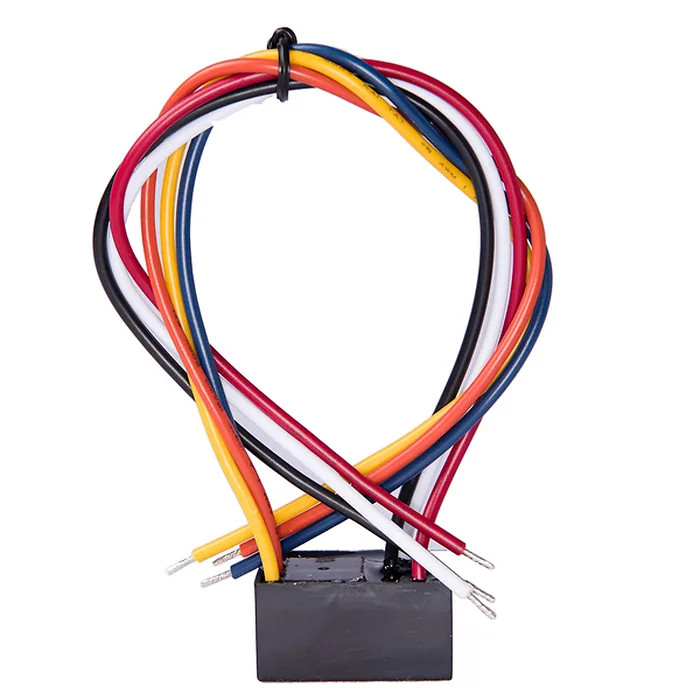

PAM4 Wired DC Relay
The Siren Marine DC Accessory Relay allows users to control any 12v onboard devices, such as A/C, deck or spreader lights, sirens, or strobe lights.
- Dimensions: 1.5x0.75x1.19in (box) 11.3in (wire)
- Relay may be energized across a wide voltage range from 9VDC to 32VDC.
- Ideal for 12VDC and 24VDC circuits.
- 20mA operating current is constant across the operating range.
- Input voltages are polarity-sensitive and diode-protected.
- Relay is required to power or switch 12V systems that draw more than 1 Amp via the internal outputs of the MTC.
- Works with MTC and Siren 3 Pro
Specifications
PAM4 Wired DC Relay
The Siren Marine DC Accessory Relay allows users to control any 12v onboard devices, such as A/C, deck or spreader lights, sirens, or strobe lights.
- Dimensions: 1.5x0.75x1.19in (box) 11.3in (wire)
- Relay may be energized across a wide voltage range from 9VDC to 32VDC.
- Ideal for 12VDC and 24VDC circuits.
- 20mA operating current is constant across the operating range.
- Input voltages are polarity-sensitive and diode-protected.
- Relay is required to power or switch 12V systems that draw more than 1 Amp via the internal outputs of the MTC.
- Works with MTC and Siren 3 Pro
