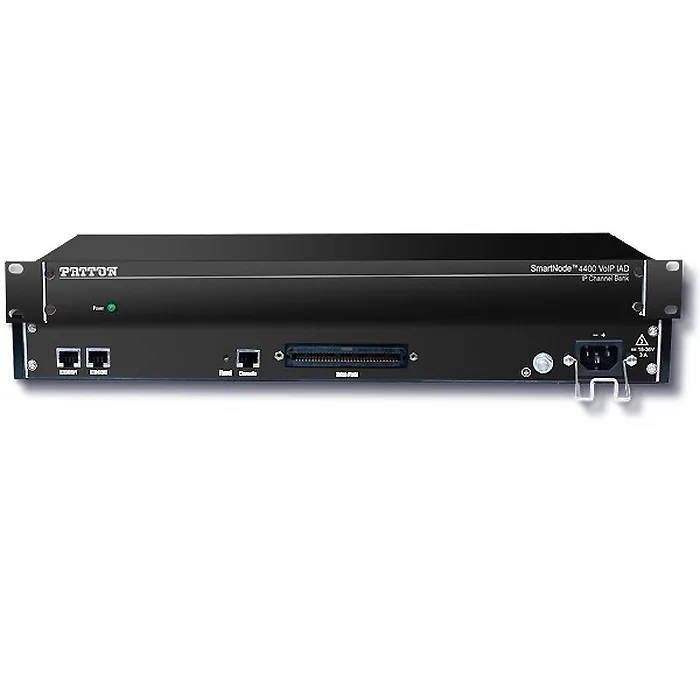

Patton PAT-SN4412-JS-UI Smartnode Ipchannelbank 12 Fxs Voip Gwr
by Patton

• ☆☆☆☆☆
• 3 customer reviews

Currently Unavailable.

Ships from and sold by Aztek Computers.

Added On: Sep 1, 2022 | Updated On: Dec 11, 2024 | Views: 386

- Two 10/100 Ethernet ports- Complete IP access router- DHCP Client & server- Packet fragmentation- Static firewall, NAT, NAPT RFC 1631 access control lists- DMZ port- Voice priority, DownStreamQoS, Traffic management, shaping and policing- IEEE 802.1p, TOS, DiffServ labeling- IEEE 802.1Q, VLAN tag insertion/deletion (4096 VLAN IDs, multiple VLAN support- Web/HTTP, CLI with local console and remote Telnet access- TFTP configuration & firmware loading • SNMP MIB II and product MIB- Secure auto-provisioning for both firmware and unit/subscriber configuration- Built-in diagnostic tools (trace, debug, call generator)- 2-wire Loopstart on 50pin (12 to 24 channels) or 64pin (32 channels) Telco connector- Short haul loop 1.1km @3REN • EuroPOTS (ETSI EG201188)- Programmable AC impedance, feeding, ring and on-hook voltage- Caller-ID FSK and ITU V.23/Bell 202 generation- SIPv2 H.323v4 (simultaneously with B2BUA capability)- SIP call transfer, redirect- DTMF in-band & out-of-band- All tones programmable (dial, ringing, busy)- CODEC G.711 a-law/mu-law, G.723, G.729ab- G.726, G.727. T.38 fax relay- G.711 transparent fax and bypass- 9-in. rack-mount chassis
