Southco C3-803 Grabber Catch Latch Side Mount Black Pullup Force 13n 3lbf
by Southco
| Price: | $16.42 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.

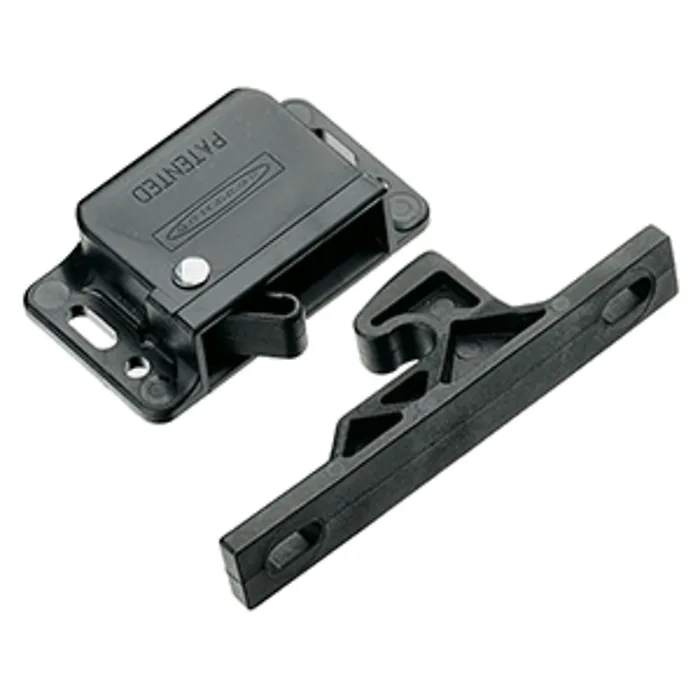

Grabber Catch Latch - Side Mount - Black - Pull-Up Force 13N (3lbf)
Features:
- Spring-loaded over-center latching
- One assembly includes catch and keeper
- Material and Finish: PC/ABS, black
Performance Details:
- Operating temperature range: -30ºC (-20ºF) to 60ºC (140ºF)
- Flammability rating: UL94-HB
Installation Notes:
- Orient keeper to latch. The arrow on the keeper should point towards the cam. Mount to door and adjust for smooth latching.
- Minimum distance from frame (or surface on which catch subassembly is mounted) to centerline of door hinge is 150 (5.9)
Specifications
Grabber Catch Latch - Side Mount - Black - Pull-Up Force 13N (3lbf)
Features:
- Spring-loaded over-center latching
- One assembly includes catch and keeper
- Material and Finish: PC/ABS, black
Performance Details:
- Operating temperature range: -30ºC (-20ºF) to 60ºC (140ºF)
- Flammability rating: UL94-HB
Installation Notes:
- Orient keeper to latch. The arrow on the keeper should point towards the cam. Mount to door and adjust for smooth latching.
- Minimum distance from frame (or surface on which catch subassembly is mounted) to centerline of door hinge is 150 (5.9)
