Siig CE-H25111-S1 Streaming Compatible Easily Records Hdmi Signals Through Pcie Slot With Low Late
by Siig
| Price: | $185.50 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
Easily capture, record, or stream from any HDMI source such as DVD players, media players, game consoles, or set-top boxes

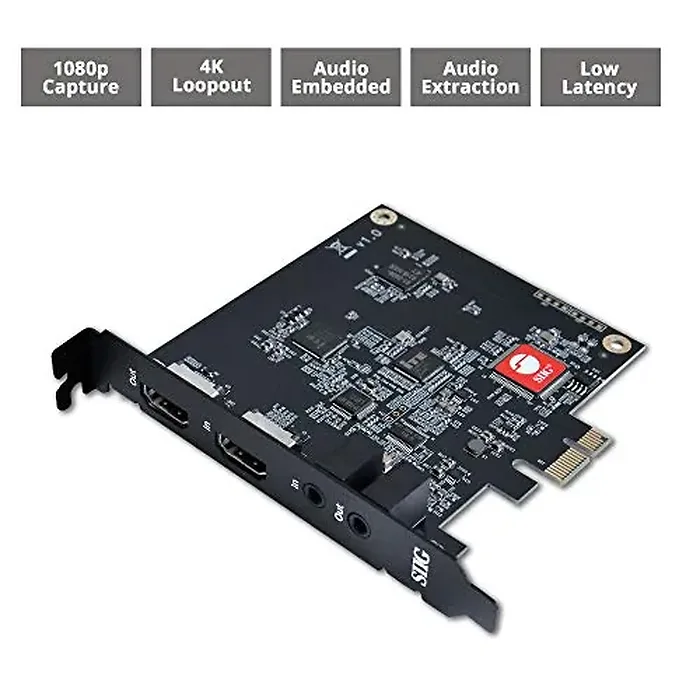

SIIG's PCI-e Capture Card Through HDMI allows you to easily records HDMI signals through PCIe slot with low latency, ideal for gaming, meetings, or live streaming. It captures and records in 1080P @60Hz while simultaneously gaming in 4K @60Hz display through the HDMI output.
Specifications
Chipset:
EJ168A + ITE6663+ ITE6881
Support HDMI input and loop-out max resolution 4K at 60Hz (YUV 4:4:4)
Support video capture/record/stream:
1080p at 60Hz (max)
Support line-in mix with HDMI audio
Bandwidth:
Input video up to 600MHz
Recording mode:
H.264 (software compression)
Recording video Format:
MJPG/YUY2
PCIe version:
PCIe Gen 2.0
Installation form factor:
Full profile
Bus type:
PCI Express x1 slot
Product:
Color: Black
Connector:
1x 19-pin HDMI Female, Input
1x 19-pin HDMI Female, Loop-out
1x 3.5mm Audio, Aux input
1x 3.5mm Audio, Output
Environmental conditions:
Operating temperature: 32 to 140 degrees F
Storage temperature: 14 to 178 degrees F
Relative humidity: 5 to 90% RH (non-condensing)
TAA compliant
Certifications/Standards:
FCC, CE, RoHS
Compatibility:
- Does not capture or record HDCP protected signals
- HDCP protected signals will pass through to the HDMI loop-out port
- 3rd party software such as OBS Studio, downloadable from https://obsproject.com
Item Dimension (L"xW"xH")
5 x 1 x 5
Weight
1.00 LB
Warranty Information
3 years
