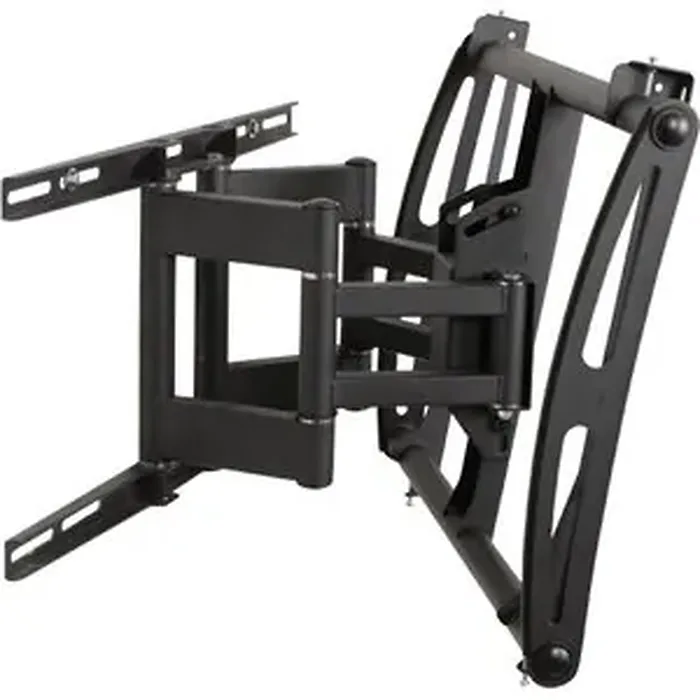

Premier AM175 Swingout Mount
by PREMIER MOUNTS

Specifications

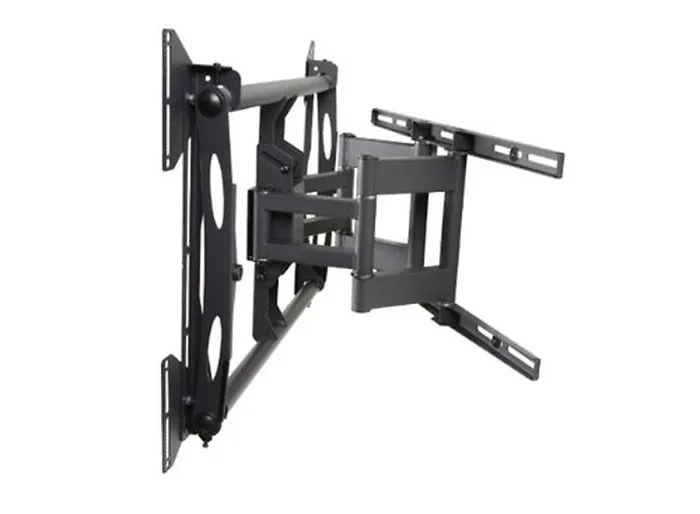

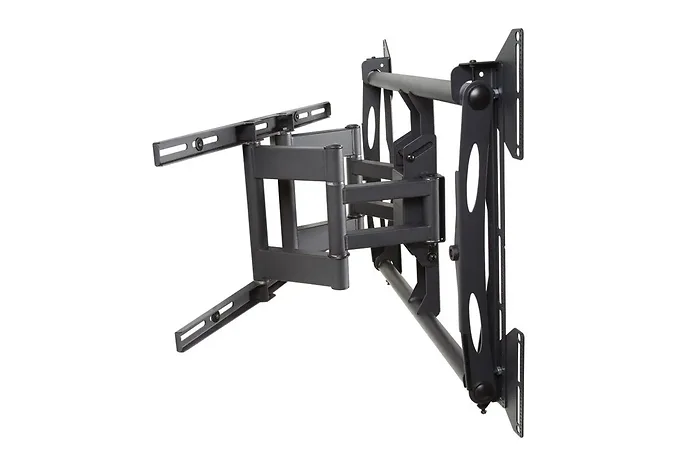

General InformationThe AM175 is a swingout mount for flat-panel displays up to 175 lb./79.5 kg. It fits displays with a mounting pattern of 200 x 200 mm to 650 x 820 mm. The AM175 allows up to 45 of swivel, 10 of tilt and extends 3.1 to 15.9 in. from the wall. The patented Griplates (US Patent number 8,035,757 B2) support the flat-panel and hold the display tight on its mounting brackets.Product InformationNumber of Displays Supported: 1Maximum Load Capacity: 175 lbPhysical CharacteristicsDepth: 16"MiscellaneousPackage Contents: Adapters Reach Extra Wide Mounting Patterns4 x 5/16" Flat WashersAdapter Plates and Hardware4 x Adapter Plates4 x M8 Nylon Nuts1 x Swingout Arm2 x Universal Mounting Brackets6 x 5/16" Flat Washers8 x Griplate6 x 5/16" x 3" Lag Bolts1 x Thread Depth Indicator1 x Level8 x (M4 x 16mm) Screws4 x (M4 x 25mm) Screws6 x (M5 x 12mm) Screws6 x (M5 x 16mm) Screws4 x (M5 x 25mm) Screws6 x (M5 x 20mm) Screws4 x (M5 x 50mm) Screws8 x (M6 x 12mm) Screws6 x (M6 x 20mm) Screws6 x (M6 x 30mm) Screws6 x (M8 x 20mm) Screws6 x (M8 x 25mm) Screws6 x (M8 x 30mm) Screws4 x (M8 x 35mm) Screws4 x (M8 x 70mm) Screws6 x " Nylon Spacer (Large)12 x " Nylon Spacer (Large)6 x 1" Nylon Spacer6 x " Nylon Spacer (Small)6 x 9/16" Nylon Spacer4 x Nylon Sleeve6 x 5/16" Flat Washer (Metal)Additional Information: Scissor-style mount extends straight from wallExtends from 3.5"-16"Lightweight tubular design makes installation easyFeatures patented Griplate SystemCombine with INW-AM325 In-wall box for a "zero profile" installationPivot: +/-45Mounting Pattern: 200mm x 200mm (Min) - 700mm x 500mm (Max)
