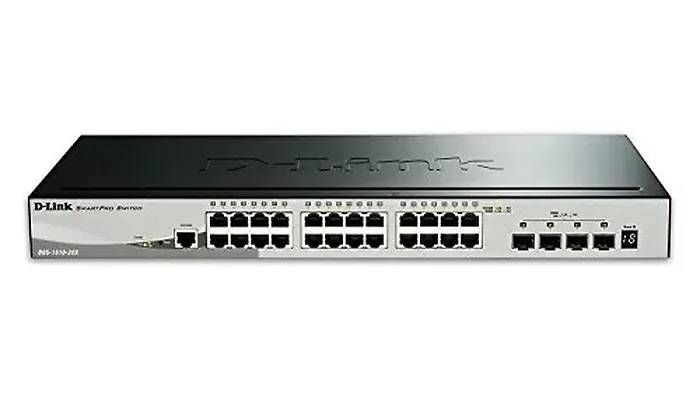

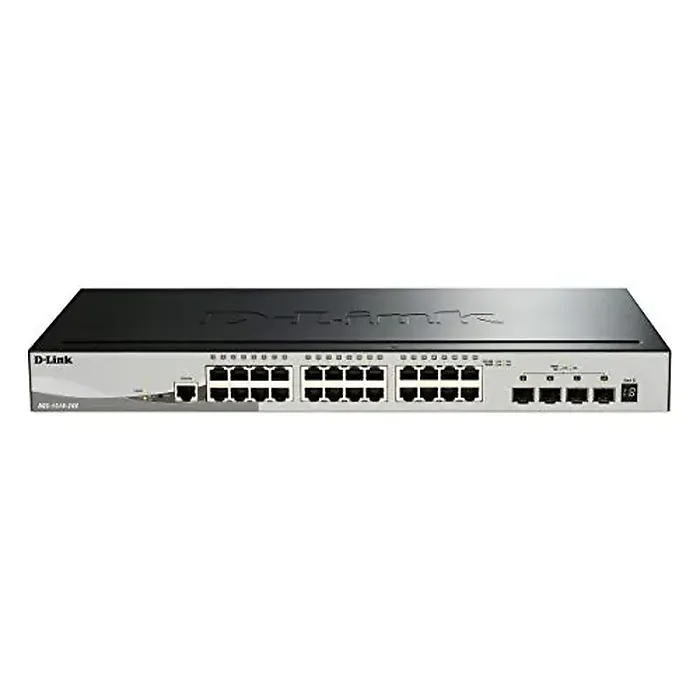

D-link DGS-1510-28X Switch 1u Wired Networking Ports Qty: 28 10 Gigabit Eth
by D-Link

Specifications

Port Standards and Functions
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
802.3ae 10 GbE,
IEEE 802.3x Flow Control for Full-Duplex Mode,
Auto-negotiation Number of Ports
DGS-1510-28X: 24 10/100/1000 Mbps, 4 10G SFP+

Network Cables
UTP Cat. 5, Cat. 5e (100 m max.) EIA/TIA-568 100-ohm STP (100 m max.)

Full/Half Duplex
Full/half duplex for 10/100 Mbps and Gigabit speed

Media Interface Exchange
Auto or configurable MDI/MDIX Performance
Switching Capacity
DGS-1510-28X: 128 Gbps

Transmission Method
Store-and-forward

MAC Address Table
16,000 entries per device

MAC Address Update
Up to 512 static MAC entries,
Enable/disable auto-learning of MAC addresses

Maximum 64 bytes Packet Forwarding Rate
DGS-1510-28X: 95.24 Mpps

Packet Buffer Memory
DGS-1510-28X: 1.5 MB per device AC Input
100 to 240 VAC 50/60 Hz internal universal power supply

Maximum Power Consumption
DGS-1510-28X: 22.3 W

Standby Power Consumption
DGS-1510-28X: 14.6W/100V 15.2W/240V

Smart Fan Quantity
DGS-1510-28X: 1 Acoustics
DGS-1510-28X: 42.7 dB(A)

Heat Dissipation
DGS-1510-28X: 76.0 BTU/hr

Diagnostic LEDs
Power/Stacking ID/Fan (per device),
Link/Activity/Speed (per 10/100/1000 Mbps port),
Link/Activity/Speed (per Gigabit SFP port),
Link/Activity/Speed (per 10G SFP+ port)

Certifications
CE, FCC, C-Tick, VCCI, BSMI, CCC
Safety cUL, CB Item Dimension (L"xW"xH"):
13.7 x 20.15 x 3.6

Weight:
7.15 lb

Warranty Information:
Limited Lifetime
