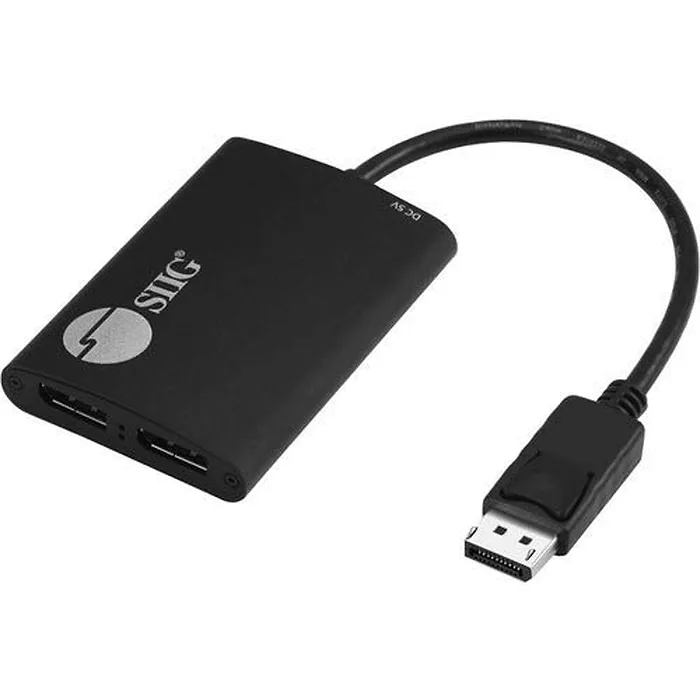

Siig CE-DP0H11-S1 Technical Specs Dp To Dp Mst Hub21.6gbps 7.1 Surround Audio Mirror Extend And
by Siig

Specifications

Chipset:
STDP4320
Maximum resolution up to 3840x2160 at 30Hz
Compliant with DisplayPort 1.2a specifications
Supports 7.1 Ch audio up to 192kHz sampling rate Display Modes:
Mirror, Extend, Panoramic video wall Note:
AMD Eyefinity or NVIDIA Surround technology graphics adapter is required to support Panoramic Video Wall mode Total Bandwidth 21.6Gbps (100%): 3840x2160 at 30Hz (40%), 2560x1600 at 60Hz (38%),2560x1440 at 60Hz (35%), 1920x1200 at 60Hz (30%), 1920x1080 at 60Hz (22%) Note:
Make sure the total combined resolution bandwidth among all displays DOES NOT exceed 100%. Product:
DisplayPort cable (embedded):
12.6 inches Color:
Black Housing:
Aluminum Connector:
1x 20-pin, DisplayPort, Male, Input
2x 20-pin, DisplayPort, Female, Output
1x 5-pin, Micro USB, Female, power Input (at least 5V/300mA from USB port) Micro USB power cable:
19 inches Environmental conditions:
Operating temperature:
32 to 122 degrees F Storage temperature:
14 to 158 degrees F Relative humidity:
20% to 90% RH (non-condensing) Certifications/Standards:
FCC, CE, RoHS
TAA compliant

System Requirements
Desktop or laptop computer with an available DisplayPort 1.2 MST output
AMD Eyefinity or NVIDIA Surround technology graphics adapter is required to support Panoramic Video Wall mode
Requires GPU / graphics card to support at least 2 external displays to use both video ports at the same time with extended mode
USB power source (at least 5V/300mA) Note:
Mac OS does not support MST function and will only mirror the displays.

Package contents
1x2 DP 1.2 to DisplayPort MST Hub
Micro-USB power cable
User Reference Guide
