Siig CE-H25311-S1 Technical Specs Hdmi Over Ip Matrixvideo Wall Receiver True 4k Performance Hdmi
by Siig
| Price: | $295.05 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
only 6 left in stock order soon

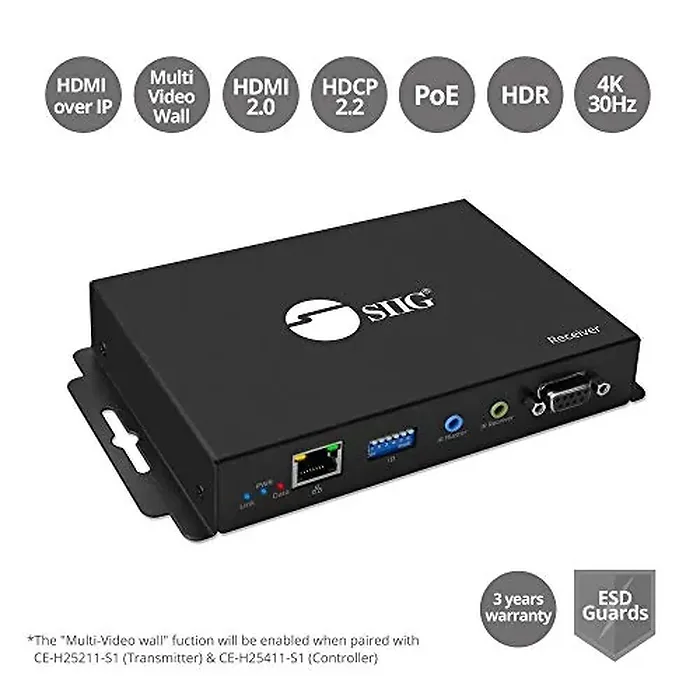

The SIIG HDMI 2.0 Video Wall Over IP Multicast System Receiver is designed for high-performance video distribution over IP networks. It supports stunning 4K video resolutions and advanced audio features for immersive multimedia experiences. This receiver allows seamless integration into video walls and multi-display setups, providing a reliable solution for commercial and professional environments.
Specifications
- Chipset: Aspeed
- Compliance: HDMI 2.0a and HDCP 2.2
- Input resolution: Up to 4Kx2K at 60Hz (YUV 4:4:4, 8bits)
- Output resolution: Up to 4Kx2K at 30Hz
- Resolution support: 480p, 720p, 1080i, 1080p, 4K at 30Hz
- Distance: 396ft (CAT6), 4Kx2K at 30Hz
- Note: Transmission distance varies depending on cable quality (100% copper recommended)
- HDMI cable length: Up to 5m (Input and Output)
- Audio support: Surround sound (up to 7.1ch) or stereo digital audio
- Latency: 23ms for 1080p at 60Hz
- IR frequency: 20KHz to 60KHz
- ESD protection: Human body model- +/-15kV (air-gap) and +/-8kV (contact)
- Housing material: Metal
- Housing color: Black
- Connectors: 1x 19-pin HDMI Type-A (Female, Spare input), 1x 19-pin HDMI Type-A (Female, Output), 1x 9-pin RS-232 (Female), 1x 3.5mm jack (audio out), 1x 3.5mm jack (IR Blaster), 1x 3.5mm jack (IR Receiver), 1x 8-pin RJ45 (Input), 2x 4-pin USB 2.0 (Type A, Female), 1x Power jack, 1x 6-pin DIP Switch (video channel selection), 1x DIP Switch (debug/bypass mode)
- Power adapter: Input: 100-240V, 50-60Hz; Output: DC 5V/2A (UL Listed: E135856/Class VI)
- Environmental conditions: Operating temperature: 32 to 104 degrees F; Storage temperature: -4 to 140 degrees F; Relative humidity: 20% to 90% RH (non-condensing)
- TAA Compliant
- Certifications/Standards: FCC, CE, RoHS
- Item dimensions: 8 x 2 x 4 inches
- Weight: 1.07 lbs
- Warranty: 3 years
