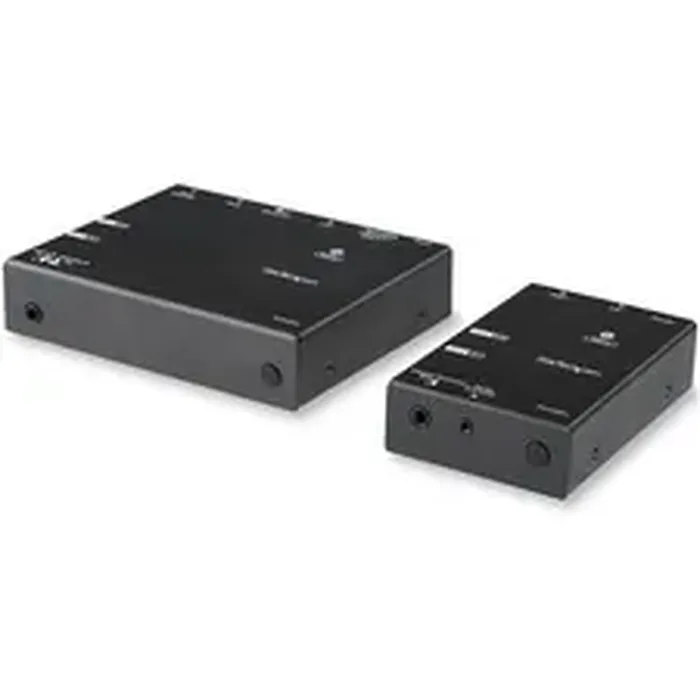

Startech ST12MHDLNHK The Hdmi Over Ip Receiver Works With The Hdmi Over Ip Extender To
by STARTECH
| Price: | $434.91 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
Extend and control HDMI video over your existing LAN to create a state-of-the-art network of video displays in a variety of environments where digital signage is required.
Specifications
Manufacturer:StarTech.com
Manufacturer Part Number:ST12MHDLNHK
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:HDMI Over IP Extender with Video Compression - 1080p
Marketing Information:
ExtendandcontrolHDMI videooveryour existingLANtocreateastate-of-the-artnetworkofvideodisplaysin a variety ofenvironmentswhere digital signage is required.
Ideal for Universities, Offices, and RestaurantsReliably Extend Compressed HDMI VideowithBandwidth Efficiency
This extender uses advanced compression to distribute high-qualityHDMI videoover yournetwork, with minimal bandwidth requirements.
With advanced compression technology, broadcasting your video signal requires only 6 - 12 Mbpsof local area network bandwidth, when in operation for each kit.
Flexible & ScalableDeployment Options
TheHDMI over LANextenderoffers many configurations to accommodate your set up.
This HDMI video extender provides four ways to control your video network configurations.
- Rotary DIP switches located on the Tx and Rx
- Your computer connected to the transmitter or receiver via a serial cable
- Over IP using any device equipped with a browser on the same local area network(i.e. tablet, laptop, smartphone)
- Infrared (IR)remote control using the includedreceiver
ComprehensiveProduct Testing&ExpertTechnical Support
StarTech.comconducts thoroughcompatibility and performancetestingonallour productstoensure we are meeting orexceeding industry standardsand providinghigh-quality products to our customers. OurlocalStarTech.comTechnicalAdvisorshave broad product expertiseandwork directly with StarTech.comEngineers toprovide support for our customersboth pre and post-sales.
Product Type:Video Extender Transmitter/Receiver
Connectivity Technology:Wired
Number of Input Devices Supported:1
Number of Output Devices Supported:1
Maximum Operating Distance:164.04 ft
Graphics Modes:Full HD
Maximum Video Resolution:1920 x 1080
Network (RJ-45):Yes
HDMI In:Yes
HDMI Out:Yes
Number of Network (RJ-45) Ports:2
Number of HDMI Inputs:1
Number of HDMI Outputs:1
Media Type Supported:Twisted Pair
Twisted Pair Cable Standard:Category 6
Product Color:Black
Transmitter Height:1.10"
Transmitter Width:7"
Transmitter Depth:12.20"
Receiver Height:1.10"
Receiver Width:7"
Receiver Depth:12.20"
Form Factor:
- Rack-mountable
- Desktop
Transmitter Weight (Approximate):7.05 lb
Receiver Weight (Approximate):7.05 lb
Package Contents:
- 1 x HDMI Over IP Transmitter
- 1 x HDMI Over IP Receiver
- 2 x Universal Power Adapters (NA, EU, UK, ANZ)
- 2 x Mounting Brackets
- 2 x CAT5 Cables
- 1 x Plastic Screwdriver
- 1 x IR Remote Control
- 2 x USB-A to Mini USB-B Cable
- 1 x DB9 to 2.5 mm Serial Adapter Cable
- 1 x IR Blaster
- 1 x IR Receiver
- 8 x Rubber Feet
- 1 x Instruction Manual
Environmentally Friendly:Yes
Environmental Certification:
- RoHS
- WEEE
- REACH
Country of Origin:Taiwan
TAA Compliant:Yes
Limited Warranty:2 Year
