Specifications
Hardware Features
Interface: Gigabit Ethernet (RJ-45)Port x 1(Support 802.3af PoE and Passive PoE)
Button: Reset
Power Supply: 802.3af PoE and 24 Passive PoE(PoE Adapter Included)
Power Consumption: 10.5W
Antenna: 2.4GHz: 2 x 3dBi, 5GHz: 2 x 4dBi
Mounting: Pole/Wall Mounting (Kits included)
Hardware Watch Dog: Yes Wireless Features
Wireless Standards: IEEE 802.11a/b/g/n/ac
Frequency: 2.4GHz, 5GHz
Signal Rate:
802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS equal 1 to 2 VHT20/40/80) 2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS equal 1 to 3)
802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 5.5, 11Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Functions:
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
Airtime Fairness
Beamforming
Band Steering
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security:
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
Transmission Power:
CE: less than 20dBm(2.4GHz,EIRP), less than 23dBm(5GHz,EIRP)
FCC: less than 30dBm(2.4GHz, EIRP), less than 30dBm(5GHz, EIRP) Management
Omada Controller Software: Yes
Email Alerts: Yes
Management MAC Access Control: Yes
System Logging Local/Remote Syslog: Yes
Web-based Management: Yes
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes Others
Certification: CE, FCC, RoHS
Package Contents:

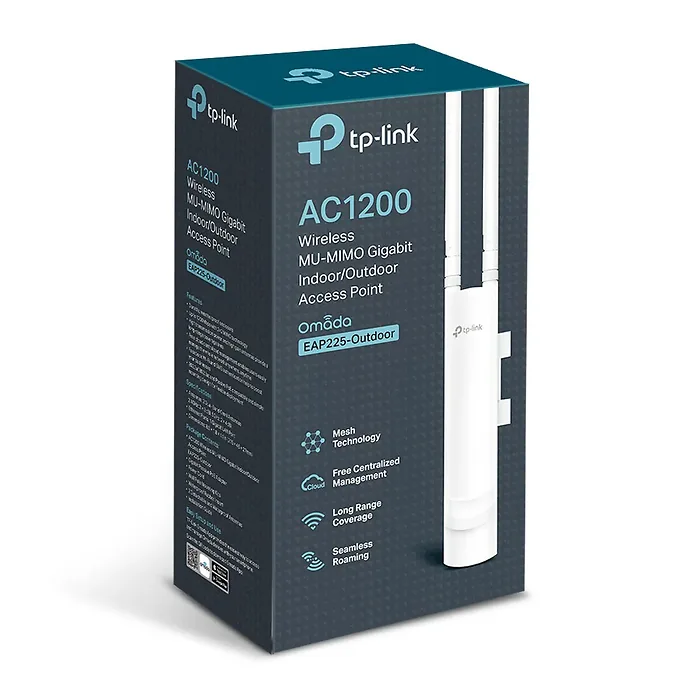

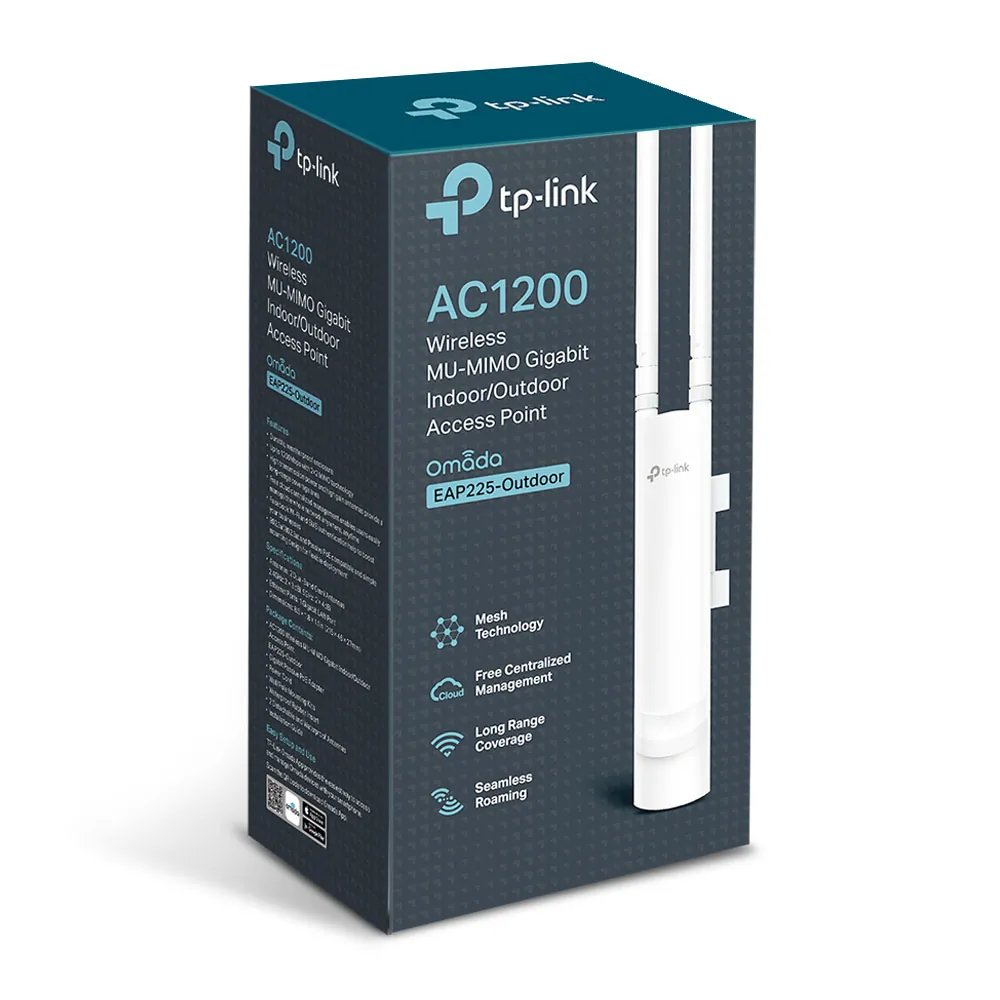

AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point
EAP225-Outdoor
Power Adapter
Mounting Kits
Installation Guide
Environment:
Operating Temperature: -30oC-70oC (-22oF-158oF)
Storage Temperature: -40oC-70oC (-40oF-158oF)
Operating Humidity: 10%-90% non-condensing
Storage Humidity: 5%90% non-condensing Item Dimension (L"xW"xH")
6 x 4 x 11
Weight
2 lbs
Warranty Information
Limited Lifetime Warranty
