Trident 305-0386 38" X 50' Epa Compliant Outboard Fuel Hose
by Trident Marine

• ☆☆☆☆☆
• 1 customer reviews (jump to section)

In Stock.
only 7 left in stock order soon

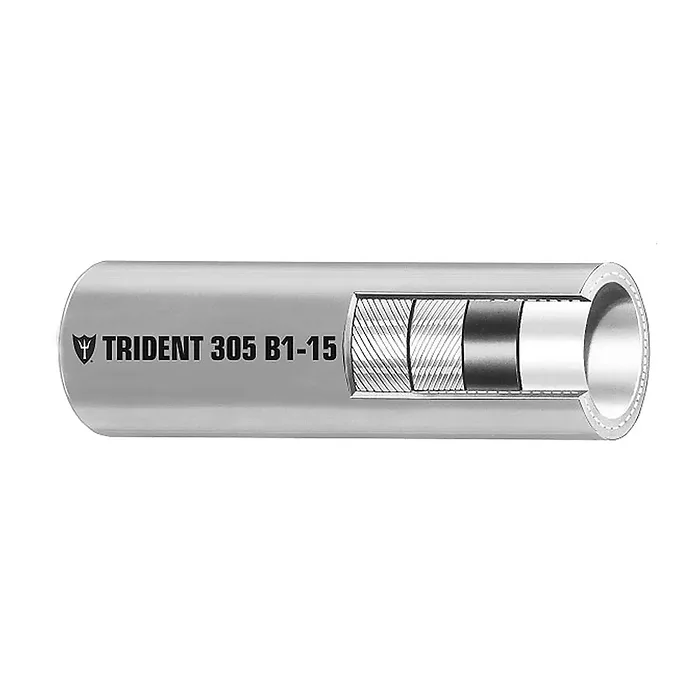

3/8" x 50' EPA Compliant Outboard Fuel Line Hose

This fuel line hose features a robust barrier liner that prevents fuel from coming into direct contact with rubber, effectively reducing fuel permeation and ethanol degradation. It is designed to withstand the rigors of marine environments, making it suitable for a variety of fuel types including gasoline, alcohol blends, and diesel.

Key Features:

• Exceptional resistance to fuel permeation, aging, heat, cold, and ozone.
• Flexible construction for easy bending and secure fitting retention.
• Compatible with gasoline (including ethanol blends up to E85) and diesel (including biodiesel blends).
• Meets EPA certification standards and CARB Executive Order for low permeation Type B1-15.
• Accepted by NMMA and CE certified.

Applications:

• Ideal for marine fuel distribution, return, vent, and transfer lines.
• Compatible with all marine fuels including gasoline, alcohol blends, diesel, and biodiesel.

Construction Specifications:

• Inner Tube: Fluoroplastic Internal Barrier.
• Outer Cover: Gray CPE Rubber.
• Reinforcement: 2-Spiral Polyester Plies.
• Temperature Range: -20°F to 212°F (-28°C to 100°C).
• Length: 50’ (15m) Boxed.

Detailed Specifications:

• Inner Diameter: 3/8" (9.50mm).
• Outer Diameter: 0.588" (14.9mm).
• Burst Pressure: 175 psi (1.21 mpa).
• Working Pressure: 35 psi (0.24 mpa).
• Bend Radius: 4" (101.6mm).
• Weight: 10.5 lb/100 ft. (0.156 kg/m).
• Permeation Rate: 5.0 (Standard is 15g/m²/24hrs).

*The #305 series exceeds ABYC H-24, SAE J1527, ISO 8469 B1, USCG Type B1-15.
