Trident 305-0566 516" X 50' Epa Compliant Outboard Hose
by Trident Marine

• ☆☆☆☆☆
• 1 customer reviews (jump to section)

In Stock.
only 4 left in stock order soon

Trident Marine 5/16" x 50' EPA Compliant Outboard Hose

This outboard fuel line hose features advanced fuel and age-resistant formulations with a unique barrier liner, preventing fuel from directly contacting rubber. This design significantly minimizes fuel permeation and protects against the degradation caused by ethanol, making it crucial as higher ethanol blends become more common.

Key Features:

• Exceptional resistance to fuel permeation, aging, heat, cold, and ozone
• Flexible with excellent fitting retention for ease of use
• Compatible with gasoline (including ethanol blends up to E85) and diesel (including biodiesel blends up to 100%)
• Meets EPA and CARB standards for low permeation Type B1-15
• NMMA Type Accepted & CE certified for quality assurance

Applications:

• Designed for marine fuel distribution, return, vent, and transfer
• Compatible with all marine fuels, including gasoline, alcohol blends, diesel, and biodiesel

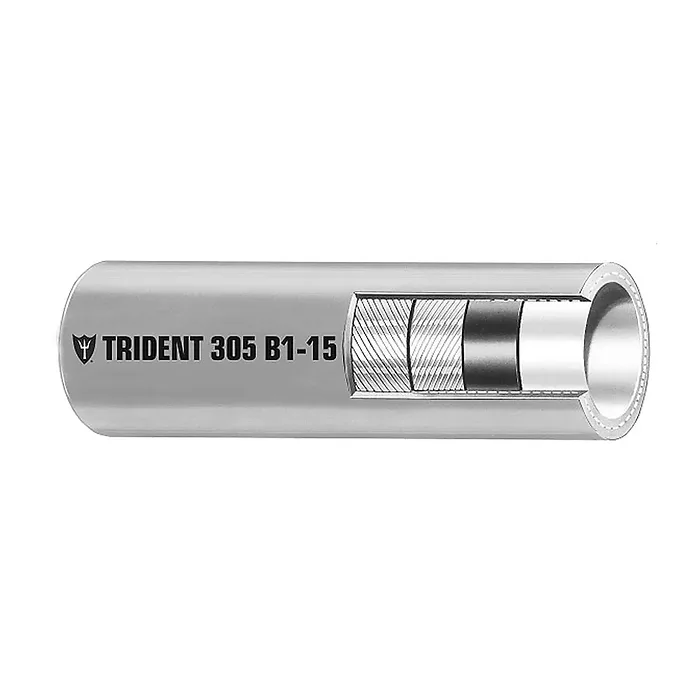

Construction Details:

• Tube: Fluoroplastic internal barrier for enhanced protection
• Cover: Durable gray CPE rubber for outdoor resilience
• Reinforcement: Constructed with 2-spiral polyester plies for added strength
• Temperature Range: -20°F to 212°F (-28°C to 100°C)
• Length: 50 feet (15 meters) boxed for convenient packaging

Specifications:

• Inner Diameter: 5/16" (7.92 mm)
• Outer Diameter: 0.500" (12.7 mm)
• Burst Pressure: 175 psi (1.21 mpa)
• Working Pressure: 35 psi (0.24 mpa)
• Bend Radius: 2.5" (63.5 mm)
• Weight: 7.8 lb/100 ft. (0.116 kg/m)
• Permeation Rate: 5.0 (Standard is 15g/m²/24hrs CE10)

*The #305 series exceeds ABYC H-24, SAE J1527, ISO 8469 B1, USCG Type B1-15 standards.
