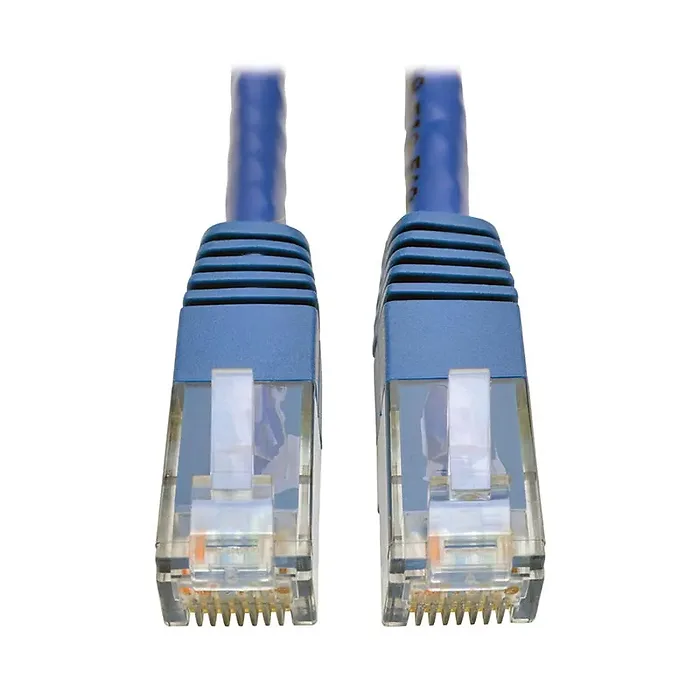

The N200-020-BL Cat6 Gigabit Molded Patch Cable (M/M) ensures ultra-fast performance throughout your Cat5/5e/6 network application. It connects high-speed network components like computers, printers, video game systems, Blu-ray players, copy machines, routers and modems in a home or office Cat5/5e/6 application.This 20-ft. (6.09 m) blue cable is designed for 1000Base-T (1 Gbps Ethernet), 10/100Base-T (Ethernet), 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice, Token Ring Type 3 and EIA/TIA applications. Manufactured from 24 AWG 4-pair stranded UTP with a staggered-pin plug design and male RJ45 connectors, each cable provides high-speed connections up to 550 MHz/1 Gbps and flawless signal delivery, while keeping near-end crosstalk levels to a minimum.The N200-020-BL is constructed of top-quality materials for long life and durability. Corrosion-resistant gold-plated copper contacts provide maximum conductivity and minimize data loss. Integral strain relief gives the cable extra flexibility, reduces stress, and helps the cable and connectors move freely without cracking. Meets most current industry standards, including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (category 6 draft 11).
UPC Code: 037332194275
Technology: Cat6; PoE
Product Overview: Cat6 Gigabit Blue Patch Cable RJ45 - 20'
Power Over Cable (PoC) Support: No
Cable Jacket Color: Blue
Cable Jacket Material: PVC
Cable Jacket Rating: CM
Cable Shielding: UTP
Cable Outer Diameter (OD): 6.0 mm
Number of Conductors: 4 Pair
Conductor Material: Stranded Copper
Conductor Gauge: 24 AWG
Cable Length (ft.): 20
Cable Length (in.): 240
Shipping Dimensions (hwd / in.): 8.00 x 10.00 x 0.50
Shipping Weight (lbs.): 0.65
Unit Dimensions (hwd / in.): 0.000 x 0.000 x 0.000
Operating Temperature Range: 14? to 104?F (-10? to 40?C)
Storage Temperature Range: 5? to 122?F (-15? to 50?C)
Operating Humidity Range: 0% to 90% RH, Non-Condensing
Storage Humidity Range: 0% to 90% RH, Non-Condensing
