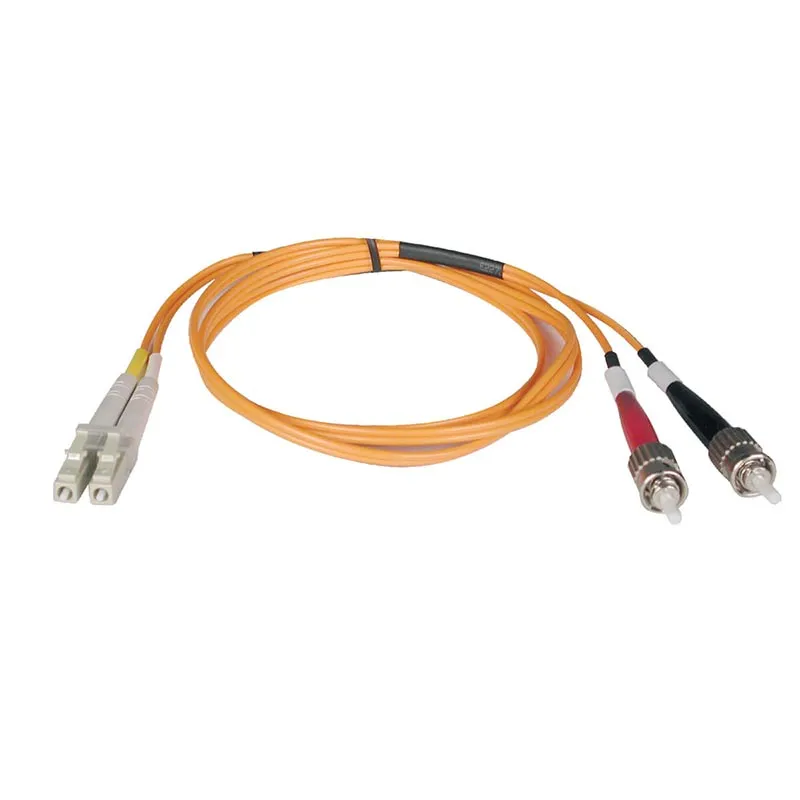

Eaton N518-02M Tripp Lite 2m Duplex Multimode Fiber 50125 Patch Cable Lcst 6ft
by EATON TRIPP LITE SERIES CONNECTIVIT

• ☆☆☆☆☆
• 1 customer reviews (jump to section)

In Stock.
only 9 left in stock order soon

Premium PVC multimode patch cables

• UPC Code: 037332130327
• Technology: Multimode
• Optical Mode: OM2
• Cable Jacket Color: Orange
• Connector Color: Gray; Red; Black
• Cable Jacket Material: LSZH
• Cable Jacket Rating: OFNR
• Clad Diameter (microns): 125
• Core Diameter (microns): 50
• Number of Fibers: 2
• Cable Length (ft.): 6.6
• Cable Length (in.): 78.7
• Minimum Bend Radius: 20 mm (Dynamic); 10 mm (Static)
• Shipping Dimensions (hwd / in.): 0.10 x 5.70 x 6.40
• Shipping Weight (lbs.): 0.05
• Fiber Cable Length: 2M (6.6 ft)
• Operating Temperature Range: -4? to 140?F (-20? to 60?C)
• Storage Temperature Range: -4? to 140?F (-20? to 60?C)
• Operating Humidity Range: 5% to 85% RH, Non-Condensing
• Storage Humidity Range: 35% to 65% RH, Non-Condensing
• Network Compatibility: 1 Gbps (Gigabit); 10 Gbps; 25 Gbps
• Attenuation @ 850NM: 3.0 dB/km
• Insertion Loss: LC ≤ 0.20 dB; ST ≤ 0.20 dB
• Side A - Connector 1: LC DUPLEX (MALE)
• Side B - Connector 1: ST DUPLEX (MALE)
• Endface Polish: PC
• Product Compliance: RoHS; REACH
• Product Warranty Period (Worldwide): Lifetime limited warranty
