Siig CE-H26D11-S1 True 4k Performance Hdmi Switcher Or Splitter Edid Downscaling 4k60hz To 1080p6
by Siig

Specifications

Compliant with HDMI 2.0, HDCP 2.2/1.4
Video bandwidth:
18Gbps
Resolution:
480p/720p/1080i/1080p/ HDR 4K2K at 60Hz (4:2:0 10bit) / 4K2K at 60Hz (YUV 4:4:4 8bit)
Audio:
LPCM up to 7.1, Dolby Atmos and DTS-X (Copy EDID)
Down scaling:
4K at 60Hz (YUV 4:4:4) to 1080p at 60Hz. Note: 4K at 60Hz (YUV 4:2:2) down scaling is not supported
Display mode (output):
Mirror
Product:
Color: Black
Housing: Metal
Connectors:
2x 19-Pin, HDMI, Type A, Female, Input
2x 19-pin, HDMI, Type A, Female, Output
1x Push button for Switch function and EDID Selection
1x 5-pin Micro USB, Female, Power and F/W update
1x 3.5mm jack, Stereo audio, Output
EDID management (controlled by the included Remote Control):
Auto EDID: 4K at 60Hz
Copy EDID: The EDID of the monitor connected to HDMI Out 1 is used for the connected displays
Mixed EDID: The EDID of the monitor with the lowest resolution/audio capability is used for the connected displays
Power Adapter:
Input: 100-240VAC, 50/60 Hz
Output: 5V/1A
Environmental conditions:
Operating temperature: 23 to 104 degrees F
Storage temperature: -4 to 140 degrees F
Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
Package contents

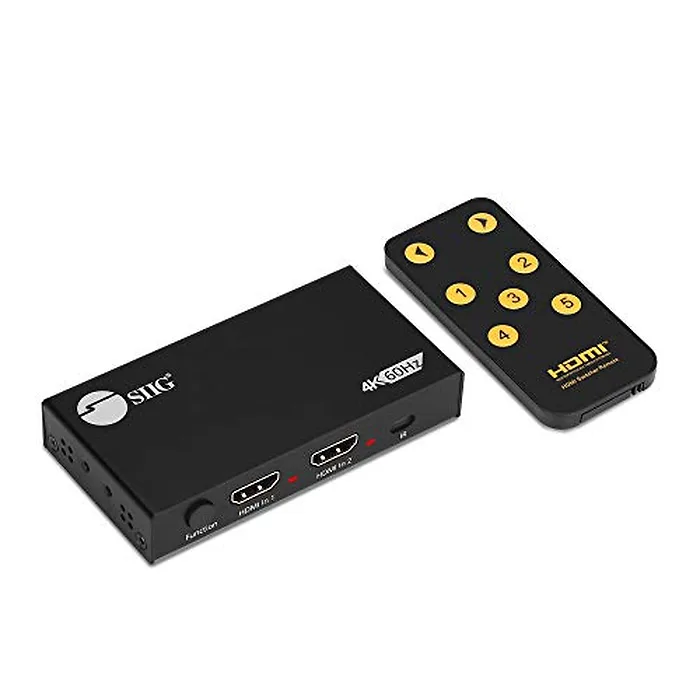

2-Port HDMI 2.0 4K HDR Splitter / Switcher
Power adapter
USB A to Micro-B cable
Remote control
Mounting kit
Quick Start Guide
Item Dimension (L"x W"x H")
4 x 1 x 3
Weight
1.00 LB
Warranty Information
2 Years
