Veratron N03-320-264 100900°c Pyrometer Sensor For Engine Monitoring
by Veratron
| Price: | $215.08 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
only 4 left in stock order soon

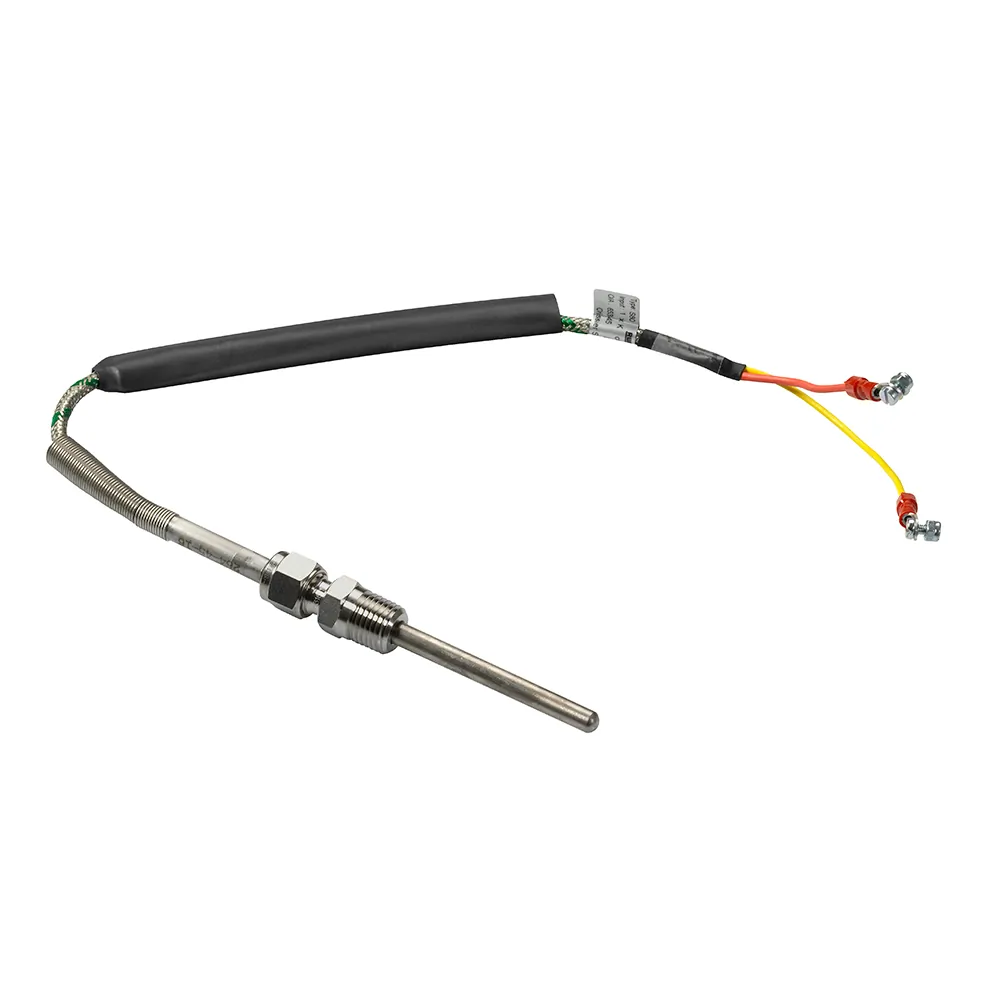

Veratron 100-900°C Pyrometer Sensor for Engine Monitoring
Designed to support optimized performance, this pyrometer sensor is ideal for monitoring exhaust gas temperatures in various engine applications. It operates in conjunction with the LinkUp Gateway Module.
Key Features:
- Easy plug-and-play installation for quick setup
- NMEA 2000® compliant for industry-standard communication
- Durable design for reliable engine monitoring
Specifications
- Supports temperature mediums such as exhaust gas, coolant, and engine oil
- Input Signal via LIN bus
- Wide operating voltage range: 6 - 24 VDC
- Thermocoupler element for accurate measurements
- Measurement range from 100-900°C (250-1650°F)
- Analog communication and 0-37 mV TC signal output
- Connector type: Ring Tongue
- Adjustable sender element length (max. 60 mm)
- Sensor diameter: 6 mm
- Torque specification: 20 Nm
