Veratron A2C1746030001 Deeppipe Level Sensor 160mm 240 To 33 Ohm
by Veratron
| Price: | $27.97 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
only 2 left in stock order soon

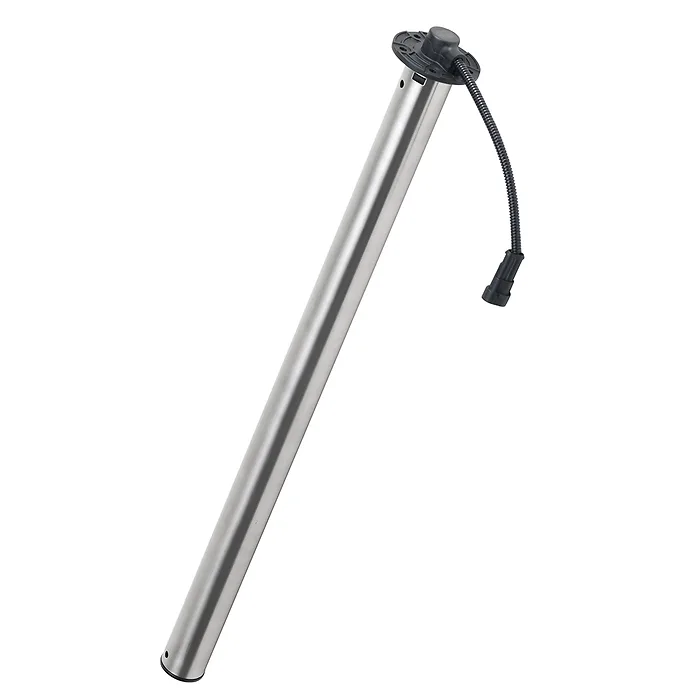

Veratron Deep-Pipe Level Sensor - 160mm - 240 to 33 OHM
The Veratron Deep-Pipe Level Sensor is designed specifically for accurate measurement in fuel tanks. With a robust 38 mm diameter vertical tube that houses a float mechanism, this sensor provides reliable liquid level readings. To combat fuel sloshing, small openings at both the top and bottom of the tube ensure the float position remains stable even in challenging sea conditions.
Available in lengths from 150 mm to 1200 mm, it is crucial to select a sensor length that fits at least 4 mm above the base of your fuel tank upon installation.
Features:
Specifications
- Durable stainless steel tubular sensor
- Compatible with fuel types: Oil, Petroleum, Diesel, Gasoline, and Water
- Length of sensor: 160 mm
- TE Superseal Connector 2-Pole with IP67 rating
- Wide operating temperature range: -25°C to 65°C (-13°F to 149°F)
- Operating voltage range: 6 to 24 VDC
- Integrated compensation chamber
- Equipped with a 5-hole SAE flange (54mm PA66 GF30)
- 200 mm wiring harness included
- Signal range of 240 to 33 OHM
- Waterproof with IP67 protection
- Analog communication signal
