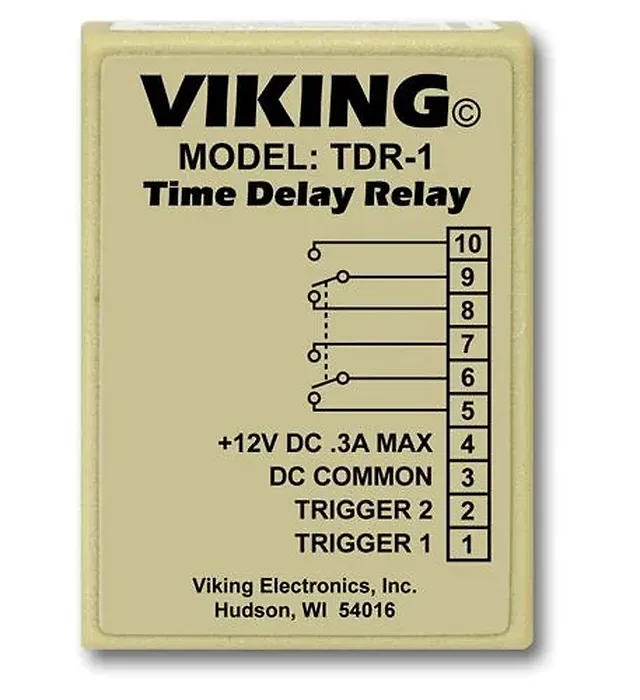

Viking TDR-1 Viking Time Delay Relay
by Viking Electronics
| Price: | $57.00 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
only 1 left in stock order soon
Normally Open or Normally Closed Relays programmable from 0.5 seconds to 30 seconds. Initiate from a momentary or maintained contact * Can flash (one second on/off) Power Supply Included.
Specifications
- Viking time delay relay device- Time delay mode: programmable to produce one of 8 closure times
- Trigger 1 input can be programmed to accept either a dry contact closure or positive/negative going logic level voltage.
- Delay on Operate mode delays an input trigger by a programmed interval
- 8 Delay times available, from 1 to 30 seconds
- 1 Double pole, double throw relay output
- 8 Selectable closure times
- DIP switch programmable
- Accepts positive or negative going logic level voltage or contact
- Selectable time delay
- Screw terminal connections
- LED relay status indicator
