Wichard 01345 Wichard 10mm Selflocking Bow Shackle With Allen Head Pin
by Wichard Marine
| Price: | $82.79 |
| MFG Part: |
| Condition: |
Currently Unavailable.

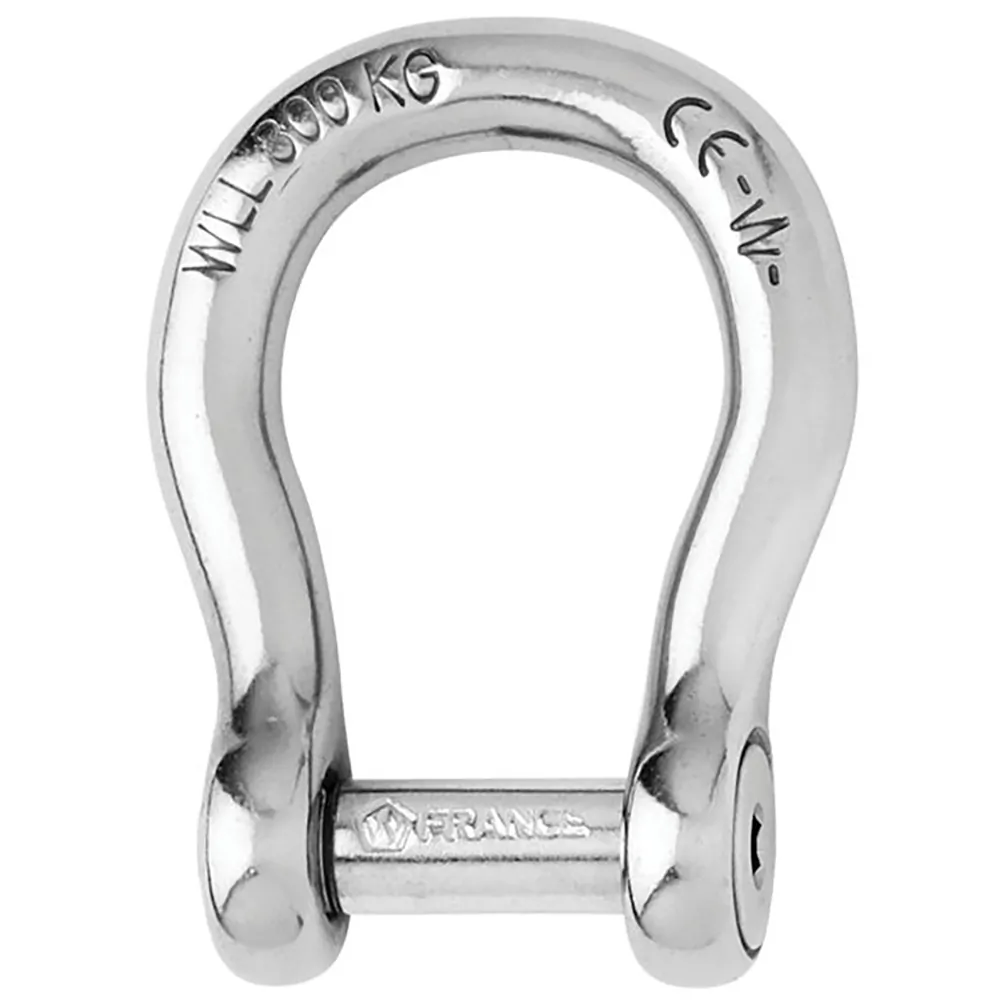

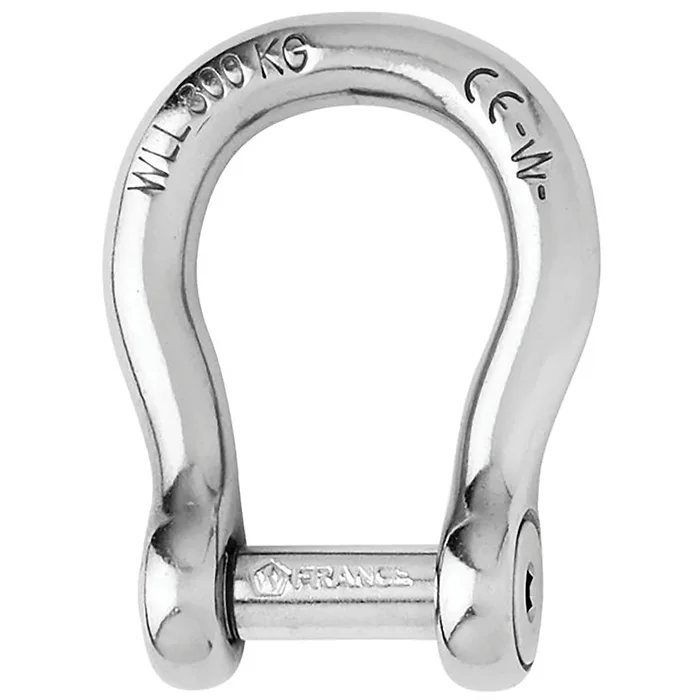

Wichard 10mm Self-Locking Bow Shackle with Allen Head Pin
This self-locking bow shackle is designed for enhanced safety and reliability in industrial applications. Made from high-quality 316L stainless steel, it features an allen head pin that securely locks into place without protruding, reducing the risk of snagging and loosening from vibrations.
Applications:
- Ideal for linking chain and anchor systems
- Protects sails when used on halyards
- Perfect for environments where clutter is minimized
- Requires ample space for operation
Specifications:
- Working Load: 3170 lb (1440 kg)
- Working Load Limit (WLL): 1890 lb (860 kg)
- Breaking Load: 9470 lb (4300 kg)
- Weight: 0.293 lb (133 g)
Dimensions:
- A: 1 27/32" (47 mm)
- B: 25/32" (20 mm)
- C: 25/64" (10 mm)
- D: 25/32" (20 mm)
- D diameter: 25/64" (10 mm)
- E: 23/64" (9 mm)
- F: 1 17/64" (32 mm)
- M: 2 3/064" (52 mm)
Specifications
- Self-locking design for enhanced security
- Constructed from durable 316L stainless steel
- Allen head pin prevents snagging and loosening
- Exceptional working and breaking loads for reliability
- CE marked for compliance and safety
