Wichard 01406 Wichard Captive Pin D Shackle Diameter 12mm 1532"
by Wichard Marine

• ☆☆☆☆☆
• 2 customer reviews (jump to section)

In Stock.
only 4 left in stock order soon

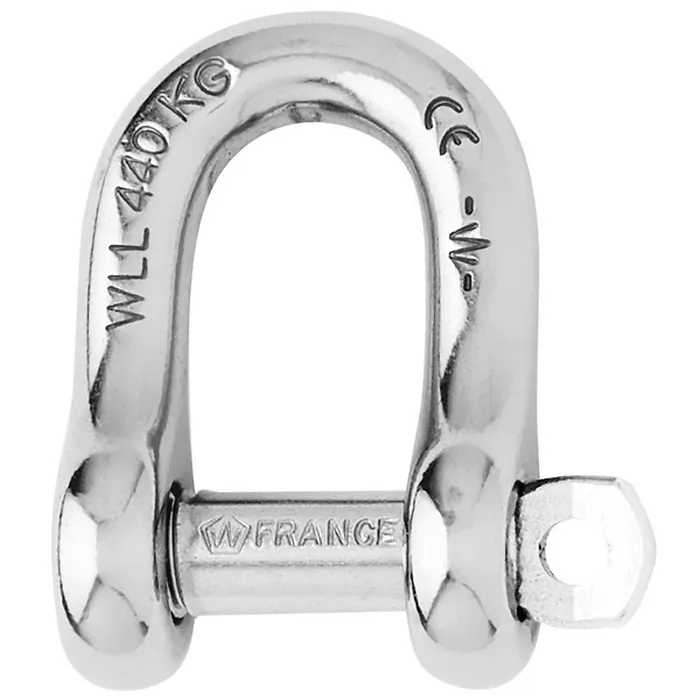

Captive Pin D Shackle - Diameter 12mm - 15/32"

Features:

• Captive pin "D" shackle forged in grade 316L stainless steel
• The pin is connected to the body at all times even when opened
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads

Applications:

• Standard applications of shackle
• Attachment applications: blocks, head...

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 4580
• WLL (lb) 3080
• Breaking load (lb) 15430
• Weight (lb) 0.414

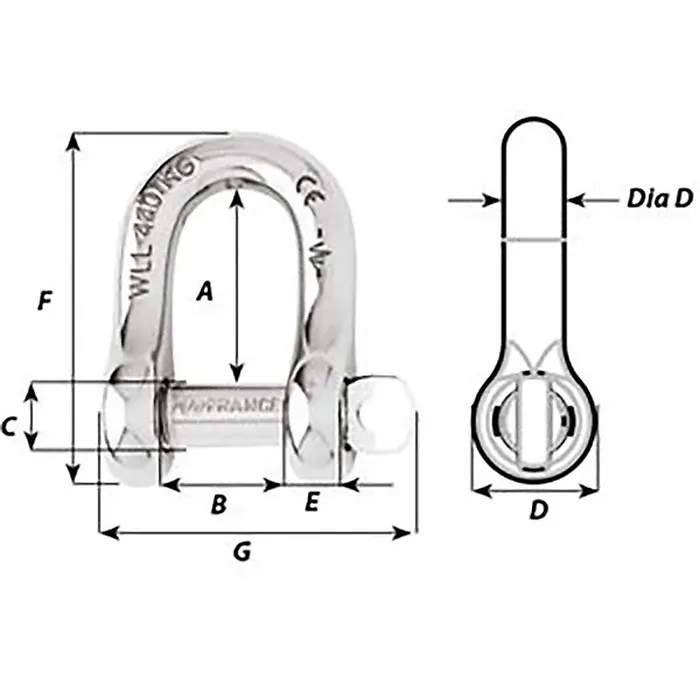

Dimensions (see 2nd image):

• A (inch) 1-17/32"
• B (inch) 15/16"
• C (inch) 33/64"
• D (inch) 15/16"
• D diameter (inch) 15/32"
• E (inch) 7/16"
• F (inch) 2-23/32"
• G (inch) 2-7/16"
