Wichard 22517W Wichard Frx25 Friction Ring 25mm 6364"
by Wichard Marine

• ☆☆☆☆☆
• 1 customer reviews (jump to section)

In Stock.

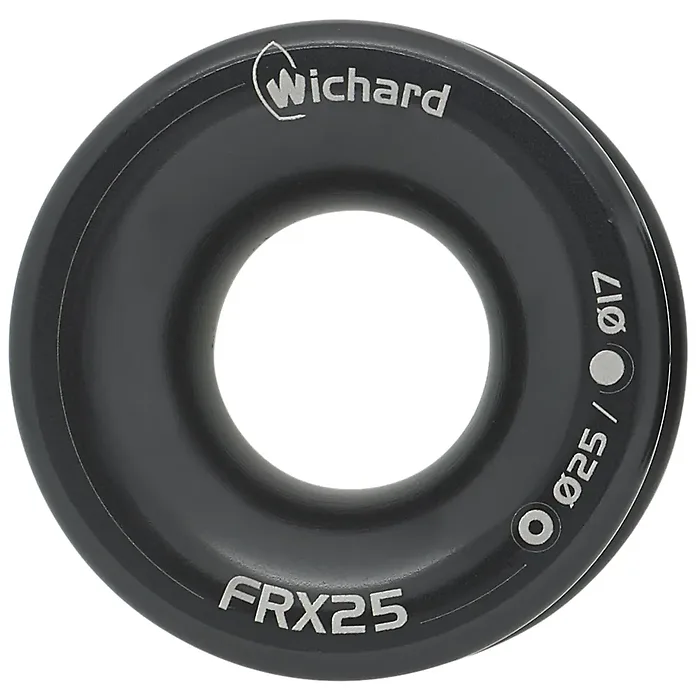

FRX25 Friction Ring - 25mm (63/64")

Features:

• Efficient and light
• FRX Wichard thimbles are efficient, light, and reliable
• Very strong and can be used for heavy loads and semi-static lines
• FRX thimbles are designed to make your lines run smoothly with minimum wear
• They are hard anodized (50 microns) for a longer lifespan

Applications:

• Mast-foot block, barber-hauler, inhauler, loop, thimble, lazy jack, running backstay, tackle, and more

Specifications:

• Materials: Anodized aluminium
• Working load: (lb) 11020 / (kg) 5000
• Weight: (lb) 0.126 / (g) 57

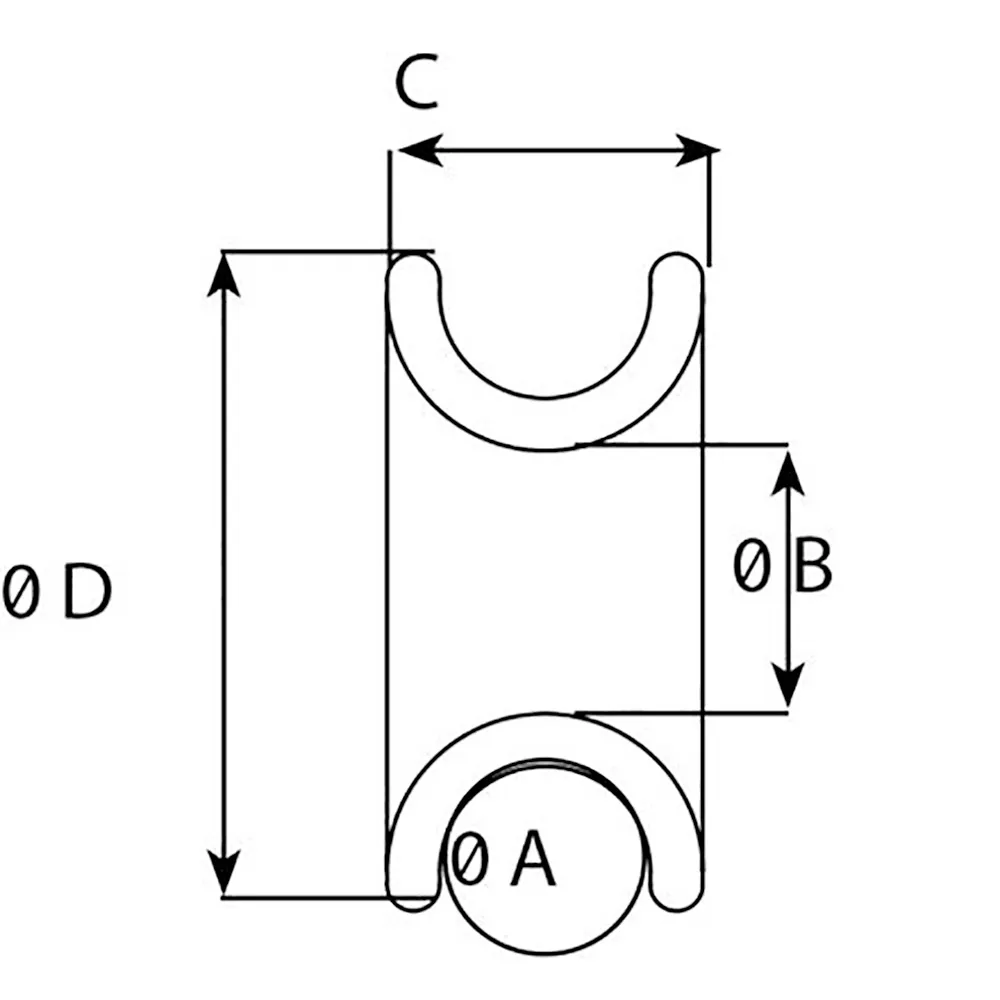

• A: (inch) 43/64" / (mm) 17
• B: (inch) 63/64" / (mm) 25
• C: (inch) 63/64" / (mm) 25
• D diameter: (inch) 2 23/64" / (mm) 60

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
