Wichard 02777 Wichard Hr Quick Release Snap Shackle 145mm Length
by Wichard Marine
| Price: | $370.08 |
| MFG Part: |
| Condition: |
Currently Unavailable.

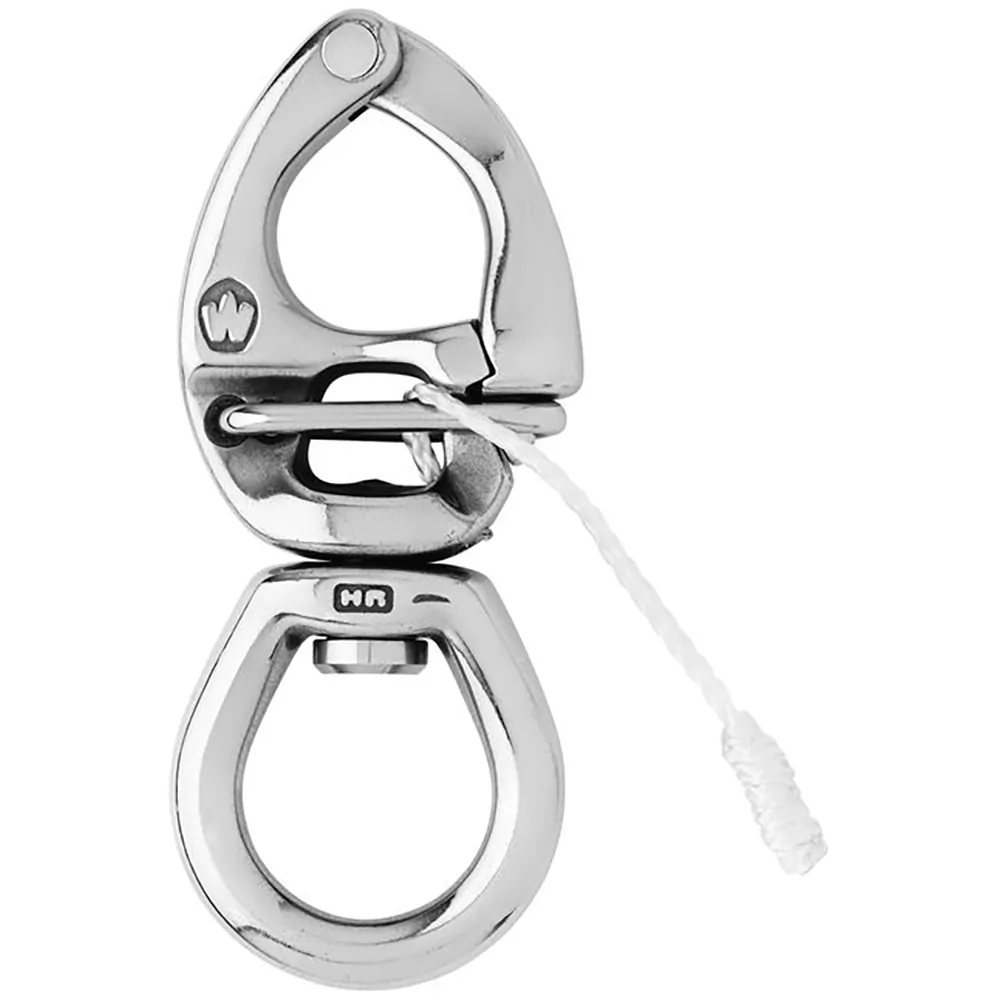

HR Quick Release Snap Shackle - 145mm Length
Overview: This quick release snap shackle is designed for ease of use and maximum strength, making it ideal for various nautical applications.
Key Features:
- HR forged (17.4 PH) stainless steel for durability
- Easy opening by simply pulling the lanyard
- Versatile design suitable for attaching multiple lines
- Exceptional working and breaking loads
- Free rotation capability due to integrated swivel
Applications:
- Ideal for spinnaker operations
- Perfect for attaching several lines such as spinnaker sheets
Specifications:
- Working load: 6170 lb (2800 kg)
- Breaking load: 13880 lb (6300 kg)
- Weight: 0.873 lb (396 g)
Dimensions:
- A: 1 3/16" (30 mm)
- B: 1 25/64" (35.5 mm)
- Length: 5 45/64" (145 mm)
Important Notes:
- Working Load Limit (WLL) based on a safety factor of 5 times the breaking load
- High Resistance (HR) construction
*Sold as an Individual
Specifications
- Constructed from HR forged 17.4 PH stainless steel
- Quick-release mechanism for easy operation
- Designed for multiple line attachments
- Superior working and breaking load capacities
- Incorporates a swivel for unobstructed rotation
