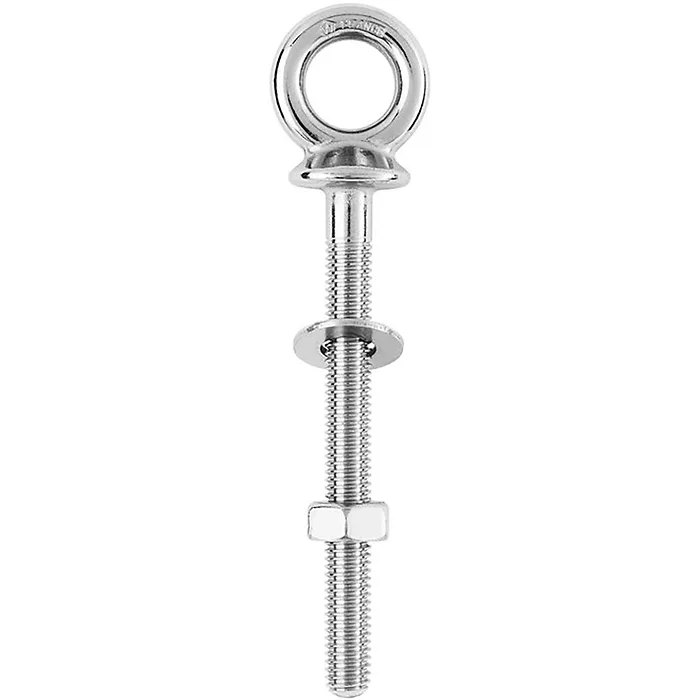

Wichard M10 x 150mm Stainless Steel Eye Bolt - 100mm Length

Overview:

This high-quality M10 x 150mm eye bolt is designed for a variety of fastening applications, crafted from 316L stainless steel for superior strength and durability. Its versatile design makes it ideal for both nautical and industrial uses.

Features:

• Single piece forged construction for enhanced strength
• Exceptional working and breaking load limits
• Various sizes available to suit different needs
• Maximum tightening torque of 36 Nm

Applications:

• Fastening in marine environments
• Towing operations
• Attachment for waterskiing lines

Specifications:

• Material: 316L stainless steel
• Working load: 3520 lb (1600 kg)
• Breaking load: 5950 lb (2700 kg)
• Weight: 0.216 lb (98 g)

Dimensions:

• M10 x 150 mm (A)
• 16 mm (B)
• 36 mm (C)
• 7 mm (D)
• 25 mm (E)
• 100 mm (F)
• 88 mm (G)

Note: Working Load (WL) is intended for nautical applications, while Working Load Limit (WLL) is for industrial use only with a safety factor of 5 applied to the breaking load.

Sold individually
