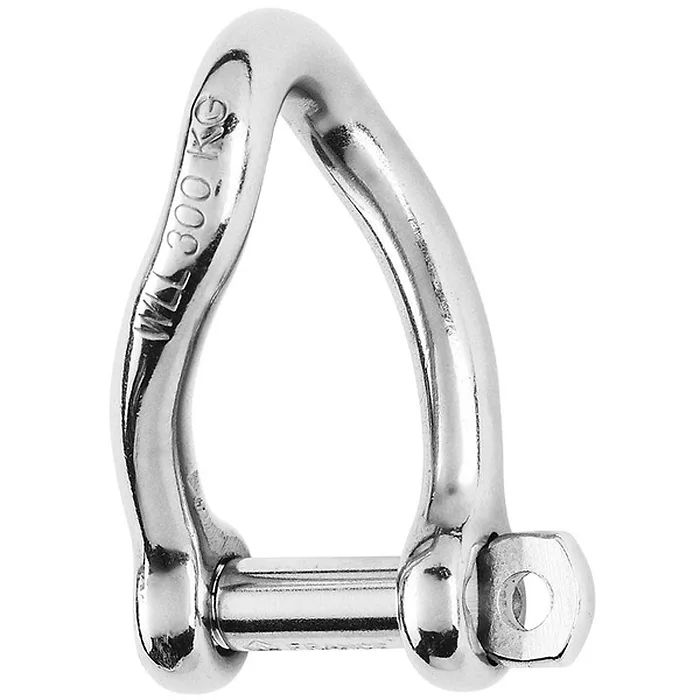

Wichard 01224 Wichard Selflocking Twisted Shackle Diameter 8mm 516"
by Wichard Marine
| Price: | $47.51 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
only 3 left in stock order soon
Self-Locking Twisted Shackle - Diameter 8mm - 5/16"
Features:
- Self-locking twisted shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
Applications:
- Perfect for application where a 90° angle twist setup is required
- Often used to attach an unarticulated part (block on a rail) or on purchases
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 2200
- Breaking load (lb) 6610
- Weight (lb) 0.148

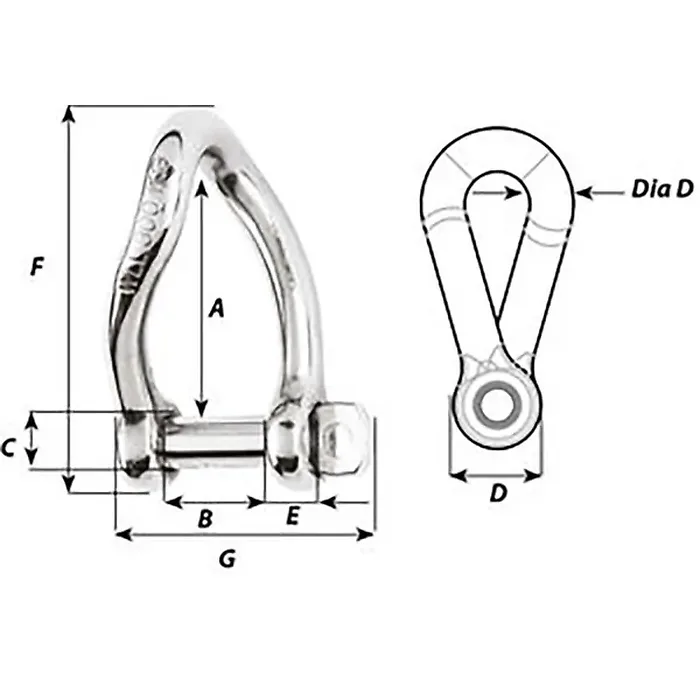

Dimensions (see 2nd image):
- A (inch)1-37/64"
- B (inch) 5/8"
- C (inch) 5/16"
- D (inch) 5/8"
- D diameter (inch) 5/16"
- E (inch) 9/32"
- F (inch) 2-23/64"
Specifications
Self-Locking Twisted Shackle - Diameter 8mm - 5/16"
Features:
- Self-locking twisted shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
Applications:
- Perfect for application where a 90° angle twist setup is required
- Often used to attach an unarticulated part (block on a rail) or on purchases
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 2200
- Breaking load (lb) 6610
- Weight (lb) 0.148
Dimensions (see 2nd image):
- A (inch)1-37/64"
- B (inch) 5/8"
- C (inch) 5/16"
- D (inch) 5/8"
- D diameter (inch) 5/16"
- E (inch) 9/32"
- F (inch) 2-23/64"
