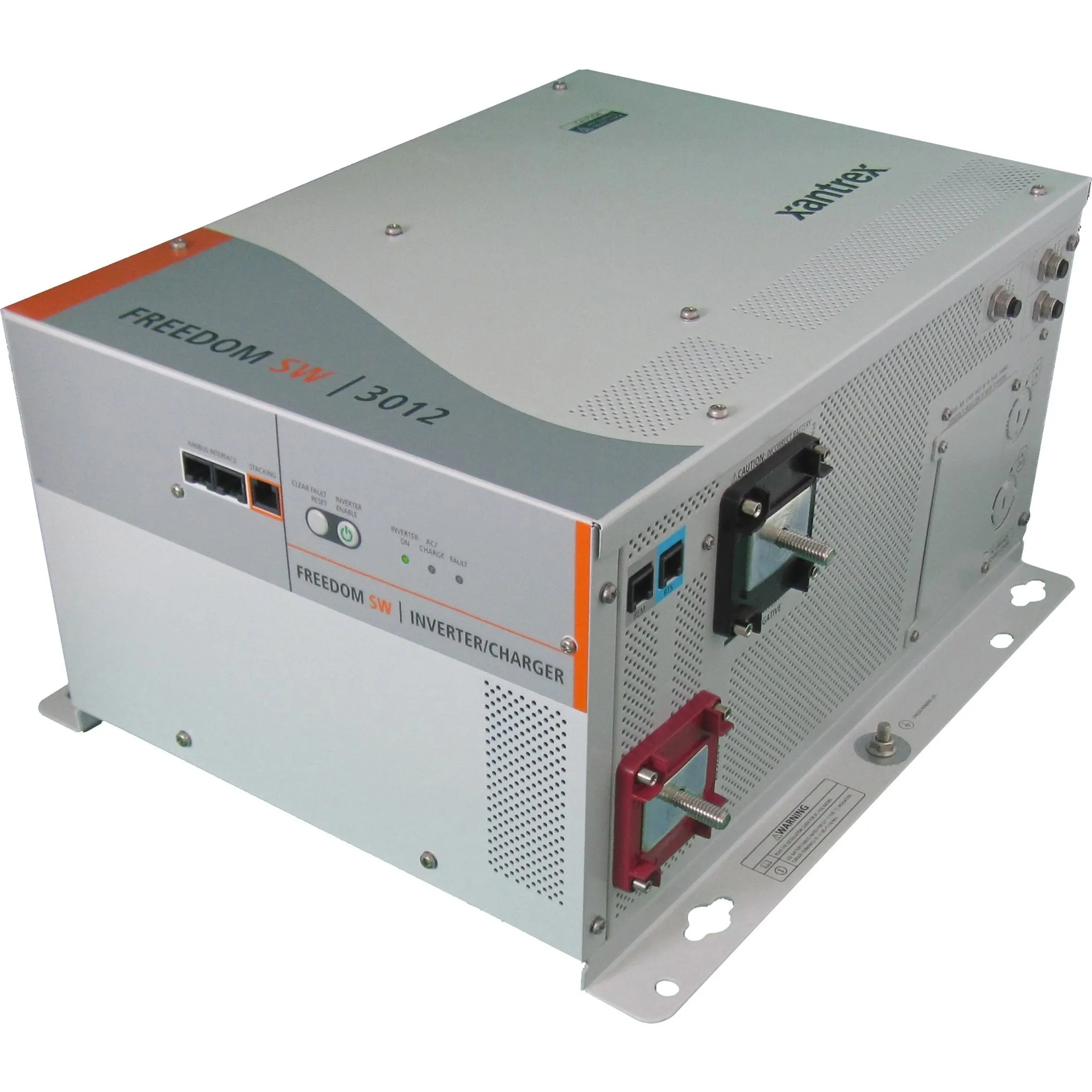

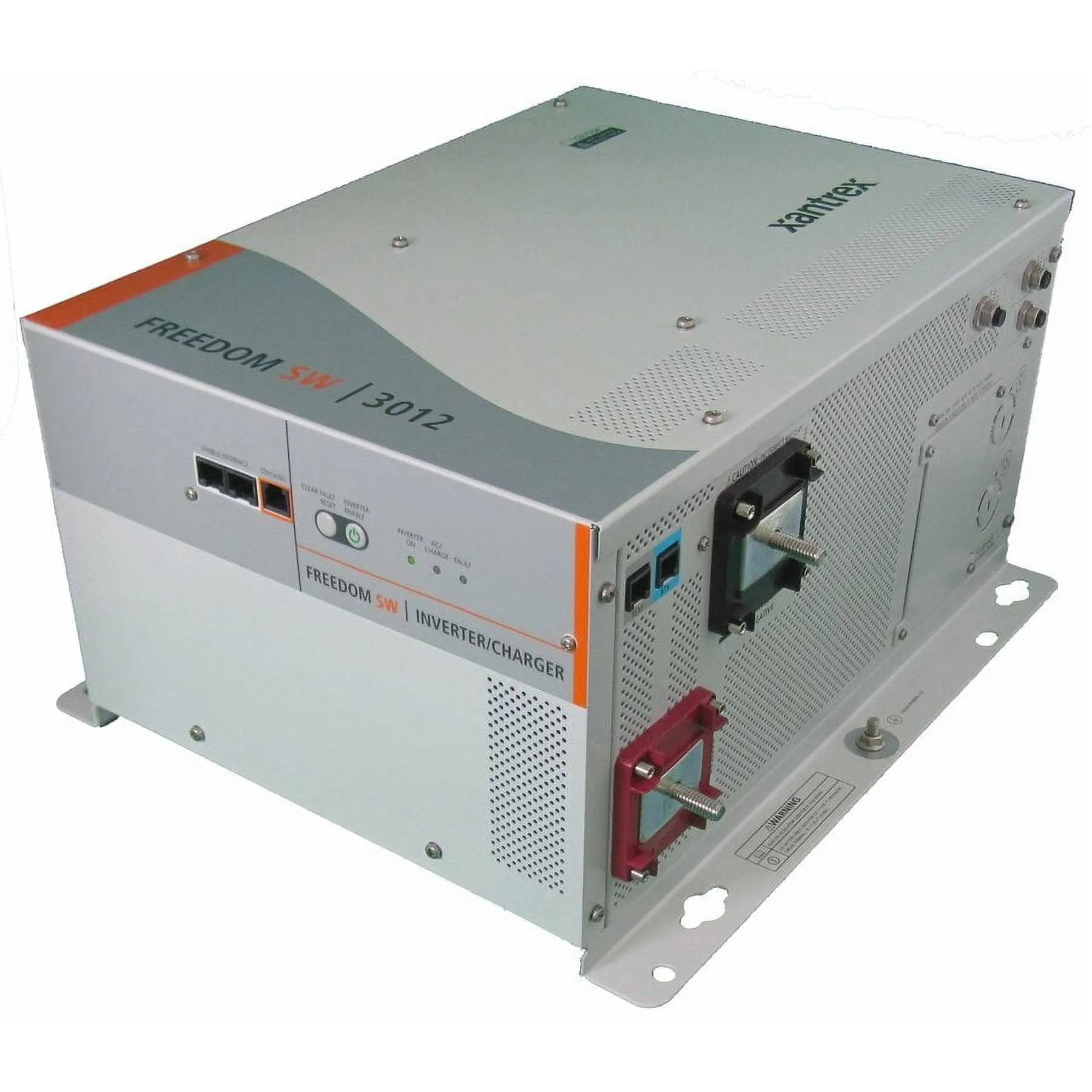

Xantrex 815-3012 Freedom Sw3012 12v 3000w Inverter 150a Charger
by Xantrex
| Price: | $2199.45 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
only 6 left in stock order soon
Xantrex FREEDOM SW 3012 - 12V Inverter Charger
Model: 815-3012- Stackable in parallel or series
- 200% surge for 5s for motor loads
- True sine wave to support sensitive electronics
- Generator support mode
- Xanbus Enabled
True sine wave Inverter. 200% power surge for 5s to support motor loads. Generator support mode to supplement generator when AC loads exceed generator's capacity. Stackable in parallel and series. Xanbus EnabledTM to work with Freedom SW Combox accessory to provide data logs and system control, accessible from your smartphone or tablet.
Freedom SW series from Xantrex are the most advanced and capable inverter chargers in the mobile market. Available in 3000 W with 150 A charger and 2000 W with 100 A charger, these units are packed with features like "Generator Support Mode" which enables the Freedom SW to assist a generator when AC loads exceed the generator's capacity. They are also stackable for extra power and with the ComBox accessory, data logs and system control can be pushed to your tablet or phone! If you are looking for a unit for your air conditioning, this is the one! With a powerful long duration 2x surge and other industry leading features, the Freedom SW series will handle demanding power requirements.
Specifications| 3000 W | |
| 3000 W | 6000 W |
| Peak output current | 75 A |
| Output frequency | 60 Hz +/- 0.2 Hz |
| Output voltage | 120 Vac |
| 120 Vac | True sine wave |
| Optimal efficiency | 94% |
| No-load power draw (inverting) | <1.5 Adc |
| Input DC voltage range | Input DC voltage range |
| AC connections | Split phase in / Dual out |
| Electrical Specifications - Battery Charger | |
| Output current (continuous at 25 degC) | 150 A |
| Output voltage | 12 Vdc |
| Output voltage range | 5 - 16 Vdc |
| Charge control | 3 stage with manual equalize |
| Charge temperature compensation | Remote battery sensor (included) |
| Optmial Efficiency | > 85% |
| AC input power factor (maximum charge) | 0.98 typical |
| Input current (for maximum charging) | 24 A rms nominal |
| Input AC voltage | 120 Vac |
| Input AC voltage range | 85 - 140 Vac |
| Dead battery charge | > 5 Vdc |
| General Specifications | |
| Compatible battery types | LiFePO4 / Flooded / gel / AGM* |
| Transfer relay rating | 2 legs at 30 A each |
| Transfer time (AC to inverter and inverter to AC) | < 20 ms |
| Optimal operating temperature range | - 4 degF to 140 degF (- 20 degC to 60 degC) |
| Storage ambient temperature range | - 40 degF to 185 degF (- 40 degC to 85 degC) |
| L x W x H | 7.75 x 13.5 x 15.25 in (197 x 343 x 387 mm) |
| d | |
What's in the Box:
- Freedom SW 3000
- Battery Temperature Sensor (BTS)
- DC terminal covers (one red, one black) with two sets of #6-32 screws
- Two Xanbus network terminators
- Two sets of 5/16 in-18 nuts and washers for the DC terminals
- Owner's and Installation Guides
