Xantrex CW42935 Freedom Sw3012 12v 3000w Invertercharger
by Xantrex
| Price: | $2157.58 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.

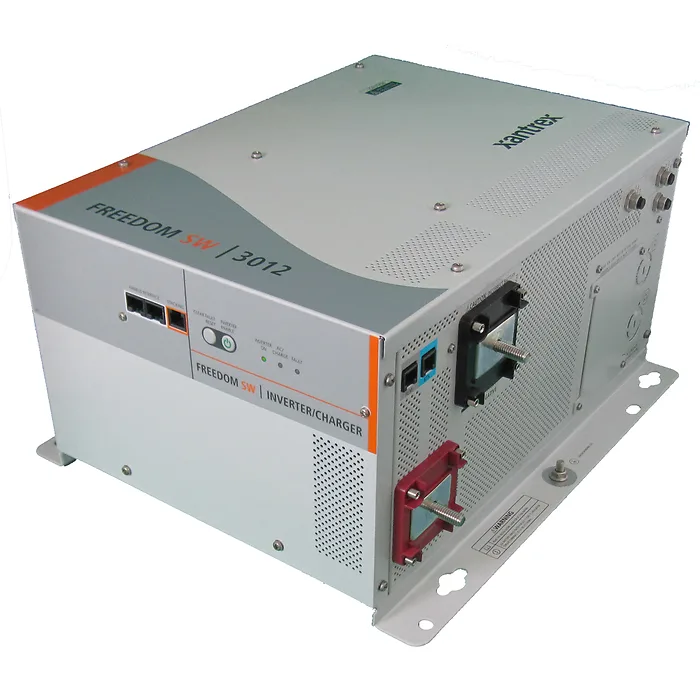

Xantrex Freedom SW3012 Inverter/Charger
815-3012
12V, 3000W - 120 Vac / 60 Hz
The NEW GENERATION Freedom SW series represents highly sophisticated and advanced inverter/chargers available in 3000 W with a 150 A charger. The second generation 3000 watt model has been completely redesigned to include many of the same great features found in its high power counterpart. A key feature enhancement is 'Generator Support Mode' which enables the Freedom SW to supplement a generator when AC loads exceed the generator's capacity. The new generation models also feature improved AC transfer/AC input detection time, providing the ability to transfer AC loads to batteries in less than 10 milliseconds when the incoming grid or generator power is lost. Connected loads are almost unable to feel the power transition due to this quick transfer time. Both models are approved to UL458 with marine supplement, CSA, ABYC, and FCC, Class B requirements.
Application
Designed for a variety of mobile applications such as commercial, emergency and recreational vehicles, marine vessels, construction, and military equipment.
Specifications
- Pure sine wave output to operate sensitive electronics
- Advanced configuration options for customized applications
- Parallel and series stacking capability
- Built-in transfer switch automatically transfers between inverter power and incoming AC power
- Power factor corrected, multi-stage charger for fast, efficient charging
- Temperature compensated charging for a variety of climate conditions
- Ignition lockout feature helps prevent unnecessary battery drain when the alternator is not providing power
- Wide operating temperature range: -4°F to 140°F (-20°C to 60°C)
- Conformal coated circuit boards for humid environments
- Dual input / Dual output AC interface for 3000 W model
- Ability to charge batteries drained to extremely low voltage
- Compatible with the Xantrex Automatic Generator Start (Part# 809-0915)
