Xantrex 84-2031-00 Linkpro Advanced Battery Monitor
by Xantrex
| Price: | $314.76 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
only 6 left in stock order soon

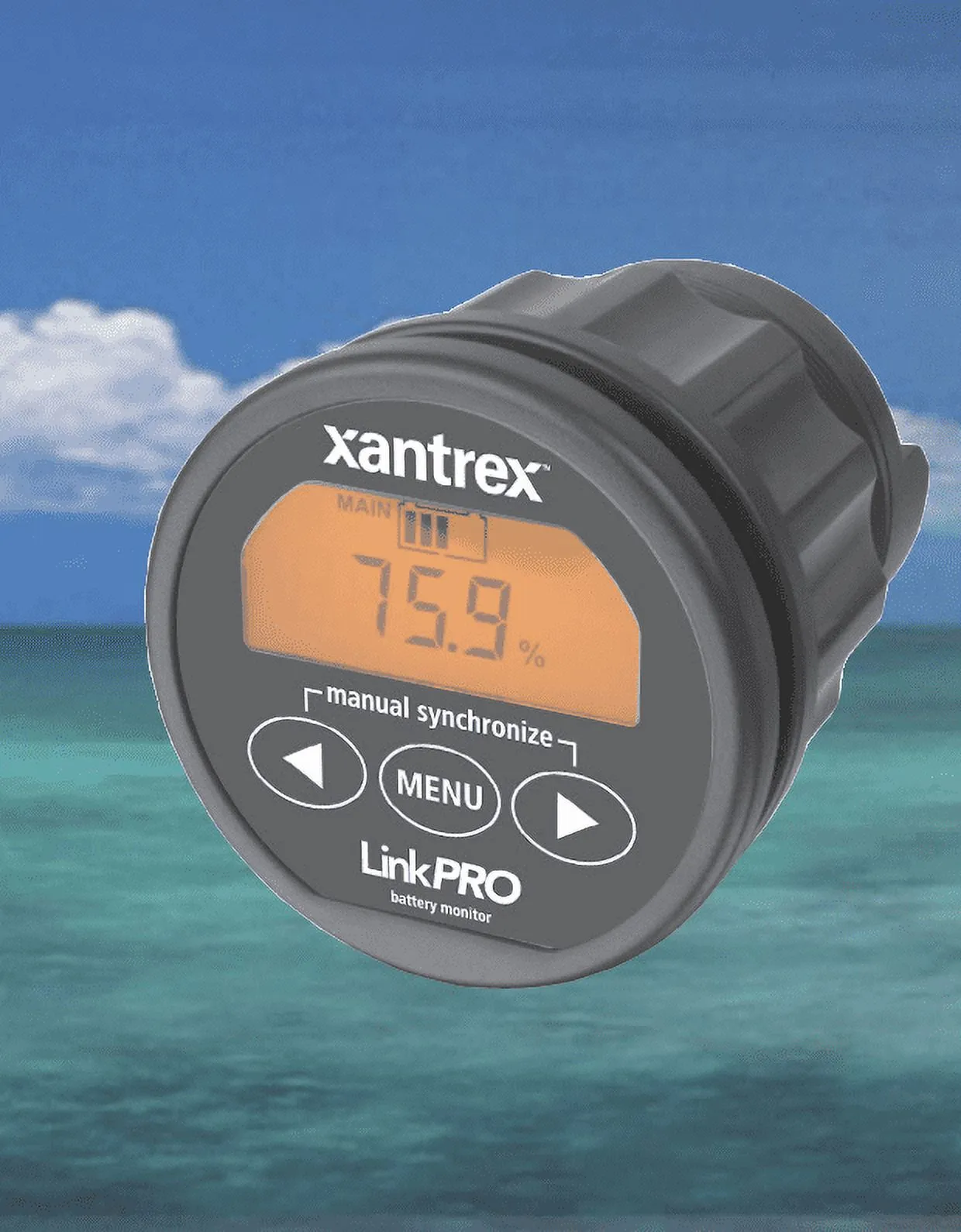

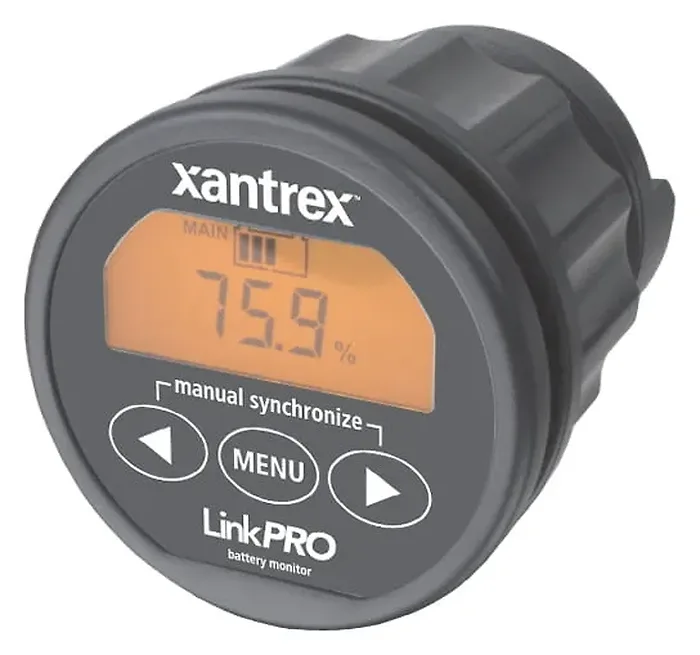

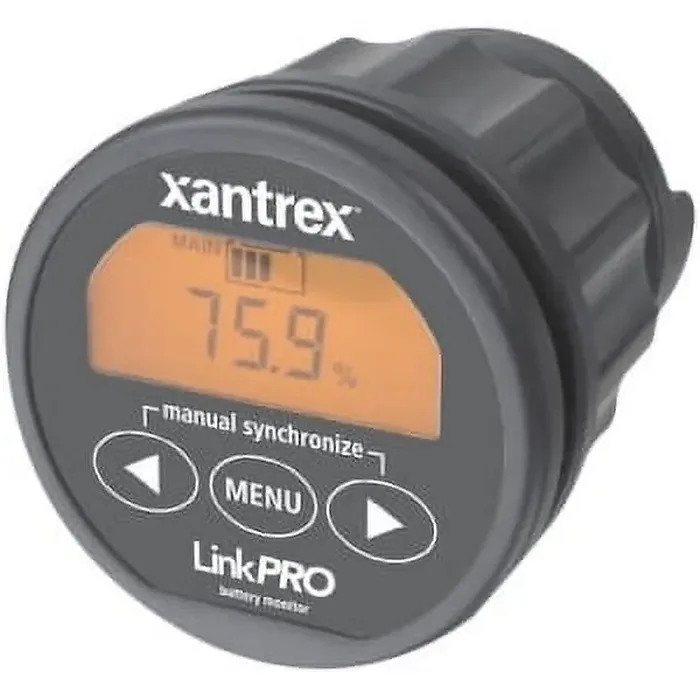

LinkPRO Advanced Battery Monitor
Comprehensive Battery Status Monitoring
Understanding the available energy in a battery involves complex factors such as age, discharge current, and temperature. With high-performance measuring circuits and sophisticated software algorithms, the LinkPRO accurately calculates the remaining battery capacity. It includes a shunt selection feature that allows it to measure currents up to 10,000 Amps.
The LinkPRO displays essential metrics including voltage, charge and discharge current, consumed amp hours, remaining battery capacity, and estimated time remaining for your battery bank. The device features a clear, backlit LCD display and an intuitive user interface, enabling easy access to all parameters with just a button press. Additionally, it supports a second battery input for monitoring voltage on an additional battery.
Equipped with an internal programmable alarm relay, the LinkPRO can trigger a generator when necessary or turn off devices when battery voltage exceeds preset limits.
Key Performance Features
Specifications
- Monitor battery bank like a fuel gauge
- Provides critical insights into battery status
- Displays voltage, current, consumed amp hours, and remaining capacity
- Supports two battery inputs
- Auto-sensing battery voltage inputs
- Large, backlit LCD display
- Quick nut mounting construction
- Programmable alarm relay
- Flexible shunt selection for system integration
- Splash-proof front panel
- 500 Amp shunt included
- CE and e-mark certified
- Displays estimated time remaining
- Communication/expansion port available
- Stores a variety of historical events in internal memory
- Advanced programmable alarm relay capabilities
- Input for battery temperature sensor
